Fluke 377 FC Non-Contact Voltage TRMS AC/DC Clamp Meters with iFlex

Fluke
SKU: FLUKE377FC
  • True-RMS AC/DC
  • Complete 3-phase voltage and current testing
  • Power quality indicator shows wether equipment or power line is faulty
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

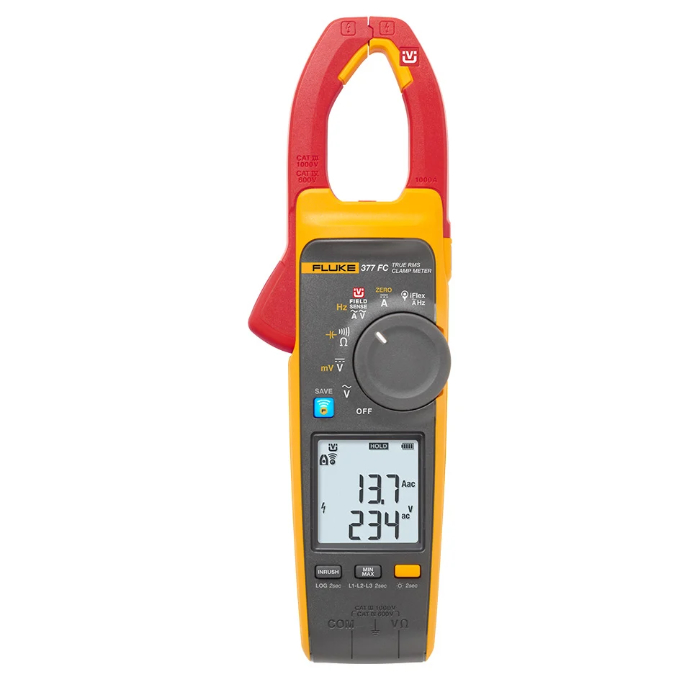

Fluke 377 FC Non-Contact Voltage TRMS AC/DC Clamp Meters with iFlex

The Fluke 377 FC Non-Contact Voltage TRMS AC/DC Clamp Meters with iFlex features Fluke’s impressive FieldSense technology, allowing you perform tests without ever touching a live wire. A safe and quick solution to AC/DC voltage and current testing, simply connect the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable results on screen.

The 377 FC enables you to carry out complete 3-phase tests in just a handful of easy steps. The device will calculate a full set of phase-to-ground and phase-to-phase values, while phase rotation is also calculated. All of this data can be displayed directly on your smart phone or saved to cloud storage via Fluke’s Connect software.

The included iFlex flexible current probe allows you to measure large conductors in small spaces up to 2500 A AC current, due to its flexible design and large loop closure system. The display of the unit provides visual indications for key functions/detections such as stable FieldSense measurement and continuity detection, turning bright green when required.

The clamp includes a the TPAK Magnetic Hanging Kit, with a 9 inch hanging strap, allowing you to hang your clamp wherever you need during use. A Fluke carry bag is also included, for secure transportation and storage.

Key Features

  • Faster testing without touching a live wire using FieldSense technology
  • Power quality indicator shows if equipment or power line is faulty
  • TRMS AC/DC testing
  • Fluke Connect compatible for remote logging
  • Visual continuity provides bright green screen alerts
  • Includes carry case for transportation
  • Includes iFlex flexible current probe
  • Phase rotation calculated and shown via Fluke Connect

What's In The Box?

  • Fluke 377 Non-Contact Voltage True-RMS
  • Wireless AC/DC Clamp Meter
  • TL224 Test Leads
  • TP175 TwistGuard Test Probes
  • AC285 Black Grounding Clip (x1)
  • i2500-18 iFlex Flexible Current Probe 18 inch
  • TPAK ToolPak Magnetic Meter Hanger
  • Premium Carry Case
  • Quick Reference Guide
Specification

AC Current: Jaw

  • Range: 999.9A
  • Resolution: 0.1A
  • Accuracy: 2% + 5 digits (10Hz to 100Hz)
  • Crest factor (50/60Hz): 3@500A, 2.5@600A, 1.42@1000A, add 2% for C.F >2

AC Current: Flexible Current Probe

  • Range: 2500A
  • Resolution: 1A (<2500A), 0.1A (<999.9)
  • Accuracy: 3% RD + 5 digits (5Hz to 500Hz)

DC Current

  • Range: 999.9A
  • Resolution: 0.1A
  • Accuracy: 2% RD+5 digits

AC Voltage: FieldSense

  • Range: 1000.0V
  • Resolution: 1V (<10000V)
  • Accuracy: 1% RD + 5 digits (20Hz to 500Hz)

AC Voltage: Test Leads

  • Range: 600.0V
  • Resolution: 0.1V (<600.0V), 1V(<1000V)
  • Accuracy: 1% RD + 5 digits (20Hz to 500Hz)

DC Voltage

  • Range: 600.0V, 1000V
  • Resolution: 0.1V (<600.0V), 1V(<1000V)
  • Accuracy: 1% RD + 5 digits

mV DC

  • Range: 500.0mV
  • Resolution: 0.1mV
  • Accuracy: 1% RD+5 digits

Amps Frequency: Jaw

  • Range: 45Hz to 66Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% RD + 5 digits
  • Trigger level: 5Hz to 10Hz > 10A, 10Hz to 100Hz >5A, 100Hz to 500Hz >10A

Amps Frequency: Flexible Current Probe

  • Range: 5.0Hz to 500.0Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% RD + 5 digits
  • Trigger level: 5Hz to 20Hz > 25A, 20Hz to 100Hz >20A, 100Hz to 500Hz >25A

Resistance

  • Range: 600.0Ω, 6000Ω, 60.00kΩ
  • Resolution: 0.1Ω (<600.0Ω), 1Ω (<6000Ω), 0.01kΩ (<60.00kΩ)
  • Accuracy: 1% RD + 5 digits

Capacitance

  • Range: 1000μF
  • Resolution: 0.1μF (<100.0μF), 1μF (<1000μF)
  • Accuracy: 1% + 4 digits

Mechanical Specs

  • Size (L x W x H): 274mm x 86mm x 47mm
  • Weight (with batteries): 463g
  • Jaw opening: 34mm
  • Flexible current probe diameter: 7.5mm
  • Flexible current probe cable length: 1.8mm
  • Rogowski coil length: 450mm

Environmental Specs

  • Operating temp: -10 °C to 50 °C
  • Storage temp: -40 °C to 60 °C
  • Operating humidity: Non-condensing (<10°C) ≤90 % RH (at 10 °C to 30 °C) ≤75 % RH (at 30 °C to 40 °C) ≤45 % RH (at 40 °C to 50 °C)
  • Temp coefficient: Add 0.1 x specified accuracy for each degree C >28°C or <18°C
  • Operating altitude: 2000m
  • Storage altitude: 12,000m
  • Ingress protection (IP) rating: IEC 60529: IP30 (jaws closed)

Electromagnetic Compatibility (EMC)

  • International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
  • Korea (KCC): Class A equipment (Industrial Broadcast and Communications Equipment)
  • USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Safety

  • General: IEC 61010-1, Pollution Degree 2
  • Measurement: IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V, IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V

Wireless Radio

  • Radio frequency certification: FCC ID: T68-FBLE, IC: 6627A-FBLE
  • Wireless radio frequency range: 2405 MHz to 2480 MHz
  • Output power: <100mW
