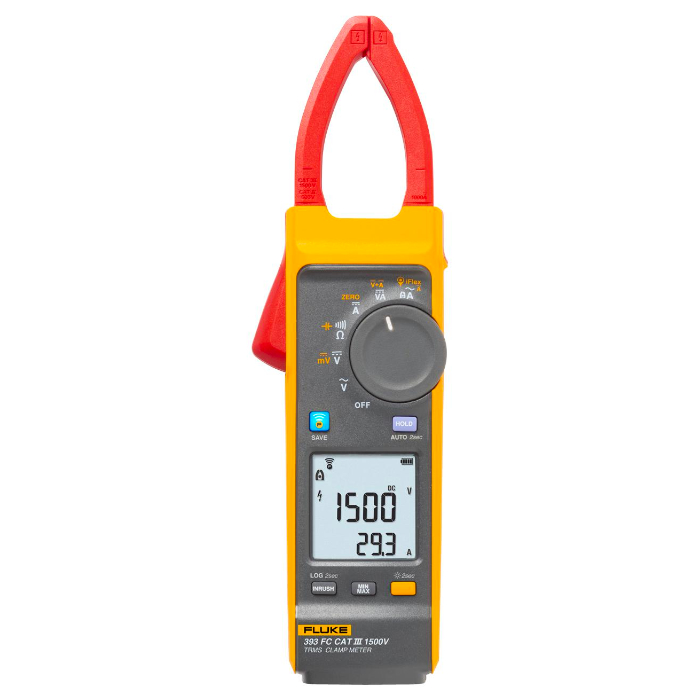

Fluke 393FC CAT III 1500V Solar Clamp Meter with iFlex

Fluke
SKU: FLUKE393
  • Slimline jaw design enables access in crowded cable boxes
  • IP54 rated for outdoor use and solar installation
  • Cat III 1500 V rated clamp meter
More Info
In Stock - Available Next Day
Choose Your Free Gift
Fluke PVLEAD3 MC4 Solar Clamp Test Lead Set
Fluke PVLEAD3 MC4 Solar Clamp Test Lead Set
Free
£75.00

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 393FC CAT III 1500V Solar Clamp Meter with iFlex

The Fluke 393FC CAT III 1500V Solar Clamp Meter with iFlex is the world’s only CAT III 1500V current clamp, designed specifically to support those working with solar testing or other DC environments up to 1500V. The clamp will measure up to 1500V dc, 1000V ac and up to 999.9A dc or ac through the clamp jaw.

The IP54 rated body is ideal for harsher environments which often feature rain and dust, such as those around solar panel arrays. The audio polarity indicator helps prevent dangerous incidents, including accidental miswires. The device also features a visual continuity feature, providing a bright green alert light on detection; a useful feature when working in noisy environments where audio alerts cannot be heard.

Outside of solar panels, the 393 may be useful in other settings such as wind power, electric railways or data centres. The slimline jaw design is intended to be convenient when accessing crowded cable boxes, while the the included iFlex current probe can be twisted through small spaces while still providing accurate extended ac current measurements up to 2500 amps.

In conclusion, the Fluke 393FC CAT III 1500V Solar Clamp Meter with iFlex is the ideal choice for someone working within high voltage DC environments. The kit is completed by a premium carry bag for safe transportation and an included 3-year warranty.

Key Features

  • IP54 rated for outdoor environments
  • DC power measurement, showing readings in kVa
  • Thin clamp jaw design
  • Only CAT III 1500V rated clamp meter in the world
  • Visual continuity
  • Audio polarity
  • Ideal for solar panels and other DC environments including wind power and electric railways
  • Logging and reporting tests via Fluke Connect

What's In The Box?

  • Fluke 393 Solar Clamp Meter CAT III 1500V
  • Test leads, CATIII 1500 V rated, right angle plugs with safety caps
  • iFlex 18 inch flexible current probe
  • TPAK magnetic hanging strap
  • Premium carry case
  • 3-year warranty
Specification

General Specs

  • Maximum voltage between any terminal & earth ground: 1000V AC / 1500 V DC
  • Batteries: 2 AA IEC LR6 alkaline
  • Display: Dual display with backlight
  • Automatic power off: 20 minutes

Electrical Specs

  • Accuracy: Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).
  • Temperature coefficients: Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

AC Current: Jaw

  • Range: 999.9A
  • Resolution
  • Accuracy: 2% + 5 digits (10Hz to 100Hz)
  • Crest factor (50/60Hz): 2.5@1400A, 3.0@1100A, 1.42@2500A, add 2% for C.F >2

AC Current: Flexible Current Probe

  • Range: 999.9A
  • Resolution: 0.1A (<999.9A), 1A (<2500A)
  • Accuracy: 3% RD + 5 digits (10Hz to 500Hz)
  • Crest factor (50/60Hz): 2.5@1400A, 3.0@1100A, 1.42@2500A, add 2% for C.F >2

DC Current

  • Range: 999.9A
  • Resolution: 0.1A
  • Accuracy: 2% RD+5 digits

AC Voltage

  • Range: 600.0V, 1000V
  • Resolution: 0.1V (<600.0V)(<1000V)
  • Accuracy: 1% RD + 5 digits (20Hz to 500Hz)

mV DC

  • Range: 500.0mV
  • Resolution: 0.1mV
  • Accuracy: 1% RD+5 digits

Amps Frequency: Flexible Current Probe

  • Range: 5.0Hz to 500.0Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% RD + 5 digits
  • Trigger level: 5Hz to 20Hz > 25A, 20Hz to 100Hz >20A, 100Hz to 500Hz >25A

Voltage Frequency

  • Range: 5.0Hz to 500Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% RD + 5 digits
  • Trigger level: 5Hz to 20Hz >5V, 20Hz to 100Hz >5V, 100Hz to 500Hz 10V

DC Power

  • Range: 600.0kVa (600.0 V dc range), 1500kVa (1500V dc range)
  • Resolution: 0.1kVa, 1kVa
  • Accuracy: 2% RD + 2.0kVa, 2% RD + 20kVa

Resistance

  • Range: 600.0Ω, 6000Ω, 60.00kΩ
  • Resolution: 0.1Ω (<600.0Ω), 1Ω (<6000Ω), 0.01kΩ (<60.00kΩ)
  • Accuracy: 1% RD + 5 digits

Capacitance

  • Range: 100.0μF, 1000μF
  • Resolution: 0.1μF (<100.0μF), 1μF (<1000μF)
  • Accuracy: 1% RD + 5 digits
  • Inrush trigger level: 5A

Mechanical Specs

  • Size (L x W x H): 281mm x 84mm x 49mm
  • Weight (with batteries): 520g
  • Jaw opening: 34mm
  • Flexible current probe diameter: 7.5mm
  • Flexible current probe cable length: 1.8mm

Environmental Specs

  • Operating temp: -10 °C to 50 °C
  • Storage temp: -40 °C to 60 °C
  • Operating humidity: Non-condensing (<10°C) ≤90 % RH (at 10 °C to 30 °C) ≤75 % RH (at 30 °C to 40 °C) ≤45 % RH (at 40 °C to 50 °C)
  • Operating altitude: 2000m
  • Storage altitude: 12,000m
  • Ingress protection (IP) rating: IP54

Electromagnetic Compatibility (EMC)

  • International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
  • Korea (KCC): Class A equipment (Industrial Broadcast and Communications Equipment)
  • USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Safety

  • General: IEC 61010-1, Pollution Degree 2
  • Measurement: IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V, IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V

Wireless Radio

  • Radio frequency certification: FCC ID: T68-FBLE, IC: 6627A-FBLE
  • Wireless radio frequency range: 2400 MHz to 2483.5 MHz
  • Output power: <100mW
