Fluke 561 Infrared and Contact Thermometer

Fluke
SKU: FLUKE561
  • IR thermometer for infrared and contact temperature measurement
  • K-type thermocouple functionality
  • Fabric hook/loop pipe fastener probe
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

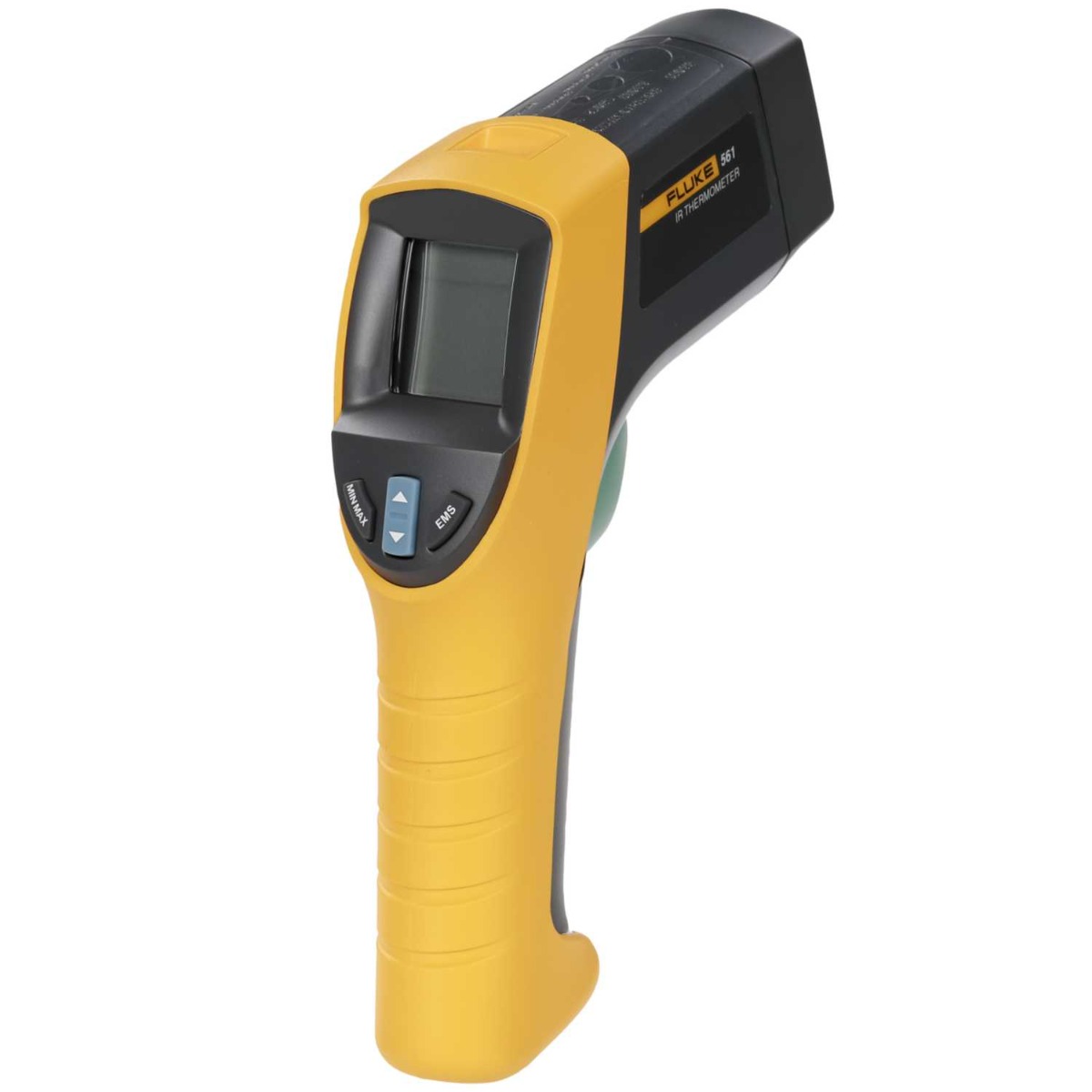

Fluke 561 Infrared and Contact Thermometer

The Fluke 561 Infrared and Contact Thermometer is a convenient solution to both IR and touch temperature measurement needs. Able to fulfil both requirements in just a single instrument, the 561 can measure from a distance using the IR laser point or through contact using the included K-type thermocouple hook/loop fastener pipe probe. This combination of features makes this thermometer a great multipurpose tool for industrial, electrical and HVAC professionals.

With a detection range between -40 ºC and 550 ºC, this thermometer is appropriate for a huge number of heat measuring applications including motors, wires, insulation, pipes, breakers and connection points. For reflective or shiny surfaces, the device features an easy emissivity adjustment function to ensure accuracy.

The K-type thermocouple hook/loop fastener pipe probe wraps directly around large or small pipes, allowing for contact measurements to be made on a variety of fittings. Other K-type connections can also be plugged directly into the Fluke 561, allowing you to use other probes you may have on hand.

The Fluke 561 Infrared and Contact Thermometer is a high quality instrument from a leading brand. For those who require the combined functionality of contact and IR temperature measurement, it makes for a convincing addition to the kit of many professionals.

Key Features

  • IR thermometer with surface scan and contact temperature functionality
  • Scan large areas or smaller areas quickly and easily
  • Easy emissivity adjustment
  • Fabric hook/loop fastener for pipes
  • Single-point laser pointer
  • Temp range -40 ºC to 550 ºC
  • Lightweight and ergonomic design for convenient carry
  • Simple menu/settings adjustments

What's In The Box?

  • Fluke 561Infrared and Contact Thermometer
  • K-Type thermocouple fabric hook/loop fastener
  • Hard carry case
  • 2 x AA batteries
  • User’s manual
Specification
  • Temperature: -40 to 550°C (-40 to 1022°F)
  • Display resolution: 0.1°C (0.1°F) of reading
  • D:S (distance to spot size): 12:1
  • Easy emissivity selector: low (0.3), medium (0.7), high (0.95)
  • Display accuracy: ±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
  • Response time: 500 mSec (95% of reading)
  • Repeatability: ±0.5% of reading or ±1°C (±2°F), whichever is greater
  • Spectral response: 8 µm to 14 µm
  • Laser sighting: Single point laser
  • Laser shutoff: Laser turns off above ambient temperature of 40°C (104°F)
  • Laser power: Class 2(II) operation; Output < 1 mW, wavelength 630-670 nm
  • Relative humidity: 10% to 90% RH non-condensing, at < 30°C (86°F)
  • Power, battery life: 2 AA batteries (alkaline or NiCD)
  • Battery life: 12 hours
  • Display hold: 7 seconds
  • Backlit display: Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
  • Warranty: 2 years
  • Operating temperature: 0°C to 50°C (32°F to 120°F)
  • Storage temperature: -20°C to 65°C (-25°F to 150°F)
  • MAX, MIN, DIF temperatures: Yes
  • Thermocouple Type K mini adapter input: Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range.
  • Thermocouple Type K fabric hook-and-loop fastener pipe probe: Yes, with a temperature range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F)
  • HVAC measurement guide: Yes
