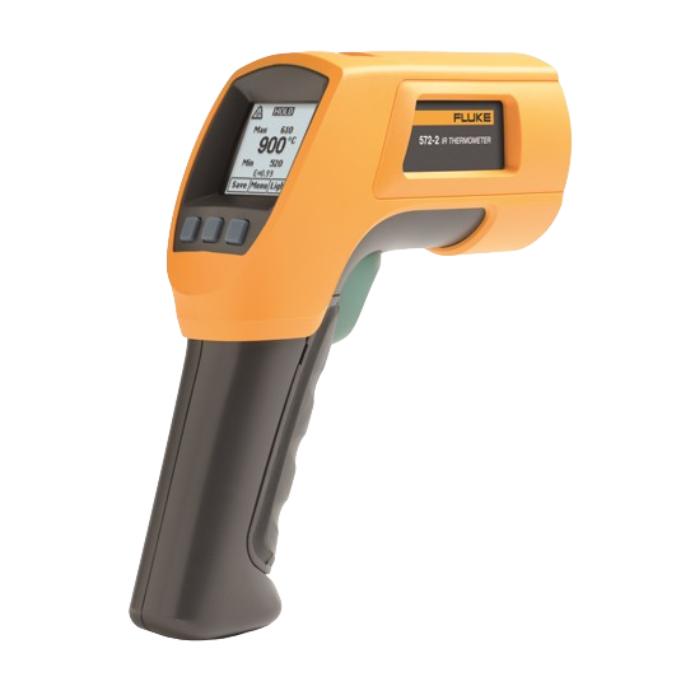

Fluke 572-2 High Temperature Infrared Thermometer

SKU: FLUKE5722
  • A simple, three-button on-screen menu interface saves time and makes the most complex of measurements a simple task
  • The 572-2 is the ideal tool for high-temperature industrial environments thanks to high-durability and ruggedness
  • Stores up to 99 data sets which can be analysed or reviewed at a later date, at the convenience of the user
More Info
Typically ships in 5-7 working days

Fluke 572-2 High Temperature Infrared Thermometer

The Fluke 572-2 High Temperature Infrared Thermometer is the perfect tool for use in high-temperature industrial environments, ensuring durability and reliability across a wide range of tasks. This rugged and durable instrument provides accuracy which is associated with Fluke Thermometers, with a three-button-on-screen menu interface able to save the user time and make the most complex of measurements simple. With just a few pushes of a button, the user is able to adjust emissivity, start data logging, or turn alarms on or off. These innovative features, alongside a 60:1 distance-to-spot ratio with dual laser sighting, make the 572-2 a stand out product in the world of high temperature thermometers.

The Fluke 572-2 stores up to 99 sets of data for review and analysis, and features both audible and visual alarms for the rapid detection of high and low temperatures which are outside of the limits that have been set. It is able to present thermocouple and infrared temperatures on a bright backlit display, and is powered by two standard AA batteries. The tool ensures easy usage, without compromising the accuracy and durability which are usually associated with Fluke products.

Fluke part number: 5065952

Key Features

  • High temperature infrared thermometer that measures from -30°C to 900°C (-22°F to 1652°F)
  • Offers an ultra-high 60:1 distance-to-spot ratio with dual laser sighting for fast, accurate targeting
  • Features a user-selectable multi-language interface
  • Displays the temperature plus MAX, MIN, DIF, AVG temperature
  • Provides adjustable emissivity and a predefined emissivity table

What's In The Box?

  • Fluke 572-2 Infrared Thermometer
  • K-type Thermocouple Bead Probe
  • Durable Hard Case
  • USB 2.0 Computer Interface Cable
Specification
  • Infrared Temperature Range - -30°C to 900°C (-22°F to 1652°F)
  • IR Accuracy (calibration geometry with ambient temperature 23°C ± 2°C)
    ≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater
    ≥ -10°C to < 0°C: ±2°C
    < -10°C: ±3°C
    ≥ 32°F: ± 2°F or ± 1% of the reading, whichever is greater
    ≥ 14°F to < 32°F: ±4°F
    < 14°F: ±6°F
  • IR Repeatability - ±0.5% of reading or ±0.5°C (±1°F), whichever is greater
  • Display Resolution - 0.1°C / 0.1°F
  • Distance: Spot - 60:1 (calculated at 90% energy)
  • Minimum Spot Size - 19mm
  • Laser Sighting - Offset dual laser, output <1mW
  • Spectral Response - 8μm to 14μm
  • Response Time (95%) - <500ms
  • Emissivity - Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials

Contact Measurements

  • K-Type Thermocouple Input Temperature Range - -270°C to 1372°C (-454°F to 2501°F)
  • K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C)
    < -40°C: ±(1°C + 0.2° / 1°C)
    ≥ -40°C: ±1% or 1°C, whichever is greater
    < -40°F: ±(2°F + 0.2° / 1°F)
    ≥ -40°F: ±1% or 2°F, whichever is greater
  • K-Type Thermocouple - 0.1°C / 0.1°F
  • K-type Thermocouple Repeatability - ±0.5% of reading or ±0.5°C (±1°F), whichever is greater

Measurement Options

  • Hi/Low Alarms - Audible and two-colour visual
  • Min/Max/Avg/Dif - Yes
  • Switchable Celsius and Fahrenheit - Yes
  • Backlight - Two levels, normal and extra bright for darker environments
  • Probe Input - K-Type thermocouple simultaneous display of probe and IR temperature
  • Trigger Lock - Yes
  • Data Storage - 99 points
  • Display - Dot matrix 98 x 96 pixels with functions menus
  • Communication - USB 2.0

K-Type Thermocouple Specifications

  • Measurement Range (Bead Probe) - -40°C to 260°C (-40°F to 500°F)
  • Accuracy - ±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
  • Cable Length - 1m (40in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination

General Specifications

  • Safety and Compliance - IEC 60825-1, FDA Laser Class II, IEC 61326-1, CE Complaint, CMC # 01120009
  • Operating Temperature - 0°C to 50°C (32°F to 122°F)
  • Storage Temperature - -20°C to 60°C (-4°F to 140°F)
  • Relative Humidity - 10% to 90% RH non-condensing up to 30°C (86°F)
  • Operating Altitude - 2000 meters above mean sea level
  • Weight - 0.322 kg (0.7099 lb)
  • Power - 2 AA batteries
  • Battery Life - 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on)
