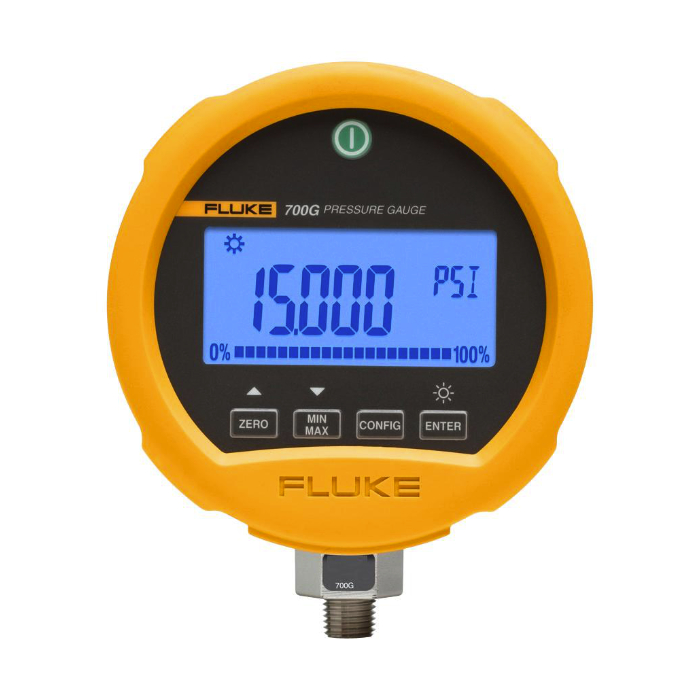

Fluke 700GA Absolute Pressure Gauge Calibrator (select pressure range)

Fluke
SKU: FLUKE700GA-CONF
  • Measure Absolute pressure measurement ranges 15, 30, 100, 300 psia
  • Standard accuracy of 0.05% of full scale
  • CSA and ATEK rated
More Info

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 700GA Absolute Pressure Gauge Calibrator (select pressure range)

The Fluke 700GA Absolute Pressure Gauge Calibrator (select pressure range) is a oprressure gauge that users can select from four absolute pressure ranges when purchasing. Absolute pressure measurement ranges available are; 15, 30, 100, 300 psia with standard accuracy of 0.05% of full scale.

Fluke 700G Absolute Pressure Gauge Calibrator is available in four pressure ranges:

Model Range Resolution Accuarcy Burst pressure
Fluke 700GA4
0 to 15 psia
0 to 1 bar absolute
0.001 psi
0.0001 abr		 ± 0.05 % of range
60 psi
4 bar
Fluke 700GA5
0 to 30 psia
0 to 2 bar absolute
0.001 psi
0.0001 abr		 ± 0.05 % of range
120 psi
8 bar
Fluke 700GA6
0 to 100 psia
0 to 6.9 bar absolute
0.01 psi
0.0001 abr		 ± 0.05 % of range
400 psi
27 bar
Fluke 700GA27
0 to 300 psia
0 to 20 bar absolute
0.01 psi
0.001 abr		 ± 0.05 % of range
1200 psi
80 bar

The Fluke 700G Absolute Pressure Gauge Calibrator is an easy to use calibrator that is rugged in construction that boasts a IP67 protection rating and is CSA; Class1, Div 2m, Groups A-D rated and has an ATEK rating of: II 3 G Ex nA IIB T6. The Fluke 700GA is battery powered with up to 1500 hours use without the backlight or 2000 hours at slow sample rate.

When combined with the Fluke 700G/Track software, users can log up to 8493 pressure measurements and download logging event reading rate, duration and measurement units onto a a PC. Remote logging can also be performed using the software and the Fluke 700GA together.

The Fluke 700GA is compatible with Flukes 700PTPK and 700HTPK pump kits allowing for pressure testing up to 600psi (40bar) or up to 10,000 psi (690bar) with the 700HTPK. Log up to 8493 pressure measurements memory when used alongside the 700G/Track Software.

Fluke Premium Care

The Fluke 700GA is compatible with Fluke Premium Care that provides coverage above and beyond the original product warranty. With the Fluke Premium Care Plan the calibration, repair, collection and delivery of the Fluke 700GA will be expedited, reducing the downtime for the user.

Simply check the one year or three year service plan when placing your order, and your new analyser will be protected with Fluke premium care.

Standard warranty vs Fluke Premium care

  Standard Warranty Fluke Premium Care
Repair manufacturing defects ✔ ✔
Annual calibration   ✔
Accidental damage and repair of main unit   ✔
Expedited calibration and repair   ✔
Expedited freight   ✔
Replacement or repair of damaged accessories   ✔
Priority Tech Support   ✔

Key Features

  • Absolute Pressure Gauge Calibrator
  • Absolute pressure measurement ranges: 15, 30, 100 or 300 psia
  • Standard accuracy of 0.05% of full scale
  • CSA; Class1, Div 2m, Groups A-D rated
  • ATEK rating of: II 3 G Ex nA IIB T6
  • Log up to 8,493 pressure measurements with Fluke 700G/Track Software
  • Complete pressure testing solution for up to 600 psi (40 bar) with the Fluke PTP-1 pneumatic pump
  • Measure up to 10,000 psi (690 bar) with the Fluke HTP-2 hydraulic pump
  • IP67 protection rating
  • Battery powered with up to 1500 hours without the backlight or 2000 hours at slow sample rate
  • IP67 protection rating

What's In The Box?

  • Fluke 700GA Absolute Pressure Gauge Calibrator (select pressure range)
  • Manual on CD-ROM in 14 languages
  • Traceable certificate of calibration
  • 1/4" NPT to 1/4" ISO adapter
Specification

Mechanical specifications

  • Dimensions (HxWxD): 12.7cm x 11.4cm x 3.7cm (5in x 4.5in x 1.5in)
  • Pressure connection: 1/4 in NPT Male
  • Housing/Weight: Cast ZNAL 0.56kg (1.22lb) with holster
  • Display: 5 1/2 digits, 16.53mm (0.65in) high 20 segment bar graph, 0 to 100%
  • Power: Three AA alkaline batteries
  • Battery life: 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
  • 700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy.
  • For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C

    • Media Compatibility

    • 10 inH20, 1, 15, 30 psi: any clean dry non-corrosive gas
    • 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidising liquid or gas compatible with 316 stainless steel.
Label Type Size Download
pdf Fluke 700G Pressure Gauge Calibrator Datasheet pdf 293.7 KB Download
