- Fluke 753 Documenting Process Calibrator
- BC7240 battery charger
- Li-on BP7240 battery pack
- NIST-traceable calibration report and data
- TP220 test probes x 3
- "extended tooth" alligator clips x3
- AC280 hook clips
- C799 Soft Field Case
- USB communication cable
- Quick Reference Guide
- 3 year warranty
Fluke 753 Documenting Process Calibrator
SKU: FLUKE753
- Measure volts, mA, RTDs, thermocouples, frequency and ohms for testing sensors and transmitters
- Power a transmitter during a test using loop supply with simultaneous mA measurement
- Measure Voltage, current, resistance, frequency, temperature, pressure and Store up to a weeks worth of procedures and calibration results
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£5,700.00
£6,840.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

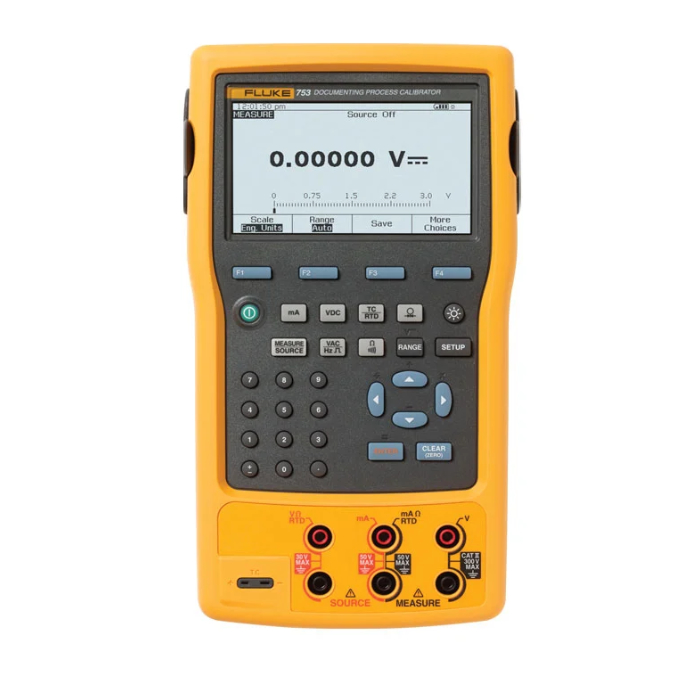

Fluke 753 Documenting Process Calibrator
The Fluke 753 Documenting Process Calibrator is a multifunctional calibrator allowing users to download procedures, lists and instructions and measure a range of parameters such as volts, mA, RTDs, thermocouples, frequency and ohms for testing sensors and transmitters. The Fluke 753 can power a transmitter during a test busing the loop supply with simultaneous mA measurements.
The Fluke 753 sources, simulates and measures pressure, temperature and electrical signals in one rugged hand held calibration device. Automated calibration procedures and data documentation can be captured with the Fluke 753 meeting industry standards such as ISO 9000, FDA, EPA and OSHA regulations
With a USB interface and USB communication cable, the Fluke 753 enables two way Communication with DPCTrack 2 and other instrument management applications/ Using the Fluke DPCTrack2 Calibration Management software to create a seamless and paperless calibration management system.
Users are able to store up to a weeks worth of downloaded procedures and calibration results on the device, the Fluke 753 offers a number of flexible feature such as autostep, custom units, user-entered values during a test, one point and two point switch testing, square root DP flow testing and programmable measurements delay.
The Fluke 753 boasts a bright white dual display allowing for reading both sourced and measured parameters simultaneously. Battery powered, the Fluke 753 has a battery life of around 8 hours allowing for a full days use in the field. IP52 rated and with a three year warranty, the Fluke 753 offers a robust and reliable device.
Key Features
- Measure and sources pressure when used alongside Fluke 700Pxx Pressure Modules(sold separately)
- Create and run automated as-found/as left procedures
- Store up to a weeks work of calibration results
- Measure Voltage, current, resistance, frequency, temperature, pressure
- Source/simulate volts, mA, thermocouples, RTDs, frequency, Ohms and pressure
- Power a transmitter during loop supply tests with simultaneous mA measurements
- Rechargeable batteries allowing up to eight hours use on a full charge
- IP 52 safety rated
- Bright white dual display allowing for reading both sourced and measured parameters simultaneously
- USB interface and USB communication cable, the Fluke 753 enables two way Communication with DPCTrack 2
What's In The Box?
|
Measurement Accuracy Voltage DC
Voltage AC
Current DC
Resistance
Frequency
Source Accuracy Voltage DC
Current DC
Resistance
Frequency
Technical Data Data log functions
Ramp Functions
Loop power function
Step Functions
Environmental specifications
Safety specifications
Mechanical and general specifications
Temperature, Resistance Temperature Detectors
Temperature, Resistance Temperature Detectors
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Fluke 753 Documenting Process Calibrator Datasheet | 201.8 KB | Download |
