Fluke 810/2026 Vibration Tester

Fluke
SKU: FLUKE8102026
  • Identifies four common mechanical faults and their severity
  • Reduces measurement time by up to two-thirds
  • Provides clear, actionable repair recommendations
More Info
Typically ships in 3-5 working days

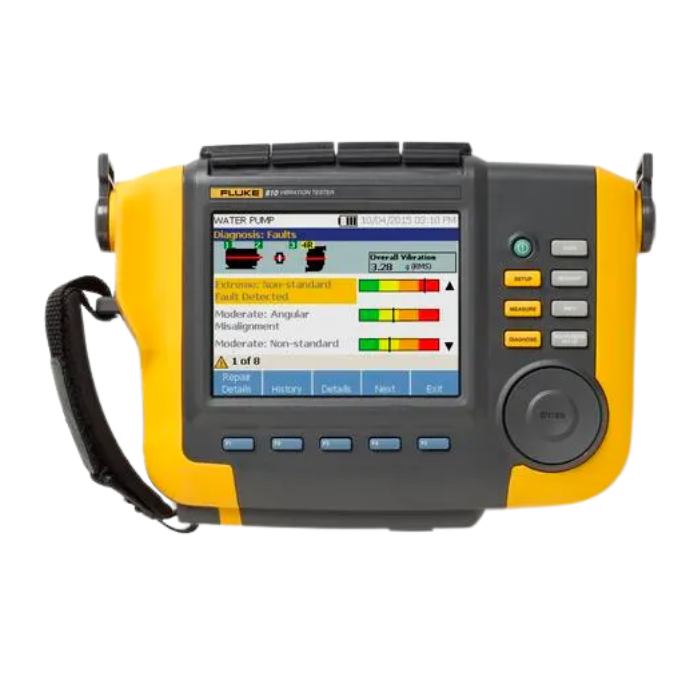

Fluke 810/2026 Vibration Tester

The Fluke 810/2026 Vibration Tester is designed to help mechanical maintenance teams obtain fast and actionable answers without relying on historical measurement data. It features advanced built-in diagnostic technology that quickly identifies and prioritises common mechanical problems, assess their severity and provide repair recommendations.

The Fluke 810/2026 performs on-site vibration testing using a tri-axial TEDS accelerometer to reduce measurement time by up to two-thirds compared with single-axis accelerometers. Overall vibration measurements and spectral diagrams provide a clear view of machine health, while the intuitive step-by-step interface makes it easier for technicians to diagnose equipment confidently.

The tester identifies and locates four common mechanical faults: bearings, misalignment, unbalance and looseness. A four-level fault severity scale helps maintenance teams prioritise repairs, while detailed diagnostic reports and spectral diagrams provide useful data for investigating the root cause of failures and supporting repair or replacement decisions.

With context-sensitive on-board help, technicians receive real-time guidance throughout the testing process and flexible machine speed configurations also allow testing across a wide range of assets, including belt drives, gearboxes and bevel gears. The tester features 2 GB of expandable on-board memory for storing machinery data and a self-test function to help ensure reliable performance.

Use the Fluke 810 Vibration Tester to:

  • Troubleshoot problem equipment and understand the root cause of failure
  • Survey equipment before and after planned maintenance and confirm the repair
  • Commission new equipment and ensure proper installation
  • Provide quantifiable proof of equipment condition and drive investment in repair or replacement
  • Prioritize and plan repair activities and operate more efficiently
  • Anticipate equipment failures before they happen and take control of spare parts inventories
  • Train new or less-experienced technicians and build confidence and skill across the team

Part number: 6102680

Key features

  • Built-in diagnostic engine for machine fault identification
  • Detects bearing faults, misalignment, unbalance, and looseness
  • No prior vibration history is required for diagnosis
  • Displays overall vibration levels for machine health assessment
  • Four-level fault severity scale for maintenance prioritisation
  • Repair recommendations for corrective actions
  • Detailed diagnostic reports and spectral diagrams
  • On-board context-sensitive help and user guidance
  • Supports belt drives, gearboxes, and bevel gears
  • Flexible machine speed configurations
  • A tri-axial accelerometer reduces measurement time
  • 2 GB expandable on-board memory
  • Self-test function for performance verification
  • Suitable for troubleshooting, commissioning, maintenance verification, and condition monitoring
  • Helps identify root causes and reduce unplanned downtime

What's In The Box?

  • Vibration Tester with diagnostic technology
  • Tri-axial accelerometer
  • Magnet mount
  • Mounting pad kit with adhesive
  • Accelerometer quick-disconnect cable
  • Smart battery pack with cable and adapters
  • Shoulder strap and adjustable hand strap
  • Mini USB to USB cable
  • Getting Started Guide
  • Illustrated quick reference guide
  • Carrying case
Specification

Diagnostic Specifications

  • Standard Faults: Unbalance, looseness, misalignment and bearing failures
  • Analysis For: Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
  • Motor Rotational Speed Range: 200 rpm to 12000 rpm
  • Diagnosis Details: Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra

Electrical Specifications

  • Ranging: Automatic
  • A/D Converter: 4 channel, 24 bit
  • Usable Bandwidth: 2 Hz to 20 kHz
  • Sampling: 51.2 Hz
  • Digital Signal Processing Functions: Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
  • Sampling Rate: 2.5 kHz to 50 kHz
  • Dynamic Range: 128 dB
  • Signal To Noise Ratio: 100 dB
  • FFT Resolution: 800 lines
  • Spectral Windows: Hanning
  • Frequency Units: Hz, orders, cpm
  • Amplitude Units: in/sec, mm/sec, VdB (US), VdB* (Europe)
  • Non-volatile Memory: SD micro memory card, 2 GB internal + user accessible slot for additional storage

General Specifications

  • Dimensions (H x D x W): 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
  • Weight (With Battery): 1.9 kg (4.2 lb)
  • Display: ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
  • Input/Output Connections:
    Triaxial sensor connection | 4 pin M12 connector
    Single axis sensor connection | BNC connector
    PC Connection | Mini ‘B’ USB (2.0) connector
  • Battery:
    Battery type | Lithium-ion, 14.8 V, 2.55 Ah
    Battery charging time | Three hours
    Battery discharge time | Eight hours (under normal conditions)
  • AC Adapter:
    Input voltage | 100 VAC to 240 VAC
    Input frequency | 50/60 Hz
  • Operating System: WinCE 6.0 Core
  • Language Support: English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish
  • Warranty: Three-years

Environmental Specifications

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operating Humidity: 10% to 95% RH (non-condensing)
  • Agency Approvals: CHINA RoHS, CSA, CE, C TICK, WEEE
  • Electromagnetic Compatibility: EN 61326-1:2006, EN 61010:1:2001 2nd ed.

Sensor Specifications

  • Sensor Type: Accelerometer
  • Sensitivity: 100 mV/g (±5%, 25°C)
  • Acceleration Range: 80 g peak
  • Amplitude Nonlinearity: 1%
  • Frequency Response:
    Z | 2 - 7,000 Hz ±3dB
    X, Y: 2 - 5,000 Hz ±3dB
  • Power Requirement (IEPE): 18 VDC to 30 VDC, 2 mA to 10 mA
  • Bias Output Voltage: 12 VDC
  • Grounding: Case grounded
  • Sensing Element Design: PZT ceramic / shear
  • Case Material: 316L stainless steel
  • Mounting: 10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength)
  • Output Connector: 4-Pin, M12
  • Mating Connector: M12 - F4D
  • Non-volatile Memory: TEDS 1451.4 compatible
  • Vibration Limit: 500 g peak
  • Shock Limit: 5000 g peak
  • Electromagnetic Sensitivity, Equivalent g: 100 μg/gauss
  • Sealing: Hermetic
  • Temperature Range: -50°C to 120°C (-58°F to 248°F) ±7%
  • Warranty: One-year
Label Type Size Download
pdf Fluke 810/2026 Vibration Tester Datasheet pdf 780.7 KB Download
