Fluke 820-2 LED Stroboscope

Fluke
SKU: FLUKE8202
  • Measure the rotational speed of machinery without the need for direct contact
  • Flash rates - 30-300,000 FPM (flashes per minute) with an adjustable flash duration catering for different applications
  • Highly accurate (0.02 % (± 1 digit)
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

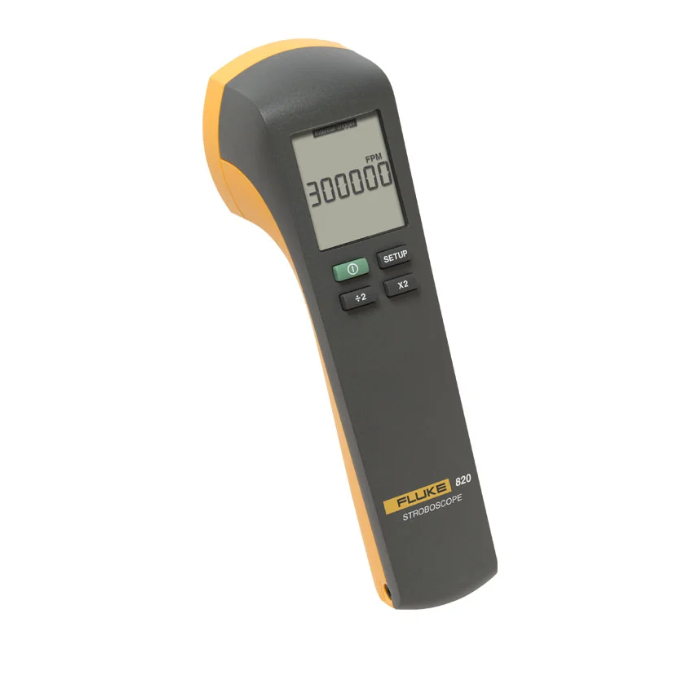

Fluke 820-2 LED Stroboscope

The Fluke 820-2 LED Stroboscope hand held tool ideal for stop motion diagnostics, mechanical troubleshooting and process or product research and development. The highly accurate (0.02 % (± 1 digit) the 820-2 gives the operator a high intensity 7 LED array - 4800 Lux @ 6,000 flashes per minute (FPM) at 30cm. The 820-2 allows High efficiency LED solid-state light source with uniform flash characteristics allows for higher flash rates from 30-300,000 FPM (flashes per minute). The flash pulse duration and delay are both Adjustable in μs or degrees.

The Fluke 820-2 can also be used as a strobe tachometer to measure speed instead of using a laser tachometer. Using a stone tachometer eliminates the need to place a piece of reflective tape or making contact with the moving shaft to use a contact tachometer. Using the Fluke 820-2 users can "stop" the shaft down to 300 RPM (FPM)

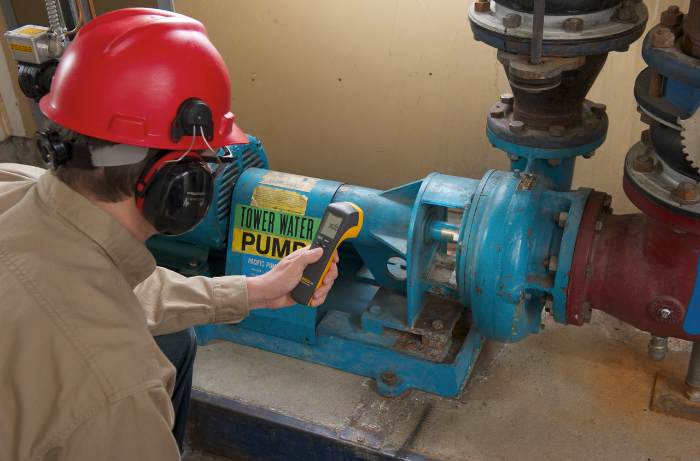

Using the 820-2 operators are able perform tests in a number of different environments such as:

  • Turbines that vary in speed and change speed frequently
  • Variable frequency drive motors that vary in speed but not the frequency
  • Find belt rotation speed and look for belt slippage,
  • Find machine element components such as fan blades, pump vanes, compressor screws and gear teeth
  • RPM measurements and frequency investigation and Slip measurement
  • Slip measurement

The 820-2 allows for the diagnosis of parasitic oscillations, flaws, slippage or any unwanted distortions. The speed of rotation or the frequent of a rotating shaft, speaker or mechanical part can all be measured. Stop motion diagnostics allows for identification of the running speed of rotating equipment, identify part numbers or other markings

Adjustable flash duration

Most applications only require the standard flash duration that requires no adjustment. However, in some instances such as applications with higher rpm or larger rotating objects with high surface speeds, an adjustable flash duration is required. In high speed applications, an object may move during the period of a single flash, which produces a blurred image. With a reduction in flash duration the object will have less time to move and the image will appear sharper.

Fluke 820-2 can be used in a variety of industries such as:

  • Electronics/Electrical engineering
  • Machine construction
  • Automotive and motor manufacturing
  • Optics manufacturing
  • Print, paper and cardboard manufacturing
  • Mining
  • Shipbuilding and aircraft construction
  • Chemical manufacturing
  • Medical

The Fluke 820-2 has been drop tested from 1m and with an ergonomic design provides an easy to use tool with a simple push button operation with 2x and ÷2 buttons for easy adjustment, that can be safely transported and stored in the supplied protective case.

Key Features

  • Check the rating speed of machinery, components and other applications without physical contact or the need for reflective tape
  • High intensity 7-LED- 4800 Lux @ 6,000 FPM/30cm
  • Highly efficient LED solid state light source with uniform flash characteristics that allow for higher flash rates 30 - 300,000 FPM
  • Flash frequency range of 30 to 300,000 FPM or 0.5 to 5000Hz
  • LCD display with multiple lines
  • Pulse width modulation for sharp images at high speed
  • Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats or drifting images
  • Push button operation with x2 and ÷2 buttons for easy adjustment
  • Ease of use and ergonomic design help make measurement easy
  • Rugged construction with a 1m drop test for reliable performance

What's In The Box?

  • Fluke 820-2 LED Stroboscope
  • Protective case
  • External Trigger Connector
Specification

Mechanical specifications

  • Size (H x W x L): 7.71 x 6.09 x 19.05cm (2.25 x 2.4 x 7.5in)
  • Weight: 0.24KG (0.53lb)

Environmental specifcations

  • Operating Temperature: 0ºC to 45ºC
  • Storage Temperature: -10ºC to 50ºC
  • Operating humidity (without condensation):
    Non-condensing (<10ºC)
    90% RH (10ºC to 30ºC
    75% RH (30ºC to 40ºC)
    45% RH (40ºC to 50ºC
  • Absorption/Corrosion:
    30ºC, 95% RH, 5 day
    Product functions normally
  • Operating altitude: 2000m
  • Storage altitude: 12,000m
  • Vibration: MIL-PRF-28800F Class 2
  • EMI, RFL, EMC: EN61326-1:2006

Safety compliance:

  • Agency approvals:
    CE
    Class III (SELV) Pollution Degree 2

Miscellaneous specifications

Flash frequency

  • Range:
    30 to 300,000 FPM
    0.5 to 5000Hz
  • Accuracy: 0.02%
  • Resolution:
    30 to 999 FPM = 0.1
    1000 to 300,000 = 1
    0.5 HZ to 999 Hz = 0.1
    1000 Hz to 5000 hz = 1
  • Frequency setting: FPM or Hz

Flash pulse:

  • Duration: Adjustable in μs or degrees
  • Delay: Adjustable in μs or degrees

Light:

  • Colour: Approx 6500K
  • Emission output: 4,800 lx @ 6000 FPM at 30cm

External Trigger:

  • Method: Connector to externally control trigger
  • High level 3V to 32V
  • Low level: <1 V
  • Minimum pulse width
