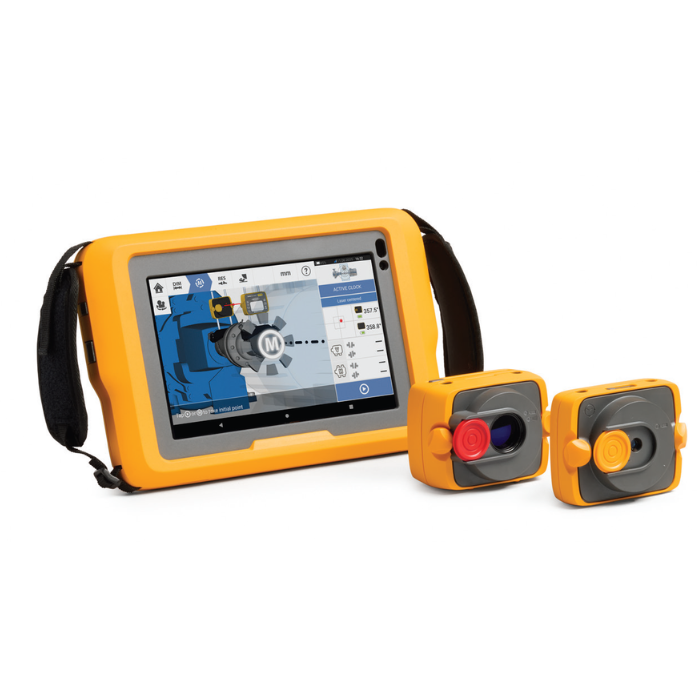

Fluke 832 Laser Shaft Alignment Tool

Fluke
SKU: FLUKE832
  • Features single-laser, dual-detector technology for faster setup and measurement
  • Provides real-time horizontal and vertical corrections
  • Creates customised reports and tracks alignment results
More Info
Typically ships in 3-5 working days

Fluke 832 Laser Shaft Alignment Tool

The Fluke 832 Laser Shaft Alignment Tool is designed to make shaft alignment simpler, faster, and more accurate for standard rotating machinery. Featuring unique single-laser, dual-detector technology and advanced sensor heads, the Fluke 832 reduces setup time while delivering precise alignment data, making it ideal for everyday maintenance and alignment tasks.

Operation is straightforward, thanks to an intuitive three-step workflow: simply enter the machine dimensions, take the measurements, and view the results. The guided interface provides real-time feedback, including simultaneous horizontal and vertical Live Move corrections, automatic out-of-range notifications, and instant alignment verification using Quality Factor and Standard Deviation metrics

The Fluke 832 adapts to different alignment conditions, including full or limited shaft rotation, static machine or multiple foot positions, and uncoupled shafts. Built-in Soft Foot correction helps identify and resolve common alignment issues before adjustments are made, while the 8-Point Active Clock supports reliable measurements in challenging setups.

Once the alignment is complete, clear, customised reports can be generated and shared using built-in email templates. Asset-specific IDs and measurements are automatically logged, while the integrated ROI calculator helps demonstrate the long-term savings of accurate shaft alignment. A built-in camera also makes it easier to document equipment and alignment work.

Part number: 6120984

Key Features

  • Single-laser, dual-detector precision
  • Simple, easy setup
  • Simultaneous Live Move (horizontal & vertical)
  • Soft Foot correction
  • 8-Point Active Clock
  • Automatic out-of-range notifications
  • Built-in camera
Specification

Fluke Shaft Alignment Tablet

  • CPU
    Processor:       Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)
    Memory:           4 GB LPDDR4X SDRAM/64 GB UFS Flash
  • Display
    Technology: Corning® Gorilla® Glass
    Resolution: 600 nits, color WXGA 1280x800
    Dimensions: 8 inch/20.3 cm
  • Power supply
    Operating time: Up to 11 Hours
    Battery: 6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)
    Charging: USB-C
  • Connectivity
    Wifi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)
    Bluetooth: Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)
    RFID: Integrated RFID with read and write capabilities Docking connector (charge and data) | USB-C side port (tablet charging and data only)
  • Environmental protection
    IP 65: Dustproof and water jets resistant
    Relative humidity: 5% to 95% non-condensing
  • Drop test: 1.2 m (4 ft)
  • Temperature range
    Operation: -20°C to 50°C (-4°F to 122°F)
    Storage: -40°C to 70°C (-40°F to 158°F)
  • Dimensions: 267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8"
  • Weight: 930 g/2.1 lbs
  • Camera
    Rear:   Image capture: 13 MP auto-focus camera with user controllable LED flash
    Front:   5MP
  • CE conformity: Refer to the CE compliance certificate
  • Carrying case
    Dimensions: 595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2")

Fluke 832 Sensor

  • Type: 6-axis 2 planes (4 displacement axes and 2 angles)
  • Measurement
    Optical range: 14 x 14 mm (0.55 x 0.55 in.)
    Area: Unlimited, dynamically extendible
    Resolution: 1 μm (0.04 mil); Angular 10 μRad
    Error: < 2%
    Transmitted rate: Approx. 20 Hz
  • Inclinometer
    Resolution 1°
    Error     Roll +-1°; Pitch +- 3°
  • LED indicators: 1 LED for laser adjustment, battery and charge status; 1 LED for BT communication
  • Power supply
    Battery: Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
    Operating time: 30 hours (continuous use)
    Charging time: 2.5 h for up to 80%; 4 h for up to 100%
    Charging           USB-C
  • External interface: Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed
  • Radio transmission distance: Up to 50 m (160 ft) direct line of sight
  • Environmental protection
    IP 65: Dustproof and water jets resistant, shockproof
    Relative humidity: 10% to 90%
  • Ambient light protection: Optical and active electronic digital compensation
  • Temperature range
    Operation: -10°C to 50°C (14°F to 122°F)
    Charging           0°C to 35°C (32°F to 95°F)
    Storage              -20°C to 50°C (-4°F to 122°F)
  • Dimensions: 104 x 72 x 54 mm (4 1/8" x 2 13/16" x 2 1/8")
  • Weight: 231 g (8.2 oz)
  • CE conformity: Refer to the CE compliance certificate

Fluke 832 Laser

  • Type: Semiconductor laser diode
  • Laser
    Power: < 1 mW
    Divergence: 0.3 mrad
    Wavelength: 630-640 nm (red, visible)
    Separation distance: Up to 10 m
    Adjustment: No
    Safety class: Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam
  • Inclinometer
    Resolution: 0.1°
    Error: Roll +-1°
  • LED indicators: 1 LED for battery and charge status
  • Power supply
    Battery: Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
    Operating time: 40 hours (continuous use)
    Charging time : 2.5 h for up to 80%; 4 h for up to 100%
    Charging: USB-C
  • Environmental protection
    IP 65: Dustproof and water jets resistant, shockproof
    Relative humidity: 10% to 90%
  • Temperature range
    Operation: -10°C to 50°C (14°F to 122°F)
    Charging: 0°C to 35°C (32°F to 95°F)
    Storage: -20°C to 50°C (-4°F to 122°F)
  • Dimensions: 101 x 75 x 37 mm (4” x 2 15/16” x 1 7/16”)
  • Weight: 190 g (6.7 oz)
  • CE conformity: Refer to the CE compliance certificate
