Fluke a3001 FC Wireless iFlex AC Current Meter

Fluke
SKU: FLUKEA3001
  • AC current meter measuring up to 2500 A AC
  • Included iFlex current probe
  • Store up to 65,000 records onboard
More Info
Typically ships in 5-7 working days

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

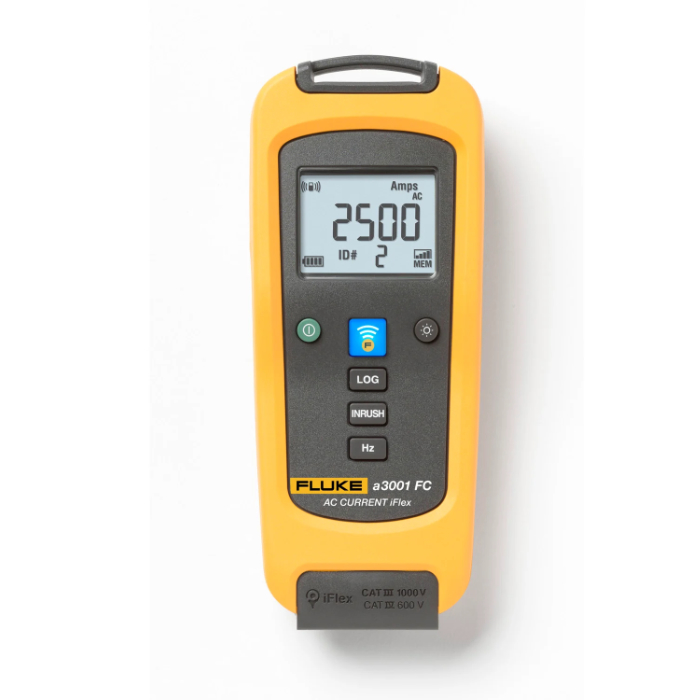

Fluke a3001 FC Wireless iFlex AC Current Meter

The Fluke a3001 FC Wireless iFlex AC Current Meter is a TRMS current clamp meter, able to wirelessly transmit measurement data to other Fluke Connect enabled devices and personal smart devices (such as phones and tablets). Compatible Fluke Connect master units include the 3000 FC Digital Multimeter and TiX560/520 Infrared Cameras.

The included iFlex i12500-10 Flexible Current Probe offers a great deal of measurement flexibility. With its 1.8m (6ft) connection cord and large loop design, awkwardly sized conductors within crowded spaces can be easily assessed. A magnetic hanging strap is another handy addition to the a3001’s kit, allowing the device to be hung from metal fixings during operation. This meter can measure current values across extended periods of time, allowing you to leave it unattended and logging for up to a week.

When it comes to testing capabilities, the Fluke a3001 FC makes 3-phase tests faster and cheaper. When a cabinet is de-energised the device’s probes can be attached to each phase, the cabinet reenergised, and measurement can begin in under a 3rd of the time of usual testing approaches.

The Fluke a3001 FC Wireless iFlex AC Current Meter is a great choice for those requiring wireless integrated with their other Fluke instruments, other those simply seeking a capable meter with complete with a flexible probe attachment.

Key Features

  • Measures up to 2500 A AC
  • Included iFlex current probe
  • Log up to 65,000 records onboard
  • Fluke Connect enabled
  • Battery life of up to 400 hours
  • Stream measurement data to smart device
  • Use as a part of a system or individually
  • Faster 3-phase testing

What's In The Box?

  • Fluke a3001 FC Wireless iFlex AC Current Meter
  • Batteries
  • Includes magnetic hanging strap
  • Quick reference guide
Specification
  • Range: 0.5A to 2500 A AC
  • Resolution: 0.01A
  • Accuracy: 3% ± 5 digits (5Hz to 500Hz)
  • Crest factor: 3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, add 2 % for C.F. > 2
  • LCD w/ backlight: 3 ½ digits
  • Log rate/interval: 1 sec minimum/adjustable by PC or front panel
  • Battery type: 2 AA NEDA 15 A IEC LR6
  • Battery life: 400 hours
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communications range: Open air, unobstructed: Up to 20 m, Obstructed, sheetrock wall: Up to 6.5 m, Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temp: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temp coefficient: Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)
  • Operative humidity: 90% at 35°C, 75% at 40°C, 45% at 50°C
  • Altitude: Operating 2,000 m, Storage 12,000 m
  • EMC: EN 61326-1:2013
  • Safety rating: CAT III 600V, CAT IV 1000V
  • Certifications: CSA C-US, CE, FCC: T68-FBLE, IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Pollution degree: 2
  • Jaw opening: 25.4mm (10 in) coil
  • Size (HxWxD): 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
  • Weight: 0.22kg
