Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter

Fluke
SKU: FLUKEA3003
  • 2000 A DC clamp meter with Fluke Connect technology
  • Able to wirelessly relay measurements to other Fluke Connect units
  • Store up to 65,000 measurements onboard
More Info
Typically ships in 7-10 working days

Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter

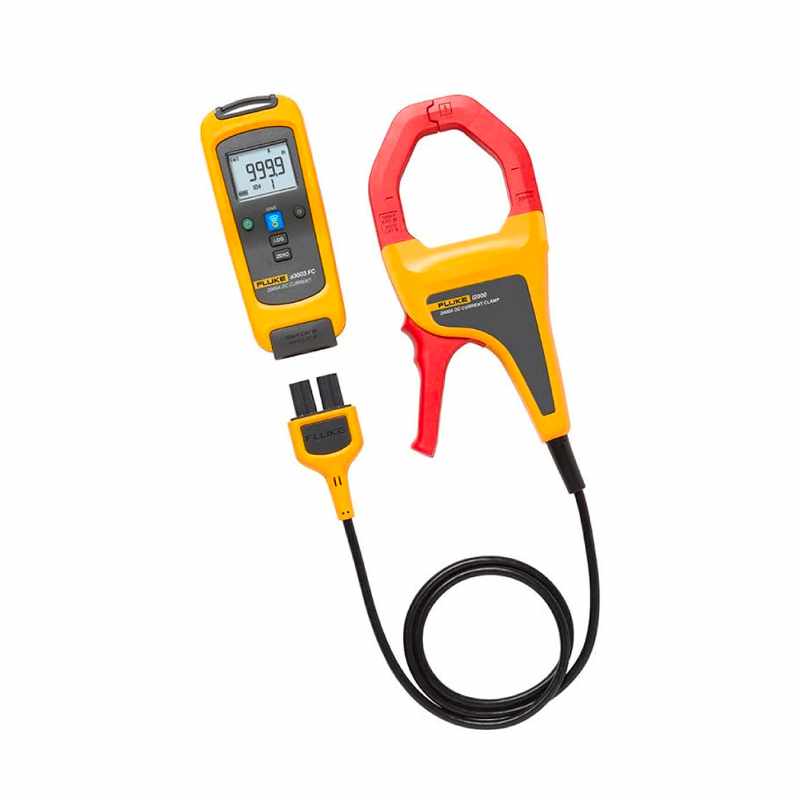

The Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter is a wide-jaw design meter, featuring a 64mm opening to allow for measurement of large high current conductors. This feature makes the a3003 the ideal instrument for mining, marine, rail and other heavy industrial applications where large DC current cabling is found.

The Fluke Connect wireless functionality allows a3003 FC to relay measurement data to other Fluke Connect enabled devices including the Fluke 3000 FC Digital Multimeter, Ti200/300/400 and TiX560 infrared cameras. In addition to Fluke devices, users can export data to PC or personal smart devices for analysis and storage.

With a 120 hour battery life and the ability to store up to 65,000 records onboard, the Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter is a dependable tool for those who spend long periods in the field. Other convenient features include an LCD backlight for low-light environments and a handy magnetic strap to attach the instrument to metal fixings during operation.

The Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter is an excellent option for those requiring a wider jaw design for use with large conductors. The addition of Fluke Connect and number of other highly convenient features make this instrument an impressive proposition.

Key Features

  • 10 - 2000 A DC wireless clamp meter
  • Able to wirelessly relay measurements to other Fluke Connect units
  • Log up to 65,000 measurements onboard
  • Large 64mm jaw opening for measuring big conductors
  • Includes magnetic strap for hanging during use
  • Send measurements to smartphone via Fluke Connect
  • Share results via Fluke Cloud
  • Record circuit load over long durations
  • ShareLive video call functionality

What's In The Box?

  • Fluke A3003 FC Wireless 2000 A DC Current Clamp Meter
  • Batteries
  • Includes magnetic hanging strap
  • Quick reference guide
Specification
  • Range: 1.0A to 999.9A DC, 1000 A to 2000A DC
  • Resolution: 0.01A, 1A
  • Accuracy: 0.2% ± 5 digits/2.5% ± 5 digits
  • LCD w/ backlight: 3 ½ digits
  • Log rate/interval: 1 sec minimum/adjustable by PC or front panel
  • Battery type: 2 AA NEDA 15 A IEC LR6
  • Battery life: 120 hours
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communications range: Open air, unobstructed: Up to 20 m, Obstructed, sheetrock wall: Up to 3.5 m, Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temp: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temp coefficient: Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)
  • Operative humidity: 90% at 35°C, 75% at 40°C, 45% at 50°C
  • Altitude: Operating 2,000 m, Storage 12,000 m
  • EMC: EN 61326-1:2013
  • Certifications: CSA C-US, CE, FCC: T68-FBLE, IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Jaw opening: 64mm
  • Size (HxWxD): 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
  • Weight: 0.64kg
