Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter

Fluke
SKU: FLUKEA3004
  • Clamp meter with detachable clamp and extension cable
  • Save up to 65,000 records
  • Fluke Connect wireless functionality
More Info
Typically ships in 7-10 working days

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

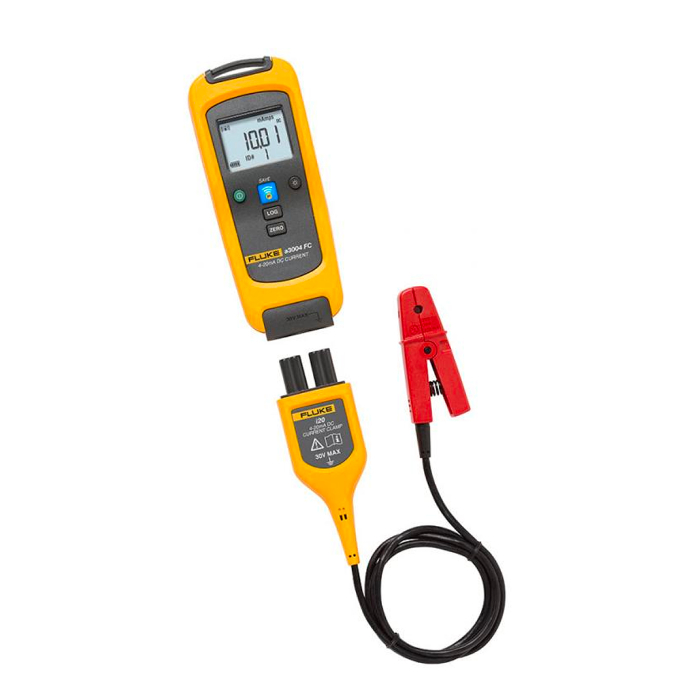

Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter

The Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter is a member of Fluke’s wireless test instrument range, allowing you to connect with other wireless Fluke Connect units/platforms including the 3000 FC Digital Multimeter, Ti200/300/400 Infrared Camera, Fluke Connect mobile app and TiX560/TiX520.

The a3004 FC features measurement capabilities for signals 4 to 20mA. The clamp is detachable with an extension cable for measuring in tight locations. Simply connect the meter and log up to 65,000 measurements from a safe distance via the Fluke Connect mobile app, with the additional ability to send data to PC for further analysis or share via a ShareLive video call.

The meter sports a large LCD screen with powerful backlight and a battery life of up to 45 hours, which when combined with the IP42 ingress protection rating makes it a convenient and highly usable choice for those looking for a wireless solution.

Fluke Connect App

The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

Key Features

  • Measure 4 to 20mA signals
  • Detachable clamp
  • Fluke Connect enables connection with other Fluke devices
  • Save up to 65,000 records
  • Send data to your PC for further analysis
  • Send data to Fluke Cloud for storage or ShareLive video call
  • Included hanging strap
  • Tests without breaking loop

What's In The Box?

  • Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter
  • Batteries
  • Hanging strap
  • Quick reference guide
Specification
  • Range: 0.05mA to 0.05 mA to 20.99 mA DC/21.0 mA to 99.9 mA DC
  • Resolution: 0.01 mA/0.1 mA
  • Accuracy: 0.2% ± 5 digits/1.0% ± 5 digits
  • LCD w/ backlight: 3 ½ digits
  • Log rate/interval: 1 sec minimum/adjustable by PC or front panel
  • Battery type: 2 AA NEDA 15 A IEC LR6
  • Battery life: 45 hours
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communications range: Open air, unobstructed: Up to 20 m, Obstructed, sheetrock wall: Up to 6.5 m, Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temp: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temp coefficient: Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)
  • Operative humidity: 90% at 35°C, 75% at 40°C, 45% at 50°C
  • Altitude: Operating 2,000 m, Storage 12,000 m
  • EMC: EN 61326-1:2013
  • Maximum voltage between terminal & earth ground: 30 V DC or AC rms
  • Certifications: CSA C-US, CE, FCC: T68-FBLE, IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Jaw opening: 4.5mm
  • Size (HxWxD): 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
  • Weight: 0.299kg
  • Note: not compatible with Fluke CNX test tools
