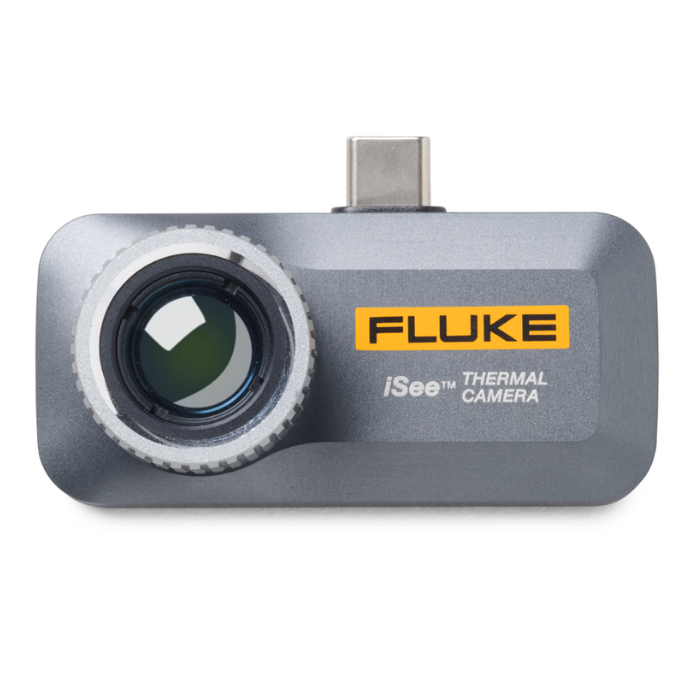

Fluke iSee™ TC03A Mobile Thermal Camera for Android (9Hz)

The Fluke iSee™ TC03A Mobile Thermal Camera is a compact, plug-in thermal imaging solution designed for Android smartphones and tablets. Instead of carrying a dedicated thermal camera or dealing with extra cables and setup, you can simply connect the iSee™  TC03A directly to a compatible Android device via USB-C and start capturing clear, detailed thermal images. It is also a practical option for teams that need a portable thermal imaging tool for routine checks, troubleshooting and temperature monitoring.

The iSee™  TC03A delivers sharp thermal images thanks to its 384 × 288 infrared resolution, with SuperResolution up to 768 × 576, making temperature differences easier to identify. It has a NETD sensitivity of up to 50 mK, which allows it to pick up subtle temperature variations that might otherwise be missed. The adjustable manual focus lens makes it easier to fine-tune focus for different inspection distances. A 25° × 19° field of view provides good area coverage, with a working distance starting from just 0.25 m. The camera operates at a 9 Hz frame rate and has a pixel size of 12 μm.

The thermal imaging module also includes practical temperature analysis tools that can help speed up fault detection. Users can perform spot, line, and area measurements, while automatic three-phase temperature delta calculations make it easier to identify temperature imbalances. If temperatures exceed set limits, over-temperature alarms can provide audible, visual, and vibration alerts, helping users react quickly when a problem is detected.

Using the Fluke iSee™ app, users can capture thermal images and video in real time, generate reports, export results, and share information with colleagues or across teams. The iSee™  TC03A is rated IP54 for protection against dust and water, making it suitable for day-to-day use in industrial environments. With a measurement range of –20 °C to 550 °C, it can be used for everything from electrical and equipment inspections to maintenance, research, and general thermal troubleshooting.

Part number: 6163245

Improvements from the TC01 Series

Key Features

• Smartphone-based thermal imaging for Android devices
• Supported by AndroidOS and HarmonyOS
• Direct USB-C connection
• 384 × 288 IR resolution, up to 768 × 576 SuperResolution
• 50 mK thermal sensitivity
• Adjustable manual-focus lens
• 25° × 19° field of view
• Spot, line, and area analysis tools
• Automatic three-phase temperature delta measurement
• Audible, visual, and vibration alarms
• Real-time image and video capture
• In-app reporting and sharing
• IP54 protection rating
• –20 °C to 550 °C measurement range
• Compact and portable design for field inspections and troubleshooting
