"Fluke SmartTrace™ 2082 Core Underground Utilities Locator Kit "

Fluke
SKU: FLUKE2082
  • Features reinforced insulation and safety-tested to IEC 61010 standards
  • Delivers fast, accurate tracing with a proven 33 kHz frequency
  • Built for demanding field conditions with a high‑contrast grayscale display and rugged IP54‑rated construction
More Info
Typically ships in 5-7 working days

Fluke SmartTrace™ 2082 Core Underground Utilities Locator Kit

The Fluke SmartTrace™ 2082 Core Underground Utilities Locator Kit is designed to accurately locate, trace and document buried electrical lines, communication cables, and other underground utilities. It helps electricians, contractors, and utility technicians to quickly identify assets that lie beneath the surface before excavation begins – preventing accidental damage that can lead to costly repairs, project delays, and safety risks.

Safety and Compliance

The SmartTrace™ 2082 features a CAT IV 600 V‑rated transmitter which meets the highest electrical safety standards for working around live electrical systems, substations and industrial environments. It is the only underground utility locator with a CAT IV 600 V-rated transmitter, setting a high benchmark for safety in utility tracing. Featuring reinforced insulation and safety-tested to IEC 61010 standards, the system allows operators to trace both energised and de-energised circuits using a single instrument. As a result, technicians can work confidently in mixed-voltage environments without needing multiple tools.

Locating Performance

Precise locating performance is supported by a proven 33 kHz frequency and dual connection modes (induction and direct test‑lead connection), allowing fast and accurate tracing of underground utilities. Advanced signal processing and semi-automatic gain control provide stable readings even in challenging environments with electrical noise. Multiple active and passive detection modes, including power and radio modes, make it easy to select the most appropriate frequency for tracing energised lines, de-energised circuits, or conductive pipes.

Efficiency in the field is enhanced by a receiver that delivers instant depth readings up to 6 m (20 feet) with a detection range extending to 30 m (100 feet) depending on conditions, allowing operators to quickly determine the position of buried utilities. The fast signal response allows technicians to locate lines more quickly, which improves productivity and reduces the time spent retracing. Together, these capabilities ensure operators can work with greater speed and confidence when navigating complex sites.

Application and Benefits

This SmartTrace™ 2082 is well suited to a wide range of professional applications, including electrical fault isolation, service line verification, and preventative maintenance of underground utilities. It is also ideal for pre-excavation surveys, trenching preparation, site layout checks, and asset verification, helping contractors maintain safety and compliance before digging or drilling begins.

For maintenance and repair teams, the SmartTrace™ 2082 provides a single, safe solution for tracing both energised and de-energised lines. This reduces troubleshooting time and allows technicians to quickly locate faults, verify circuit continuity, or trace buried conductors before carrying out maintenance work. Construction and excavation professionals also benefit from the added confidence it provides of clearly identifying buried infrastructure in advance, avoiding costly utility strikes and improving overall project planning and site safety.

Rugged design

The SmartTrace™ 2082 is capable of handling real jobsite conditions, performing reliably in bright sunlight, light rain, and demanding outdoor environments. It includes a high-contrast greyscale display for visible readings that do not have a glare or washout, while the rugged housing, IP54-rated ingress protection, and shock-tested construction provide the durability, helping protect the instrument from dust, moisture, and impact and extending its service life.

Part number: 6074049

Key Features

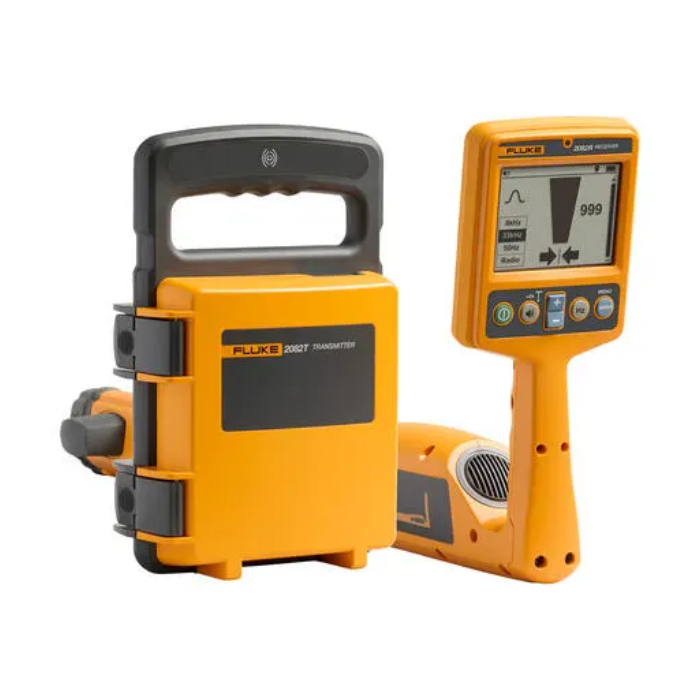

  • Core kit provides users with receiver, transmitter, carrying case, and other various accessories
  • Rugged and economical solution for locating energized and de-energized wires, cables, and pipes
  • Designed to accurately pinpoint underground utilities and buried services
  • Receiver features fast sound/meter response and performs easy depth measurements up to 6 m (20 feet)
  • Detection range can be extended up to 30 m (100 feet) depending on conditions
  • Induction/direct test leads connection modes allows users to trace signals
  • Power/radio modes detect energized wires and radio signals on underground lines
  • CAT IV 600V rated transmitter meets highest electrical safety standard for industrial and utility work
  • Built with reinforced insulation and safety-tested to IEC 61010 standards for minimized risk in mixed-voltage environments
  • Transmitter's 33 kHz frequency is ideal for most locating applications
  • Advanced signal processing and semi-automatic gain control delivers fast and stable readings
  • Operators can precisely trace cables or pipes even in noisy environments
  • Multiple active and passive probes allows users to select optimal frequency for job
  • Grayscale display and fast, intuitive UX/UI ensure clear readings and quicker operation in any field condition
  • High-contrast display is readable in full sunlight or light rain for tracking signals without glare or washout
  • Ruggedised housing, IP54-rated ingress protection, and shock-tested design provide added durability

What’s In The Box?

  • Receiver
  • Transmitter
  • Carrying Case
  • Test Lead Kit
  • Replacement
  • 2 x Fuses
  • 6 x AA Batteries
  • 8 x D Batteries
Specification
  • Maximum voltage between any terminal and earth ground: 600 V
  • Transmitter Power Supply: 8x D, IEC LR20
  • Transmitter Fuse Protection: 0.5A, 1000V, IR 30 kA, 6.3 x 32 mm
  • Transmitter Safety Compliance: IEC 61010-2-030, CAT IV 600V
  • Receiver Power Supply: 6x AA, IEC LR6
  • Receiver Safety Compliance: IEC 61010-2-030, CAT IV 600V
  • Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity (non-condensing): 0–90% (5–30 °C), 0–75% (30–40 °C), 0–45% (40–50 °C)
  • Altitude: ≤ 2000 m (≤ 6561 ft)
  • Ingress protection: IP54 (non-operating)
  • Pollution degree: 2
  • Safety Compliance: IEC 61010-1
  • Electromagnetic Compatibility (EMC) International: IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
