Fluke SmartTrace™ 2082BT Elite Underground Utilities Locator Kit

Fluke
SKU: FLUKE2082BT
  • Integrated Bluetooth connection with PointMan® mobile mapping platform
  • Receiver features fast sound/meter response and performs easy depth measurements up to 6 m (20 feet)
  • Advanced signal processing and semi-automatic gain control delivers fast and stable readings
More Info
Typically ships in 5-7 working days

Fluke SmartTrace 2082BT Elite Underground Utilities Locator Kit

The Fluke SmartTrace™ 2082BT Elite Underground Utilities Locator Kit accurately and efficiently pinpoints energised and de-energised underground utilities, giving electricians and utility technicians the confidence to locate infrastructure before excavation begins while reducing costly repairs, downtime and hazardous public safety situations.

Locating Performance

The system comes with a powerful transmitter that uses a proven 33 kHz frequency, ideal for most utility locating applications. Using the receiver, operators are able to trace signals through either Induction Mode or Direct Connection using the supplied test leads. This allows for fast sound and meter response, helping technicians follow underground lines and identify their path effeciently and with ease. The locator provides depth measurement up to 6 m (20 ft) and a detection range extending to 30 m (100 ft), depending on field conditions, while highly sensitive Power and Radio Modes also help detect energised cables and radio signals travelling along underground lines.

Signal Modes & Frequency Options

To keep measurements steady in congested, noisy environments, the receiver employs advanced signal processing with semi‑automatic gain control so readings remain fast and stable even when conditions change – helping crews trace precisely without constant manual adjustment. Beyond the standard 33 kHz locating frequency, multiple active and passive tracing modes are available so technicians can choose the best option for the soil, depth and interference profile at hand.

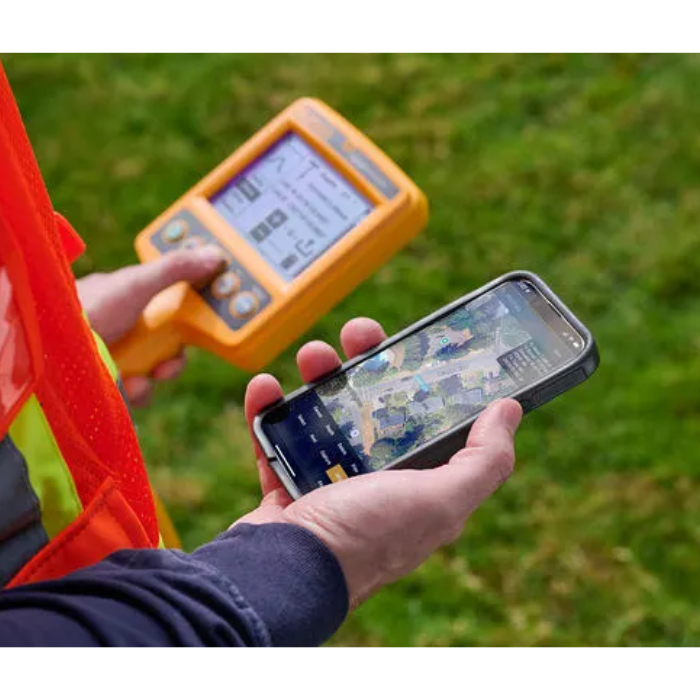

Real‑Time Digital Mapping & Documentation

The SmartTrace™ 2082BT seamlessly connects over Bluetooth® to the PointMan® mobile platform, allowing technicians to map and document each location in real time directly from the job site. GPS coordinates, signal type, depth, and date and time can all be captured automatically and stored digitally. Data can then be exported to major compatible GIS and asset-management systems such as Esri® and Trimble®, reducing manual marking and  transcription errors while simplifying job closeout and compliance reporting.

Safety & Compliance

The SmartTrace™ 2082 Series is the only underground utility locator with a CAT IV 600 V-rated transmitter that allows professionals to work confidently around live electrical systems, substations and industrial installations. Built and tested to IEC 61010 standards, the reinforced design enables safe tracing of both energized and de-energized circuits using a single instrument, reducing the need for multiple tools and improving operational efficiency. In addition, the system meets international EMC requirements (IEC 61326‑1, CISPR 11 Class A) and relevant FCC provisions, supporting reliable operation and regulatory compliance across job sites.

Rugged Design

Designed for demanding field environments, the SmartTrace™ 2082BT features a high-contrast grayscale display that remains readable in bright sunlight or light rain, paired with an interface that is quick and intuitive so that technicians are able to interpret signals and readings without unnecessary complexity. A rugged housing with IP54 protection guards against dust, moisture and impact, ensuring dependable performance on busy construction sites and industrial facilities.

The Elite kit includes a range of accessories that support accurate locating and efficient fieldwork. A signal clamp allows technicians to transmit a signal when direct electrical contact with the cable is not possible, while the A-Frame (sold separately) enables simple and effective fault locating. Additional productivity tools such as mapping flags and a spray canister stick help technicians clearly mark utility paths during surveys or excavation preparation.

Part number: 6074083

Key Features

  • Elite kit provides users with Bluetooth-enabled receiver, transmitter, carrying case, and other various accessories
  • Rugged and economical solution for locating energized and de-energized wires, cables, and pipes
  • Designed to accurately pinpoint underground utilities and buried services
  • Integrated Bluetooth connection with PointMan® mobile mapping platform enables real-time mapping and documentation directly from field
  • Real-time geolocation via PointMan® displays and logs asset positions directly from receiver to mobile map
  • PointMan® data exports to major geospatial and asset management systems, including Esri, Trimble, and other GIS software
  • Receiver features fast sound/meter response and performs easy depth measurements up to 6 m (20 feet)
  • Detection range can be extended up to 100 feet depending on conditions
  • Induction/direct test leads connection modes allows users to trace signals
  • Power/radio modes detect energized wires and radio signals on underground lines
  • CAT IV 600V rated transmitter meets highest electrical safety standard for industrial and utility work
  • Built with reinforced insulation and safety-tested to IEC 61010 standards for minimized risk in mixed-voltage environments
  • Transmitter's 33 kHz frequency is ideal for most locating applications
  • Advanced signal processing and semi-automatic gain control delivers fast and stable readings
  • Operators can precisely trace cables or pipes even in noisy environments
  • Multiple active and passive probes allows users to select optimal frequency for job
  • Grayscale display and fast, intuitive UX/UI ensure clear readings and quicker operation in any field condition
  • High-contrast display is readable in full sunlight or light rain for tracking signals without glare or washout
  • Ruggedised housing, IP54-rated ingress protection, and shock-tested design provide added durability

What's In The Box?

  • Receiver with Bluetooth
  • Transmitter
  • Carrying Case
  • Test Lead Kit
  • 2 x Replacement Fuses
  • 100 x Marking Flags
  • 6 x AA Batteries
  • 8 x D Batteries
Specification
  • Maximum Terminal-to-Earth Ground Voltage: 600V
  • Transmitter Power Supply: 8x D, IEC LR20
  • Transmitter Fuse Protection: 0.5A, 1000V, IR 30 kA, 6.3 x 32 mm
  • Transmitter Safety Compliance: IEC 61010-2-030, CAT IV 600V
  • Receiver Power Supply: 6x AA, IEC LR6
  • Receiver Safety Compliance: IEC 61010-2-030, CAT IV 600V
  • Receiver Electromagnetic Compatibility: IEC 61326-1, Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11, Group 1, Class A
  • Receiver Wireless Radio Frequency Range: 2400 MHz to 2483.5 MHz
  • Receiver Wireless Radio Output Power: Less than 100 mW
  • Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity (non-condensing): 0–90% (5–30 °C), 0–75% (30–40 °C), 0–45% (40–50 °C)
  • Altitude: ≤ 2000 m (≤ 6561 ft)
  • Ingress protection: IP54 (non-operating)
  • Pollution degree: 2
