- AF2082 A-Frame
- Carrying Case
- 6 x Battery LR6, AA
Fluke SmartTrace™ AF2082 A-Frame Cable Ground Fault Locator
SKU: FLUKEAF2082
- Quickly pinpoint underground cable faults by measuring voltage gradients in the ground
- Works with compatible Fluke underground utility locator systems
- Long battery life of up to 60 hours on six AA batteries
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£2,445.00
£2,934.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

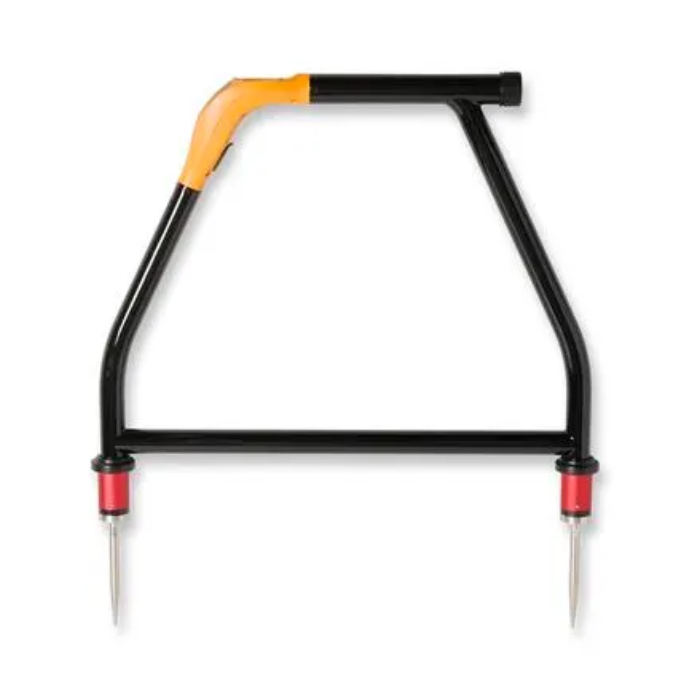

Fluke SmartTrace™ AF2082 A-Frame Cable Ground Fault Locator
The Fluke SmartTrace™ AF2082 A-Frame Cable Ground Fault Locator is a specialised accessory that, when used with compatible Fluke underground utility locator systems, helps technicians locate faults in underground cables by measuring voltage gradients in the ground and pinpointing damaged cables faster and with greater accuracy.
The AF2082 makes it easy to reduce the cost and downtime associated with finding underground cable faults, minimise service disruptions, and limit extensive excavation by guiding operators directly to the fault point. Simply insert the A-Frame probes into the ground and follow the measured signal
gradient to determine exactly where insulation breakdown or cable damage is occurring. Its sensitivity allows fault detection up to 2 MΩ, while a 1.28‑inch outdoor‑readable LCD with automatic backlight provides immediate visual guidance along with clear audio indications that pulse or tone depending on the left or right direction. This approach helps reduce guesswork and significantly cuts down on unnecessary digging.
The AF2082 makes it easy to reduce the cost and downtime associated with finding underground cable faults, minimise service disruptions, and limit extensive excavation by guiding operators directly to the fault point. Simply insert the A-Frame probes into the ground and follow the measured signal gradient to determine exactly where insulation breakdown or cable damage is occurring. Its sensitivity allows fault detection up to 2 MΩ, while a 1.28‑inch outdoor‑readable LCD with automatic backlight provides immediate visual guidance along with clear audio indications that pulse or tone depending on the left or right direction.
This approach helps reduce guesswork and significantly cuts down on unnecessary digging. When paired with Fluke underground utility locating systems, the AF2082 becomes part of a
comprehensive workflow for locating, tracing, and diagnosing buried utilities. After a cable or pipe has been traced using a transmitter and receiver, the A-Frame can be used to accurately identify the exact point of a ground fault, speeding up repair operations, improving troubleshooting efficiency, and reducing disruption to surrounding infrastructure.
Built for demanding field conditions, the AF2082 features a rugged construction and ergonomic design that is well suited for utility technicians, contractors, and maintenance teams working in environments such as power distribution networks, telecommunications infrastructure, industrial facilities, and municipal utilities. It runs on six AA (LR6) batteries, offering up to 60 hours of operation at typical temperatures and including automatic power‑off after 15 minutes of idle time to extend battery life during long days in the field.
Part number: 6074031
Key Features
- Quickly pinpoint underground cable faults by measuring voltage gradients in the ground
- Works with compatible Fluke underground utility locator systems, including the 2082 transmitter
- Reduces excavation time and speeds troubleshooting by guiding operators directly to the fault point
- Rugged, field‑ready IP54‑rated design built for demanding outdoor and industrial environments
- Easy‑to‑use A‑Frame with directional arrows, signal strength indicators, and audio cues for clear fault guidance

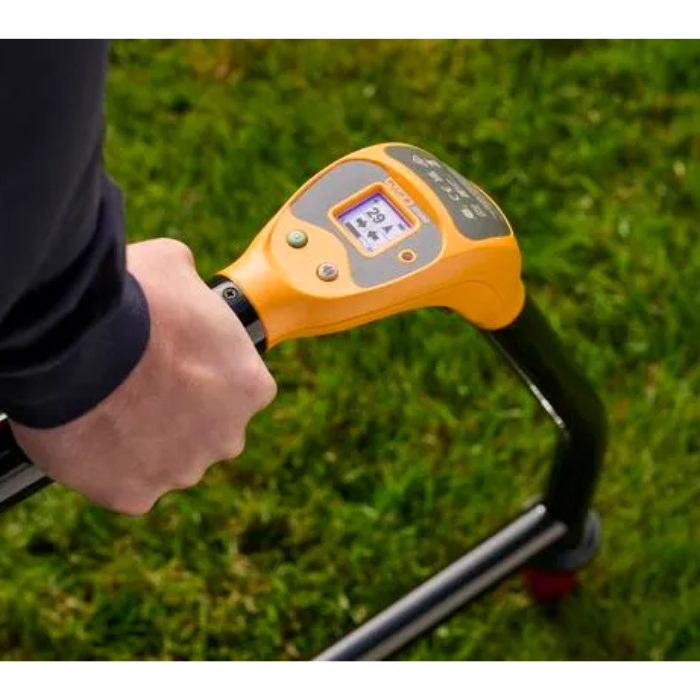

- Outdoor‑readable 1.28‑inch LCD with automatic backlight for visibility in varying light conditions
- High sensitivity for locating insulation breakdowns and cable sheath faults, supporting fault resistances up to 2 MΩ
- Instantaneous update rate provides real‑time feedback during fault tracing
- Long battery life, up to 60 hours on six AA batteries, with automatic power‑off to conserve energy
What's In The Box?
|
