Hikmicro AD21P Indoor Water Leak Detector

Hikmicro
SKU: HIKMAD21
  • Features SuperDetect technology
  • Offers two inspection modes: Quick Inspection Mode & Route Inspection Mode
  • Has four selectable indoor band pass filters
More Info
Typically ships in 7-10 working days

Hikmicro AD21P Indoor Water Leak Detector

The Hikmicro AD21P Indoor Water Leak Detector is a highly advanced acoustic detection tool designed to accurately locate hidden leaks in indoor plumbing systems across residential, commercial and public-sector buildings. By identifying leaks early, before they develop into major issues, the AD21P helps prevent costly water damage, structural deterioration and unnecessary repair expenses.

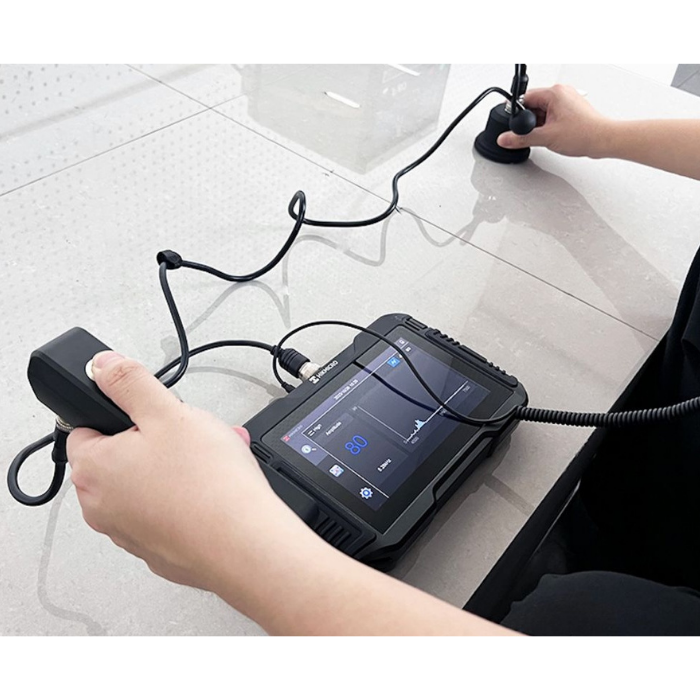

It comes with two specialised sensors: a hand-held probe and a high-sensitivity pick-up sensor. Together, they provide users with the flexibility to capture leak sounds from underfloor heating, wall cavities, ceilings and fire sprinkler networks.

One of the standout features on the AD21P is its SuperDetect technology which uses Hikmicro’s proprietary algorithm that intelligently analyses acoustic signals and visually highlights leak locations on the bright 7" LCD touchscreen. This significantly reduces the need for expert interpretation, allowing even first-time users to achieve professional-level accuracy.

With four selectable digital band-pass filters, a wide frequency range of 150 Hz to 7,500 Hz, and up to 80 dB amplification, the AD21P clearly isolates leak sounds from background noise. High-quality noise-cancelling headphones (included) improve listening accuracy, allowing for reliable leak detection even in busy or challenging acoustic environments.

The AD21P offers two practical inspection modes to suit different skill levels and workflow requirements:

  • Quick Inspection Mode – Ideal for experienced users who already know which area is affected and need to pinpoint the exact leak location quickly.
  • Route Inspection Mode – Designed for beginners or systematic inspections where users can evaluate multiple areas to narrow down the leak source, then switch to Quick Mode for accurate location.

For documentation, reporting and further analysis, the AD21P features built-in storage for images and audio recordings. Inspection data can be reviewed directly on the unit or transferred to a PC, making it an invaluable tool for maintenance logs, client reports, repair planning and verifying leak locations before opening walls or flooring.

Built for real-world conditions, the AD21P features IP-rated sensors (IP54 for the hand-held sensor, IP66 for the pick-up sensor), and a 1.2 m drop-tested main unit that ensures reliable operation in tough environments. The responsive touchscreen, 1024 × 600 resolution, and intuitive dual-wheel design allow for quick and easy parameter adjustments, even with gloves on.

The AD21P is powered by a long-lasting rechargeable battery, that can provide up to 11 hours of continuous use. It charges to 90% in about 3 hours and reaches full capacity in about 6 hours, making it ideal for full-day fieldwork. Additional safety features include active hearing protection, which automatically stops audio playback through the headset when dangerously loud noises are detected, thereby helping prevent hearing damage.

Part number: 308200564

Key Features

  • Accurately locates hidden indoor water leaks
  • SuperDetect technology
  • Large 7" LCD touchscreen with 1024 × 600 resolution
  • Two sensors included: hand-held probe and high-sensitivity pick-up sensor
  • Four digital band-pass filters covering 150 Hz to 7,500 Hz
  • Up to 80 dB audio amplification
  • High-quality noise-cancelling headset
  • Active hearing protection
  • Quick Inspection Mode
  • Route Inspection Mode
  • Built-in storage for saving images and audio recordings
  •  IP-rated sensors (main unit IP40, hand-held IP54, pick-up IP66)
  • Drop-tested from 1.2 m
  • Intuitive touchscreen interface with dual-wheel design
  • Up to 11 hours continuous operating time
  • Fast charging: ~3 hours to 90% and ~6 hours to full
  • Suitable for residential, commercial and public sector leak detection

What's In The Box?

  • Printed quick start guide
  • Soft pouch
  • Handheld sensor
  • Handle grip
  • Pick up sensor
  • Headset
  • Short listening stick
  • Neck strap
  • International charger x 5 (US, UK, EU, AU, CN)
  • 2-in-1 USB-C to USB-CA cable
  • Sensor connection cable
Specification
  • Amplification: Manual
  • Frequency Range: 150~7500Hz
  • Band Pass Filters:
    Indoor low frequency 150Hz to 3000Hz
    Indoor mid-frequency 3000Hz to 6000Hz
    Indoor high frequency 4500Hz to 7500Hz
    Indoor all-pass 150Hz to 7500Hz
  • SuperDetect: Yes
  • Display: 1024 × 600 Resolution，7"LCD Touch Screen
  • Screen Brightness: Manual/Auto
  • Storage Media: Built-in EMMC(4GB)
  • Image Storage Capacity: Approx. 60,000 Images, viewable only on PC
  • Audio Storage Capacity: Approx. 10 hours, viewable only on PC
  • Audio File Format: .wav
  • Image Format: JPEG
  • USB Interface: USB 2.0,USB Type-C
  • Battery Type: 3.6V~3.635V, Rechargeable Li-ion Battery
  • Battery Operating Time: 11h
  • Battery Charging Time: 4h
  • Protection Level:
    Main Unit:IP40
    Hand held sensor:IP54
    Pick-up sensor:IP66
  • Drop Test Height: 1.2 m(3.93 ft)
  • EMC:
    EN55032:2015+A11:2020
    EN50130-4:2011+A1:2014
    EN61000-3-3:2013
  • Working Temperature Range : -10 °C to 50 °C (14 °F to 122 °F)
  • Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)
  • Relative Humidity: ＜90 % non-condensing
  • Weight:
    Main Unit: 781g(1.72 lb)
    Hand held sensor: 249g(0.54 lb)
    Pick-up sensor: 488g(1.08 lb)
    Headset: 214g(0.47 lb)
