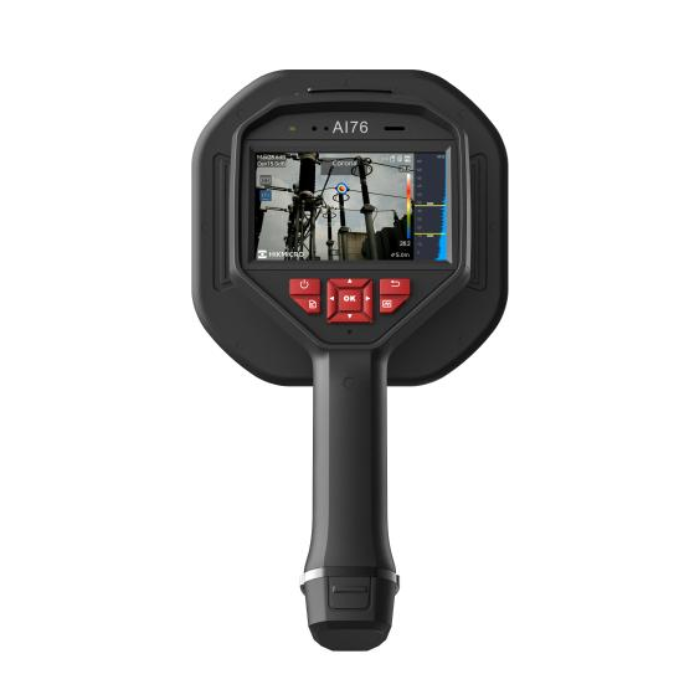

Hikmicro AI76 Acoustic Imaging Camera

Hikmicro
SKU: HIKMAI76
  • Features 136 low-noise MEMS microphones and advanced sound imaging across 0 to 96kHz frequency range
  • Identifies partial discharge faults, including corona, surface, floating, and particle discharges
  • Includes a 4.3-inch LCD touchscreen display with an 800 × 480 resolution
More Info
Typically ships in 3-5 working days

Hikmicro AI76 Acoustic Imaging Camera

The Hikmicro AI76 Acoustic Imaging Camera is a diagnostic tool designed to detect gas leaks and partial discharges in industrial and electrical environments. Featuring 136 low-noise MEMS microphones and an adjustable frequency range of 0 to 96kHz, the AI76 ensures users locate even the smallest compressed air or gas leaks with high accuracy, detecting leaks as small as 0.0047 L/min at 6 bar from just half a metre away.

In addition to leak detection, the AI76 is engineered to identify partial discharge faults, including corona, surface, floating, and particle discharges, making it an important tool for electrical maintenance teams. It automatically detects discharge types at either 50 or 60Hz and provides real-time visual feedback by overlaying acoustic data onto a digital image.

The AI76 Acoustic Imaging Camera features a large 4.3-inch LCD touchscreen display with an 800 × 480 resolution, offering a clear and intuitive interface to visualise sound data. With eight acoustic palettes to choose from and a digital zoom range of 1x to 16x, users can tailor their view for maximum clarity in any environment. The AI76 captures acoustic images at 25fps and stores them on a removable 64 GB SD card that is capable of holding up to 18000 images or 60 hours of video.

The included Analyser Acoustic Software streamlines data analysis and reporting, allowing users to review, annotate (via voice or text), and export professional inspection reports. The AI76 also includes built-in Wi-Fi (2.4/5 GHz), Bluetooth 4.1, USB-C, and HDMI-D ports, offering flexible data transfer and connectivity. Built for field use, the AI76 is IP54 rated, drop-tested to 1.2 metres, and is able to operate in harsh environments that range from –20 °C to 50 °C. It is powered by a rechargeable, swappable Li-ion battery offering around 2 hours of runtime per charge.

part number: HM-AP5DN-W/W-AI76

Key Features

  • 136 Low-noise MEMS Microphones
  • Adjustable Bandwidth (0 kHz – 96 kHz)
  • 25 fps Acoustic Image Frame Rate
  • Detects gas leaks as small as 0.0047 l/min @ 6 bar from 0.5 m.
  • Real-time sound source localisation
  • Real-time estimated leak rate, leak cost, and leak level for gas leak detection
  • Partial discharge detection to identify corona, floating, surface, and particle discharge
  • Automatic discharge detection at 50/60 Hz.
  • Analyser acoustic software for analysing images and export reports
  • 4.3’LCD Touch Screen  with 800 × 480 Resolution
  • 1.0x to 16.0x digital zoom for detailed inspection.
  • Supports 8 acoustic palettes
  • 64GB removable SD card that stores up to 18,000 images and 60 hours of video
  • Wi-Fi and Bluetooth 4.1 connectivity for wireless data transfer
  • USB-C and HDMI-D for seamless integration with other devices
  • IP54-rated weather protection
  • Rechargeable Li-ion battery with a 5-hour charge time.
  • Operating Temperature: -20 °C to 50 °C

What's In The Box?

  • Hikmicro AI76 Acoustic Imaging Camera
  • Mini HDMI to HDMI Cable
  • 2-in-1 USB-C to USB-CA Cable
  • Tripod Mount Adaptor
  • MIC Protective Cap
  • Tripod Mount Adaptor
  • Hand Strap
  • Torx Screwdriver
  • Screw
  • Hand Strap Brackets Left and Right
  • 64GB Micro SD Card
  • Interchangeable Battery
  • Charging Base with Adaptor and Plugs (UK/US/EU/AU)
  • Handy Carrying Case
  • Printed Quick Start Guide
  • Calibration Certificate
Specification

Acoustic

  • Number of Microphones: 136
  • Acoustic Image Resolution:  800 × 480
  • Bandwidth: 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
  • Distance: 0.3m~150m
  • Acoustic Image: Palette White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
  • Camera FOV: 50.2°× 35.4°
  • Sound Intensity Display: Peak Point
  • Acoustic Image Frame Rate: 25fps
  • Dynamic Range: :ow Limit: <-15dB; High Limit: >120dB
  • Leak Rate: >0.0047 l/min @ 6 bar from 0.5 m (1.64 ft); >0.0073 l/min @ 5 bar from 1 m (3.28 ft)
  • Discharge Detection: Automatic detection 50 / 60 Hz
  • Discharge Type: Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge

Image display

  • Display: 800 × 480 Resolution, 4.3’LCD Touch Screen
  • Screen Brightness: Manual/Auto
  • Digital Zoom: 1.0x to 16.0x continuous
  • Data Storage and Communication
  • Storage Media: Removeable 64GB SD card
  • Image Storage Capacity: 18000 images
  •  Annotations: Voice note: max. 60 seconds; Text note: max. 255 characters
  • Video Storage Capacity: 60 Hours
  • Video File Format: MP4

General

  • Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
  • Bluetooth: Bluetooth 4.1
  • USB Interface: USB Type-C
  • HDMI Interface: HDMI-D
  • Battery Operating Time: Approx. 2 hours
  • Battery Type: Dismountable and Rechargeable Li-ion Battery
  • Battery Charging Time: 5 hours to full charge
  • Protection Level: IP54
    Power Supply: 5V DC/2A (Charging via USB)
  • Drop Test Height: 1.2 m (3.94 ft)
  • Safety: IEC 61010-1
  • EMC: EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1
  • Working Temperature Rage: -20 °C to 50 °C (-4 °F to 122 °F)
  • Storage Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F)
  • Relative Humidity: <95 % non-condensing
  • Weight: Approx. 1200 g (2.64 lb)
  • Dimensions: 310.4mm×165mm×117mm (12.22 × 6.49 × 4.61 in)
  • Tripod Mounting: UNC ¼”-20
  • Vibration: 2g, IEC 60068-2-6
  • Shock: 25 g, IEC 60068-2-27
