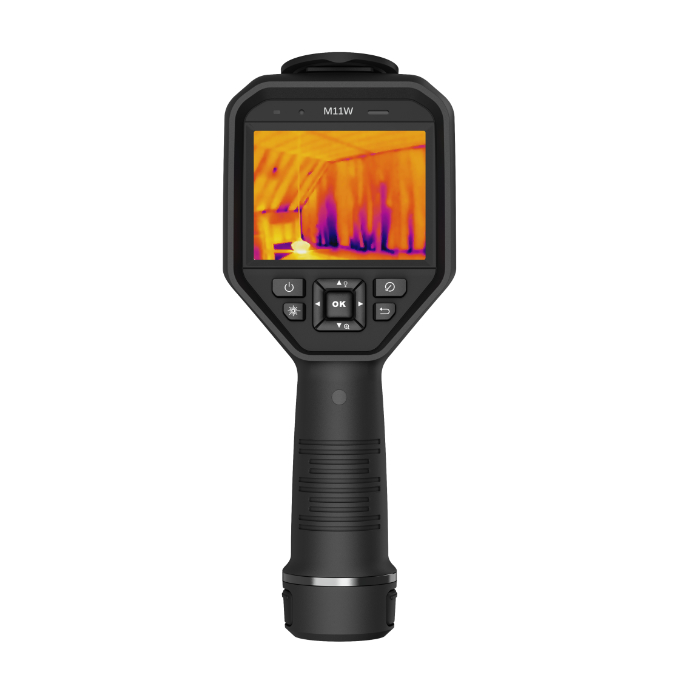

Hikmicro M11W Thermal Imaging Camera (Auto Focus)

Hikmicro M11W Thermal Imaging Camera (Auto Focus)

The Hikmicro M11W Thermal Imaging Camera (Auto Focus) provides users with a specifically designed thermography camera perfect for professional inspections including large objects that require a wide field of view (37.2º x 27.8º) fixed focus lens and an 8MP resolution visual camera. The M11W has an infrared resolution of 192 x 144 (27,648 pixels) which with Super IR technology this can be boosted to 384 x 288 (110,592 pixels). The M11W allows users to measure temperature with a range of -20ºC to 550ºC (High temperature measurement accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F.)

The M11W camera boasts a 640 x 480 resolution 3.5" LCD touch display providing clear images and can help to streamline the camera operation. The digital zoom from 1.0x to 8.0x continuous zoom. The M11W has an incorporated long distance laser light to further improve accuracy of thermography images and videos by helping to show the centre point of a target and an LED light should you be working in poorly lit environments.

Multiple image modes of the M11W allow the user to choose between Thermal, Fusion, PIP and Optical modes which best suit the operators needs. The M11W supports 3 level, span modes (manual, automatic and 1 Tap) to instantly improve the image contrast and possibly highlight potential issues.

The M11W has a removable 32GB Micro SD card that allows for up to 60,000 images to be stored or approximately 15 hours of MP4 video. Users are able to add up to 60 seconds of voice notes and 200 characters of text notes annotations to allow for further analysis to be conducted at a later time.

Thanks to the included two interchangeable rechargeable batteries (approx 6 hour battery life each), the M11W can be used for a full day in the filed without the need for recharging. Rugged and durable, the M11W has been drop tested to 2m (6.6ft) and is IP54 rated offering protection from both water and dust. The camera comes complete with a carry case to ensure protection both in transport and storage of the camera.

Hikmicro Viewer App

The Hikmicro M11W is compatible with the Hikmicro Viewer App via Wi-Fi that allows for the transfer of images and videos from the camera to a mobile device. Using the app, the operator can further analyse, share images and generate reports in real time even on-site.

Hikmicro part number: HM-TP21S-3AQF/W-M11W

Key Features

• Focus free
• 8MP resolution visual camera
• Field of view (37.2º x 27.8º)
• Infrared resolution of 192 x 144 (27,648 pixels)
• Super IR technology for 384 x 288 (110,592 pixels)
• Measure temperature with a range of -20ºC to 550ºC
• 640 x 480 resolution 3.5" LCD touch display
• Digital zoom from 1.0x to 8.0x continuous zoom
• Incorporated long distance laser light to further improve accuracy of thermography images and videos
• Compatible with the Hikmicro Viewer App
• Centre point of a target and an LED light should you be working in poorly lit environments
• Supports multiple palettes
• Bi spectrum image fusion, Picture in Picture preview
• Removable 32GB Micro SD card that allows for up to 60,000 images to be stored or approximately 15 hours of MP4 video
• Add up to 60 seconds of voice notes and 200 characters of text notes annotations
• Drop tested to 2m (6.6ft)
• Provided with two interchangeable rechargeable batteries (approx 6 hour battery life each)
