Hikmicro MINI2PLUS V2 Thermal Imaging Camera for Smartphones

Hikmicro MINI2PLUS V2 Thermal Imaging Camera for Smartphones

The Hikmicro MINI2PLUS V2 is a smartphone-compatible thermal imaging camera designed for precision and convenience. With high thermal resolution and accurate temperature measurements, it allows users to easily identify and address potential issues. Whether inspecting areas around the home or troubleshooting HVAC systems, the Mini2 V2 stands out as a top industry choice. Its versatility is further enhanced by compatibility with both iOS and Android devices, while SuperIR image enhancement ensures clear and detailed imaging for easy interpretation.

The MINI2PLUS V2 sets itself apart from the Mini2 V2 by featuring a manual focus lens, a 6.9mm focal length, and a field of view (FOV) of 25° x 18.8°. These features provide users with additional control and precision during inspections.

The field of view is ideal when scanning walls, floors and facades when aiming to locate issues such as water leaks, insulation issues, and air infiltration. The MINI2PLUS V2 offers precise temperature measurement within a range of -20°C (-4°F) to 400°C (752°F), boasting an impressive accuracy of ±2°C (±3.6°F) or ±2%. Its compact and lightweight design enhances portability, making it convenient for on-the-go use in various environments.

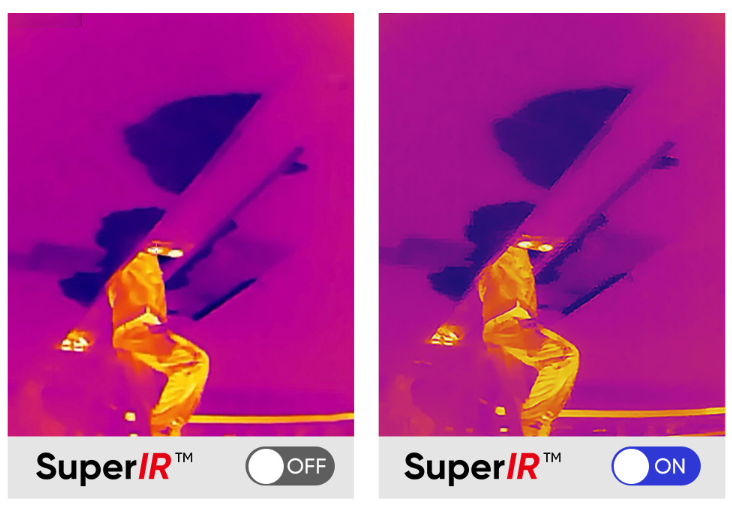

SuperIR Image Enhancement

The Mini2Plus V2 features SuperIR Image Enhancement software, powered by a highly sensitive VOx detector with a NETD of less than 40mK and a resolution of 256 x 192. This advanced technology delivers crystal-clear imagery, enabling users to effortlessly identify and address potential issues.

The Mini2Plus V2 seamlessly connects to iPhone or Android smartphones and tablets, allowing for quick setup and use within seconds. Included adaptors ensure compatibility even with thick phone cases, while an extension cable enables access to hard-to-reach areas that are otherwise difficult to inspect.

Powered directly by your phone, the device eliminates the need for a charging cable. Its low power consumption ensures minimal impact on your phone’s battery life, maximizing runtime and offering reliable performance in various environments. Built to withstand demanding conditions, the Mini2 V2 features a three-year warranty, a one-meter drop-tested design, and an IP40 rating for added protection.

With multiple professional settings, users can achieve optimal thermal imagery and accurate temperature readings across various surfaces. The device also offers customizable color palettes, including 15 preset options for convenience. Common applications of the Mini2 V2 include measuring oven temperatures, locating pets, inspecting computer cooling systems, evaluating insulation, troubleshooting HVAC systems, and working on automotive projects.

Hikmicro part number: HM-TJ32-7RF-Mini2Plus V2

Key Features

• Has a thermal resolution of 256 x 192 (49,152 pixels)
• SuperIR image enhancement technology is available on live view and on captured images
• 3-in-1: USB-C (iOS & Android), Lightning (Includes a Lightning to USB-C adaptor)
• Has an accuracy of ±2℃ (-20°C to 100°C) ; ±2 % (100°C to 400°C)
• Compatible with both iOS and Android devices
• Optimised image enhancement algorithms provide clear thermal images
• Has a 25° lens which gives a large FOV, which is ideal for walls, floors, and facades
• Weighs only 26g which ensures simple transportation and usage on a variety of job sites
• Simply plug the Mini2Plus V2 in and use within seconds in both difficult-to-view and hard-to-reach areas
• Battery-free and is powered by the smartphone device, ensuring it can be used with ease and wherever you are
• IP40 rated, 1 meter drop tested and a three year warranty
• Has 15 preset colour palettes and allows the user to create a customised palette
• Can be used in a range of practical scenarios for convenience
