Hikmicro PocketE Thermal Imaging Camera

SKU: HIKMPOCKETE
  • Thermal image camera boasting a 96 x 96 (9,216 pixels) boosted to 240 x 240 (57,600 pixels) with Hikmicro SuperIR
  • Measure temperature between -20°C to 350°C (-4 °F to 662 °F)
  • 3.5" LCD touchscreen with auto rotation
More Info
Typically ships in 5-7 working days

Hikmicro PocketE Thermal Imaging Camera

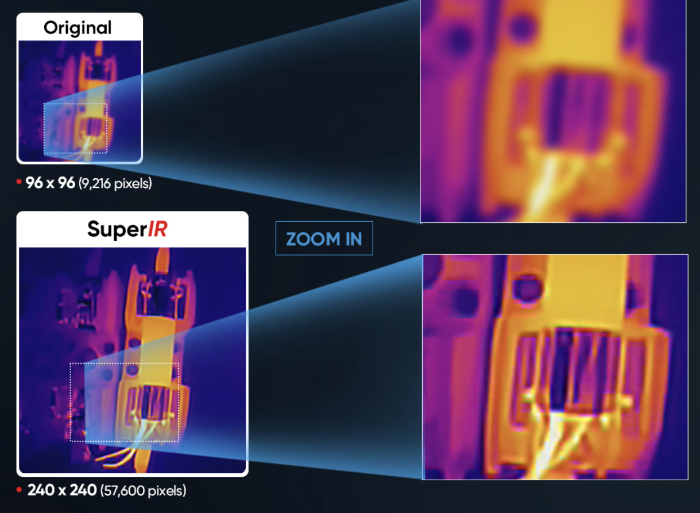

The Hikmicro PocketE Thermal Imaging Camera provides a pocket sized thermal image camera boasting a 96 x 96 (9,216 pixels) IR resolution, that can be enhanced using Hikmicro SuperIR image enhancement technology to upscale thermal images to 240 x 240 (57,600 pixels) with a 25 Hz image frequency when panning objects, with a minimum focus distance of 0.1m, the Hikmicro PocketE ideal thermal camera is ideal for use in building inspections, HVAC, electrical and mechanical equipment maintenance.

With a built in IR camera and a 0.3MP visual camera, users are able to switch between five image modes (Thermal, Visual, PIP, Fusion and Blending). Using the fusion blend allows for key details from a 0.3M pixels visual camera to the IR image for added extra detail and clarity. The Blending function will blend partially transparent infrared and visible images into a single view. PIP function will overlay a fixed section of a thermal image onto a digital photo enabling clarifications of anomaly locations. The Thermal camera provides users with the option to choose from a number of colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red.

The 3.5" LCD touchscreen with auto rotation, provides a large and intuitive interface where users can view temperature measurements of -20°C to 350°C (-4 °F to 662 °F) with an accuracy pf Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F). The Hikmicro PocketE offers a 1.0x to 4.0x continuous digital zoom.

Hikmicro Viewer App

The inbuilt 4GB memory allows for storage of approximately 30,000 images or 20 hours of MP4 video, complete with onboard recording and playback. Users are able to add to 200 character note annotations for future notes and analysis. With wireless connectivity the Hikmicro PocketE, allows users to screen stream and download images with Wi-Fi to a smart device with the Hikmicro Viewer App in real time. The Hikmciro is powered by a rechargeable Li-ion battery allowing for up to four hours continuous use.

The Hikmicro PocketE is ideal to scan large areas quickly, to find possible water leaks, insulation issues and air infiltration thanks to the 50º wide angle Field Of View. With full screen radiometric images and automatic maximum, minimum and centre spots shown onscreen, users are able to accurately pinpoint temperature discrepancies quickly. With a simple 1-tap level and span, users can tap the screen once and the image contrast is instantly increased and potential problems highlighted. The simple functionality is further shown, thanks to the Hikmicro PocketE 1-Click IR function where users can save visual and thermal images simultaneously with one click saving time in the field.

The Hikmciro PocketE boasts IP54 protection rating, offering proaction from dust and water ingress. Further protection is provided by the included wrist strap and soft carry case. The camera is also drop tested up to 2m. The incorporated LED light provides uses the opportunity to work in even the darkest of environments with a user defined high temperature alarm should high temperatures be detected.

Key Features

  • Thermal resolution: 96 × 96 (9,216 pixels), NETD: < 50 mK (@ 25°C, F# = 1.0)
  • SuperIR: 240 × 240 (57,600 pixels)
  • Temperature Measurement from -20°C to 350°C (-4°F to 662°F)
  • Accuracy: Max. (± 2°C/3.6°F, ± 2%)
  • 112 : 1 Distance to spot ratio (D : S)
  • 25HZ image frequency
  • Thermal, Fusion, PIP, Visual, and Blending modes
  • Manual, automatic, and 1-Tap level and span
  • Built in 4GB memory
  • LED work light
  • 1.0× to 4.0× continuous digital zoom
  • 0.3 MP visual camera
  • Up to 4 hours continuous use
  • 320 x 240 Resolution, 3.5" LCD Touch Screen with auto-rotation
  • IP54 protection rated
  • 2m drop tested
  • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Hikmicro Part Number: HM-TP40-1AQF/W-PocketE

What's In The Box?

  • Hikmicro PocketE Thermal Imaging Camera with wrist strap
  • Soft carrying pouch
  • USB 2.0 A to USB Type-C Cable
  • Quick Start Guide
  • Calibration Certificate
Specification

Infrared Image

  • IR Resolution: 96 x 96 (9,216 Pixels)
  • SuperIR 240 x 240 (57,600 pixels)
  • NETD: <50 mK (@25ºC, F#=1.0)
  • Image Frequency: 25Hz
  • Detector Pitch: 12 μm
  • Spectral Range: 7.5 to 14 μm
  • F-number: F1.0
  • Focal Length: 1.35mm
  • Field of View (FOV) 50º x 50º
  • Spatial Resolution (IFOV): 8.89 mrad
  • Focus Mode: Focus Free
  • Distance to Spot Ratio (D:S): 112:1
  • Min Focus Distance: 0.1m (0.33ft)

Image Display

  • Visual Camera: 640 x 480 (0.3 MP)
  • Display: 320 x 240 Resolution, 3.5" LCD Touch Screen with auto-rotation
  • Screen Brightness: Manual
  • Digital Zoom: 1.0x to 4.0x continuous
  • Image Modes: Thermal/Visual/PIP/Blending
  • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis

  • Object Temperature Range: -20°C to 350°C (-4 °F to 662 °F)
  • Accuracy: Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
  • Measurement Tools: Center Spot, Hot Spot, Cold Spot
  • Level and Span Mode: Auto/Manual/1-Tap Touchscreen

Data Storage and Communication

  • Storage Media: Built-in 4GB flash memory
  • Image Storage Capacity: Approx 30,000 images
  • Annotations: Text note: max 200 characters
  • Video Storage Capacity: Approx 20 hours
  • Video File Format: MP4 video

General

  • Wi-Fi: 802.11 b/g/n ( 2.4 GHz )
  • USB Interface: USB Type-C
  • LED Light: Yes
  • Battery Type: Rechargeable Li-ion battery
  • Battery Operating Time: Approx 4 hours
  • Battery charging Time: Approx 2.5 hours fully charged/li>
  • Protection Levels: IP54
  • Drop Test Height: 2m (6.56ft)
  • Working Temperature Range: -10°C to 50°C (14°F to 122°F)
  • Storage Temperature Range: -42°C to 60°C (-4°F to 140°F)
  • Relative Humidity: <95% non-condensing
  • Weight: Approx 218g (0.481lb)
  • Dimensions: 138.45 x 85.2 x 23.6mm (5.45 x 3.35 x 0.93in)
  • Tripod Mounting: UNC ¼”-20
