Trend FiberTEK IV-MM LED and SM Laser Kit

SKU: IDEALR164010
  • Ideal for cable certifying in conjunction with the Trend LANTEK IV
  • Compatible with multiple connection types including SC, FC and ST
  • Capable of testing multimode and single-mode fibre optic cables
More Info
Typically ships in 1-3 working days

Trend FiberTEK IV-MM LED and SM Laser Kit

Compatible with the Trend LANTEK IV Cable Certifier, the Trend FiberTEK IV-MM LED and SM Laser Kit allows the user to test single-mode and multimode fibre optic data cables. Testing is compatible with internationals standards such as ANSI/TIA and ISO/IEC and the 1 and 3 jumper field calibration functions help ensure ongoing accuracy.

The Trend FiberTEK IV Kit is capable of bi-directional measurement and has support for encircled flux testing (optional extra). The red laser light source in the module detects faults and data ports whilst a separate LED flashes green when connected to the LANTEK IV and red if other light sources are detected.

When using the Trend FiberTEK IV, there is no need to manually merge directorial tests into one record, thus streamlining the testing process. With supplied adaptors, the FiberTEK IV Set can support the most common connector types including SC, FC and ST.

The FiberTEK IV-MM LED & SM Laser Kit contains two multimode FiberTEK IV modules, two single-mode FiberTEK IV modules, a lockable carry case, six adaptors, an SC-SC patch cord and a quick reference guide.

Trend part number: R164010

Applications

  • Modular plug terminated link
  • Direct attach channel device link
  • Permanent link
  • Channel
  • 5e / 6 / 6a patch cord and end-to-end link

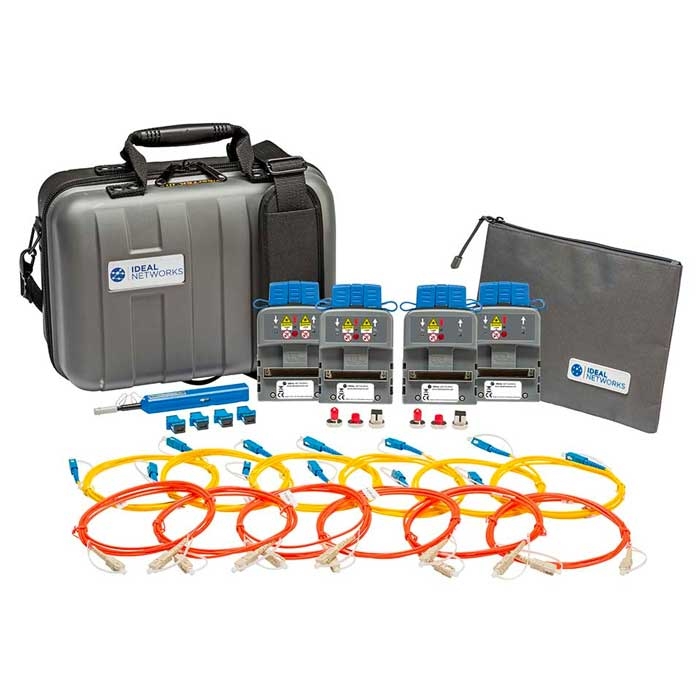

What's In The Box?

  • 2 x multimode FiberTEK IV modules
  • 2 x single-mode FiberTEK IV modules
  • Lockable semi-rigid carrying case
  • 2 x SC adaptor for modules
  • 2 x FC adaptor for modules
  • 2 x ST adaptor for modules
  • SC-SC patch cords, 6 x 9µm MMF
  • Quick reference guide
