IPEC HFCT48 Add-on Sensor

IPEC HFCT48 Add-on Sensor

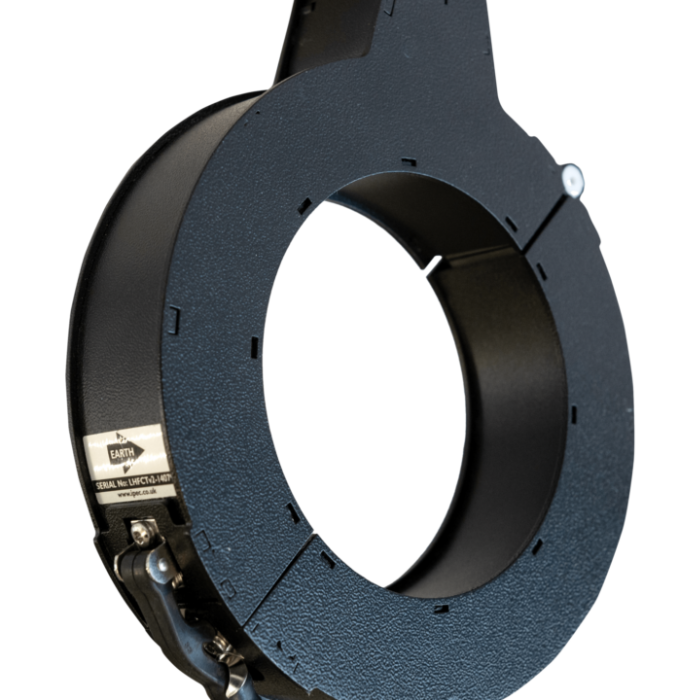

The IPEC HFCT48 Add-on Sensor is a high-frequency current transformer designed to be reliable in picking up partial discharge signals found primarily in cables. The HFCT48 features a split-core ferrite design to allow users to fit the sensor retrospectively onto the earth straps without disconnecting the system. Its durable aluminium housing offers RF shielding to maintain measurement accuracy and provide improved performance in noisy environments. Its hinged body and quick-release latch make it quick and easy to use in the field.

In operation, PD activity within solid high-voltage insulation generates small high-frequency currents that travel through the electrical system’s earth conductor toward the substation ground. The HFCT48 captures these impulses as they pass through the transformer, providing a sensitive and effective method for detecting PD. The HFCT48 is suitable for all earth and neutral PD monitoring applications.

part number: ACPDDPROHFCT48

Key Features

• Detects partial discharge signals, predominantly in cables.
• Has a split-core ferrite design
• Aluminium housing plus durable construction
• Hinged body with quick-release latch
• Accurately captures PD-induced high-frequency impulses
