Keller LEO5 (700bar) Digital Manometer
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
- Measures pressure in industrial settings from 0 to 1000bar with ±0.05% FS accuracy
- Readings shown on a digital screen or transmitted through analogue output
- Large internal memory that is downloadable via the USB port
Related Categories
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
- Measures pressure in industrial settings from 0 to 1000bar with ±0.05% FS accuracy
- Readings shown on a digital screen or transmitted through analogue output
- Large internal memory that is downloadable via the USB port
Related Categories
Keller LEO5 Digital Manometer (700bar)

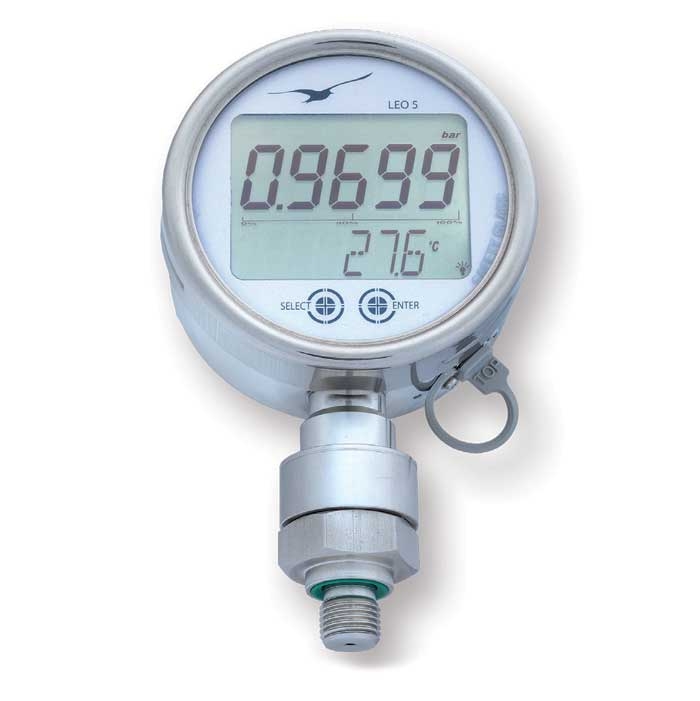

The Keller LEO5 Digital Manometer is a highly accurate industrial pressure gauge. It has an extended pressure measurement range of 0 to 700bar with accuracy of ±0.05% FS and resolution of 200mbar. Pressure measurements are taken via a G ¼” pressure connector and a piezoresistive transducer. The gauge can also measure temperature between 0˚C to 50˚C with ±1˚C accuracy.
The Keller LEO5 has a clear digital screen that shows temperature and pressure readings simultaneously. There is a min/max recording function, a zero function and a digital calibration feature with an end point and zero point. Peak mode takes 5000 readings per second and records the highest pressure reached during a certain period.
Up to 56,000 readings can be saved to the Keller LEO5’s internal memory with accompanying time stamps and it is also capable of producing analogue current and voltage signals. The pressure gauge has a USB port that allows the user to download data, charge the batteries, and calibrate the instrument from a PC.
The Keller LEO5 has an IP66 ingress protection rating thanks to stainless steel casing and a sealed glass front. A battery life of up to 1600 hours is available following a full charge.
Keller part number: 303040.xxxx
Key Features
- Absolute pressure range: 700bar
- Absolute pressure accuracy: ±0.05% FS
- Absolute pressure resolution: 200mbar
- Temperature range: 0˚C to 50˚C
- Temperature accuracy: ±1˚C
- Peak measurement mode
- Analogue signal via voltage and current
- Internal memory: 56,000 readings
- USB port for configuration, downloading and charging
- IP66-rated steel and glass casing
| ECO2 | LEO1 | LEO2 | LEO3 | LEO5 | LEO Record | LEX1 | |
|---|---|---|---|---|---|---|---|
| -1 to 3bar | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| -1 to 30bar | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 0 to 100bar | ✔ | ||||||
| 0 to 300bar | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 0 to 400bar | ✔ | ||||||
| 0 to 700bar | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| 0 to 1000bar | ✔ | ✔ | ✔ | ✔ | |||
| Accuracy | ±0.5% FS | ±0.1% FS | ±0.1% FS | ±0.1% FS | ±0.05% FS | ±0.1% | ±0.05% FS |
| Resolution(at smallest range) | 10mbar | 1mbar | 1mbar | 1mbar | 1mbar | 1mbar | 0.1mbar |
| Temperature range | 0˚C to 50˚C | ||||||
| Temperature accuracy | ±1˚C | ||||||
| Intrinsically safeversion | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| Peak mode | ✔ | ✔ | |||||
| Pressure connector | 7/16" UNF | G 1/4" | 7/16" UNF | G 1/4" | G 1/4" | G 1/4" | G 1/4" |
| Analogue output | ✔ | ✔ | |||||
| Internal memory | ✔ | ✔ | ✔ | ||||
| Data port | RS485 Binder | USB | RS485 Fischer | RS485 Fischer | |||
| Compatible withKeller-Bus protocol | ✔ | ✔ | ✔ |
| No |
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Keller LEO5 Datasheet | 549.6 KB | Download |
