Kewtech KTD40 Multifunction Loop Impedance Tester

SKU
KEWTKTD40
  • Low current / no-trip loop test suitable for both passive & electronic RCDs.
  • High current loop test for "true" loop impedance ubstead of loop resistance.
  • PFC or PSC values displayed after completion of a loop test.
More Info
inc VAT £226.80 ex VAT £189.00
Discontinued

Product Details

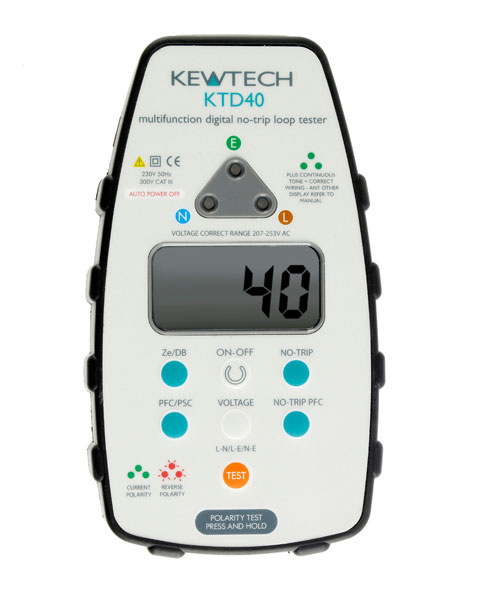

Kewtech KTD40 Multifunction Loop Impedance Tester

This product is discontinued, it has been replaced by the Kewtech KT400.

The Kewtech KTD40 uses the latest in electronic design to produce a compact and multifunctional test instrument. It includes a full socket tester that will check for any 18 socket wiring conditions. It will also check for a hazardous reversal of live and neutral at the supply through a Polarity Test Pad. The fault is indicated by a chart on the face of the unit. This KTD40 test instrument is also capable of measuring true loop impedance. The benefit of this is that it provides more relevant information when testing PSC/PFC because the resistance of the supplier's transformer is measured as well as the pure loop resistance.

The Kewtek KTD40 has an optional distribution loop test lead set meaning a high current, two wire test can be carried out either manually or using the auto-test function. Once a test has been conducted, the reading is displayed and the PFC or PSC can be shown instantly on the press of a second button.

Kewtech KTD40 Multifunction Loop Impedance Tester Key Features:

  • Low current non-trip and high current loop impedance (Patented).
  • High current test reads true loop impedance.
  • Full socket tester functionality built in.
  • Unique mains supply polarity test.
  • Instant readout of PFC/PSC.
  • Voltage test function L-N, L-E & N-E.
  • Fully protected against accidental to phase to phase protection.
More Information
Specification

Wiring Test

  • Detects missing E or N (>15kΩ)
  • Detects L-E or L-N swap
  • Detects Live – Earth/Neutral reversal by use of Polarity Test Pad
  • Phase – Neutral voltage measurement ± 1% ± 1V
  • Phase – Earth voltage measurement ± 1% ± 1V
  • Neutral – Earth voltage measurement ± 1% ± 1V

Loop Measurement

  • No trip mode 3 wire testing Phase – Neutral – Earth all connected.
  • Test current <15mA at 253V AC
  • 0.00 to 9.99Ω ± 5% ± 5 digits
  • 10.00 to 99.9Ω ± 3% ± 3 digits
  • 100.00 to 500Ω ± 3% ± 3 digits
  • High current mode 2 wire testing Phase-Neutral or Phase-Earth connected using true impedance measurement.
  • 0.00 to 9.99Ω ± 3% ± 3 digits
  • PSC/PFC Measurement: 10A – 19.9kA
  • Over Voltage Protection: 440V AC No damage – complete recovery
  • Operating Temperature Range 0°C to 40°C
  • Storage Temperature Range –10°C to 60°C
  • Operating Humidity 80% at 31°C to 50% at 40°C
  • 4 × AA batteries (not included).
  • Battery life (BS EN 61557): > 10,000 tests
  • Size: 157 × 89 × 39mm
  • Weight: 400g
