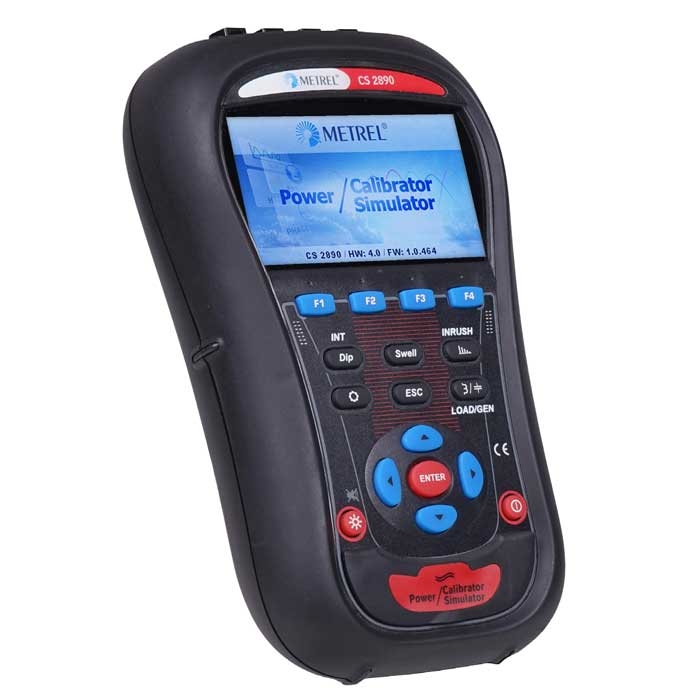

Metrel CS2890 Power Calibrator/Simulator

The Metrel CS2890 Power Calibrator/Simulator is a multifunction, four-phase instrument that is designed to allow the user to adjust and calibrate Metrel Class A and Class S power quality analysers.

The Metrel CS2890 can act as a simple waveform generator and can simulate voltages across four channels up to 350V RMS. Similarly, it is capable of simulating current across four channels up to 2000A and both voltage and current can be simulated simultaneously, thereby allowing signals via eight channels with 16-bit digital to analogue conversion for increased accuracy. Voltage and current stability stands at an impressive ±0.06% whilst substandard voltmeter control can be used to make fine adjustments of calibration points.

As a power simulator, the Metrel CS2890 can recreate voltage events such as dip, swell, interrupt, and signalling. It can also simulate inrush current conditions, harmonic waveforms, unbalanced waveforms, square flicker, and multiple character load/character type (inductive/capacitive) combinations.

The Metrel CS2890 is easy to use thanks to its intuitive, menu-driven interface and touchscreen navigation. Settings are saved when the calibrator is switched off so there is no need to manually re-enter everything when the device is next used. The calibrator is a fantastic instrument for those looking to demonstrate their PQA range to potential customers and for teachers who are instructing students about power quality phenomena.

The Metrel CS2890 is powered by 6 rechargeable AA batteries and comes supplied with five voltage leads, a special power supply cable for voltage offset measurement, four current testing leads, labels for colour coding, a power supply adaptor, six rechargeable AA batteries, a soft carry case, a USB cable, an instruction manual, and a calibration certificate.

Metrel part number: CS 2890

Key Features

  • Calibrate and adjust Metrel power quality analysers
  • Fine adjustment of calibration points via substandard voltmeter
  • Voltage/current signals stable top ±0.06%
  • Suitable for Class A and Class S PQAs
  • Simulate current and voltage across eight channels simultaneously
  • Simulates power events, harmonics, unbalance, and flicker
  • Suitable for sales personnel and teachers
  • Operated by 4.3” colour touchscreen

What's In The Box?

  • Metrel CS2890 Power Calibrator/Simulator
  • Voltage measurement lead, (brown, black, grey, green, blue), 5 pcs
  • Special power supply cable for voltage offset measurement
  • Current measurement leads, 4pcs
  • Labels for colour coding
  • Power supply adapter
  • 1.2 V NiMH rechargeable battery, 6 pcs
  • Soft carrying bag
  • USB cable
  • Instruction manual
  • Calibration certificate
Specification

Calibrator

  • Warmup time: Minimum 30 minutes, connection to external power supply required
  • Settling time: Less than 10 seconds
  • Reference temperature: 23 °C ± 2 °C
  • Voltage/current stability: ±0.06 % (90 days)
  • Calibration currents: 0.05 – 0.1 – 0.2 – 1 – 2 V, ±0.1 % accuracy
  • Calibration voltages: 5-11-14-23-50-75-110-150-165-206-230-250-345-400-500 V, ±0.1 % accuracy
  • Voltage selection: Frequency, Uncertainty / 90 days, Setup resolution (under Adjustment menu)
  • 5-11-14-23-50-75-110-150-165-206-230-250-345-400-500 V: 50 Hz, ±0.06 % accuracy, 0.0001 V

Simulator

Fundamental RMS voltage output

  • Output voltage AC range: 50…350V
  • Resolution: 10V
  • Accuracy: ±0.1%

Event RMS voltage output

  • Output voltage AC range: 0…350V
  • Resolution: 0.01V
  • Accuracy: ±2%

Fundamental RMS current

  • Range: 1A … 2000A (A1033)
  • Output voltage: 1mV … 1V
  • Overall current accuracy: ±0.1%

Inrush RMS current output

  • Inrush current range 1: 2.0mV RMS … 200.0mV RMS
  • Inrush current range: 20.0mV RMS … 2.0000V RMS
  • Accuracy: ±0.5% URMS
  • Crest factor: 1.5

Frequency

  • Output range: 45Hz … 70Hz
  • Resolution: 1Hz
  • Accuracy: ±10mHz

Flickers

  • Flicker type: Pst
  • Measuring range: 0.5 … 5.0
  • Resolution: 0.1
  • Accuracy: ±1%

Voltage harmonics

  • Measuring range: Uhn 1% … 100% of fundamental output voltage
  • Resolution: 1%
  • Accuracy: ±5% of Uhn
  • Uhn: Generated harmonic voltage
  • n: Harmonic component 2nd … 50th

Current harmonics and THD

  • Measuring range: Ihn 1% … 100% of fundamental current
  • Resolution: 1%
  • Accuracy: 5% of Ihn
  • Ihn: Measured harmonic current
  • n: Harmonic component 2nd to 50th

Unbalance

  • Unbalance range u-: 0.5% … 5.0%
  • Resolution u-: 0.1%
  • Accuracy u-: ±0.15%
  • u0
  • Unbalance range i-: 0.0% … 20%
  • Unbalance resolution i-: 0.1%
  • Accuracy i-: ±1%
  • i0

Overdeviation and underdeviation

  • Measuring range over: 0 … 50% UNom
  • Resolution over: 0.001%
  • Accuracy over: ±0.15%
  • Measuring range under: 0 … 90% UNom
  • Resolution under: 0.001%
  • Accuracy under: ±0.15%

Event duration and recorder time-stamp and uncertainty

  • Event duration range: 10ms … 7 days
  • Event duration resolution: 1ms
  • Event duration error: ±1 cycle
  • Event duration (signalling) range: 1s … 100s
  • Event duration (signalling) resolution: 100ms
  • Record and event time stamp resolution: 1ms
  • Record and event time stamp resolution: ±1 cycle

General

  • Measuring category: CAT I / 300 V
  • Dimensions: 230 x 140 x 80 mm
  • Weight (with batteries): 1.36 kg
  • Display: Colour 4.3 TFT liquid crystal display (LCD) with backlight, 480 x 272 dots.
  • Batteries: 6 x 1.2 V NiMH rechargeable batteries type HR 6 (AA)
  • Working temperature range: 0 °C ... +40 °C
Label Type Size Download
pdf Metrel CS2890 Power Calibrator/Simulator pdf 435.8 KB Download
