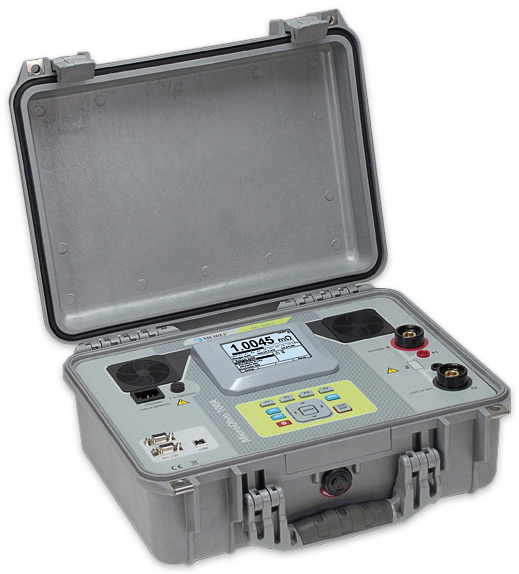

Metrel MI3252 MicroOhm 100A

SKU
METRMI3252
A portable low resistance ohmmeter used to measure low contact resistances of breakers and switches, busbars using test current from 100mA to 100A
More Info
inc VAT £4,033.20 ex VAT £3,361.00
Typically ships in 2-4 working days


Product Details

Metrel MI3252 MicroOhm 100A

The Metrel MI3252 MicroOhm is a portable low resistance ohmmeter designed to measure low contact resistance of circuit breakers, switches and busbars using a test current from 100mA to 100A.

A 4-LEAD Kelvin test method is used to eliminate test lead resistance and provide extremely accurate results that are with 0.25% of the reading with a resolution as fine as 1nanoOhm. This precise measuring system of the Metrel MI3252 MicroOhm allows the equipotential bonding and connectivity of large cross section conductors, parallel connected bars and metal stripes to be proved.

The MI 3252 can be powered from a mains supply or via an internal battery and is capable of storing up to 1000 test results which can be downloaded using supplied HVLink Pro software and imported into test reports for further analysis and distribution to clients or colleagues.

Metrel MI3252 MicroOhm 100A Key Features :

  • Extremely accurate measurements to within 0.25% of reading and resolution down to 1n
  • Able to sustain external voltages in case of wrong connection
  • Automatically detects continuity in current circuit
  • CAT IV 50V protection and weatherproof to IP 64
  • Customisable Pass or Fail limits
  • Memory storage for up to 1000 test results, downloadable using supplied HVLink Pro software
What's In The Box?
  • Metrel MI 3252 Micro Ohmmeter
  • Metrel HVLink Pro software
  • 2 x 5m Current test lead with crocodile clip
  • 2 x 5m Potential test leads
  • 2 x Test probe with Crocodile clips
  • Mains cable
  • RS232 cable
  • USB cable
  • Bag for accessories
  • Instruction manual
  • Calibration certificate
More Information
Specification

For a detailed product specification please see the Metrel MI3252 Micro Ohmmeter pdf Metrel MI3252 MicroOhm 100A
