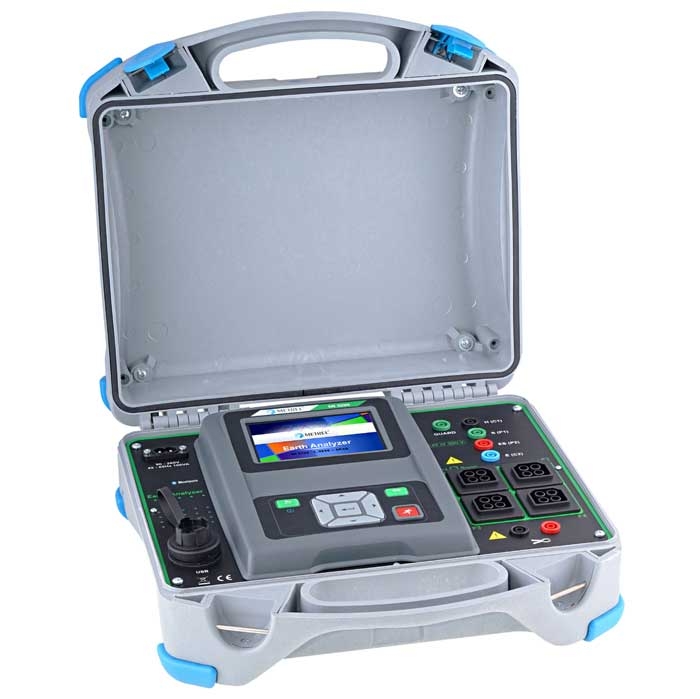

The Metrel MI3290 GX Earth Analyser is suitable for testing earth resistance and earth potential via a range of different methods. This makes it useful for measurement of protective earthing on installations such as pylons, MV/LV transformer stations, ski lifts, radio towers, renewable energy installations and industrial facilities.

The Metrel MI3290 GX can perform two-, three- and four-wire earth resistance tests and measure selective earth resistance via a clamp. Furthermore, it can measure earth conductor resistance via two iron clamps or specific earth resistance via the Wenner and Schlumberger methods. Flex clamps allow testing on mono- or multi-leg pylons and the earth tester is also suitable for measuring current, low resistance, and earth potential. Finally, it can perform step and contact measurements and impulse earth measurements.

Alongside the capacity for multiple measurement techniques, the Metrel MI3290 GX has a wide frequency band that goes from 55Hz to 15kHz. Testing can be performed at a single frequency or with the sweep method across the whole of the frequency range. Additionally, there is a special 25kHz high-frequency pulse test that simulates a lightning strike.

Results are shown on the Metrel MI3290 GX’s 3.4” colour touchscreen. It is operated using intuitive menus and simple navigation buttons with clearly labelled connectors for all applications. Both single measurements and automatic test sequences can be carried out by this earth tester and it has high immunity for electrical noise which makes it suitable for use in industrial settings.

The Metrel MI3290 GX has a 1GB internal memory which can save a huge number of readings with accompanying information. This is easy to navigate via the user-friendly interface and information can be transferred using a USB cable or a wireless Bluetooth connection. The analyser comes supplied with software that is ideal for pre- and post-test processing, test structure preparation, data transfers and graphical analysis, storage and printing.

The Metrel MI3290 GX can work off its rechargeable batteries or from the mains and has excellent enclosure protection rating: IP54 with the case open or IP65 with the case closed. Standard accessories include earth spikes, a connection lead, test leads a G clamp, test probes, crocodile clips, and an accessory bag. In the GX1 Set, it also comes supplied with an A1018 iron clamp, an A1019 iron clamp, a flex clamp, a Kelvin clamp, a voltmeter, batteries and power supply adaptor.

Metrel part number: MI 3290 GX1

Testing Facilities

• 2-, 3-, 4-pole earth resistance test
• Selective earth resistance (with 1 clamp)
• Wenner and Schlumberger specific earth resistance
• Lightning simulation high-frequency 25kHz pulse test
• Earth resistance of mono-leg pylons
• Earth resistance of multi-leg pylons
• Current measurement (via iron or flex clamps)
• Low ohm resistance measurement with 7mA and 200mA test currents
• Earth potential measurement
• Step and contact measurements
• 10/350µs impulse earth measurement

Kit Contents

• Metrel MI3290 GX Earth Analyser
• Current earth spike 90 cm, 2 pcs
• Potential earth spike 50 cm, 2 pcs
• Connection lead black 2 m
• Test lead 5 m blue
• Test lead 5 m red
• Test lead 50 m black on cable reel
• Test lead 50 m green on cable reel
• Test lead 50 m blue on cable reel
• Shielded test lead 75 m on reel
• G clamp
• Set of test probes, crocodile clip and 2 m test lead, 4 pcs
• Bag for accessories
• USB cable
• Mains cable
• Calibration certificate
• Instruction manual
• PC SW Metrel ES Manager
• Licence GX
• Iron clamp A 1018 with 3,5 m test lead
• Iron clamp A 1019
• Flex clamp 5 m with 15 m shielded cable
• Kelvin clamp
• Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
• Voltmeter MI 3295M with 2 wire test lead*
• Soft carrying bag
• Step voltage test plate, 2 pcs
• NiMH battery cells, type AA, 6 pcs
• Power supply adapter
• Bag for accessories
