Metrohm LLT6.6 6.6kV AC Live Line Test Kit

Metrohm LLT6.6 6.6kV AC Live Line Test Kit

The Live Line Tester Kits (LLT) contain all of the testing compenents used to perform measurements in substations, switchgear compartments and can test both live voltage testing and phasing on overhead power lines.

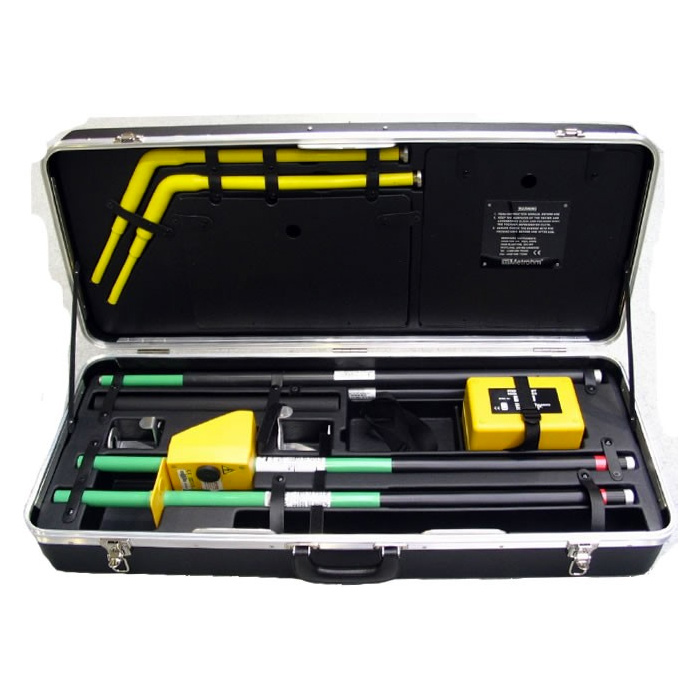

The kit components are housed within secure compartments contained in a heavy duty carry case. Constructed from high quality fibreglass rods and polycarbonate mouldings, the equipment is suitable for both indoor and outdoor use, even in harsh weather conditions and can operate in temperatures ranging between - 25°C and + 50°C.

Metrohm LLT6.6 Kit Key Features:

• Dual purpose HV detection and phase comparison
• Self powered operation
• Indicates the presence of live voltage on circuits up to 6.6kV AC
• Positive phasing test
• High voltage measurement
• High quality fibreglass rod
• Proving and repeater units
• DC version available
• High immunity to interference field

Complying with the requirements listed in IEC1243 part 2, the live line tester uses established techniques for performing HV measurements. Test readings are displayed on an analogue meter which in ecased in a housing that can be rotated through 240 degrees for easy viewing. A battery operated proving unit allows the LLT to be proved across its full range both before and after measurements have been made.

Optional after-market accessories are available including adaptors that allow Bowthorpe Rods to be connected, perfect for testing raised conductors and a Repeater Station that replicates meter readings at ground level. Space is reserved in the Live Line Test Kit carry case for such accessories.
