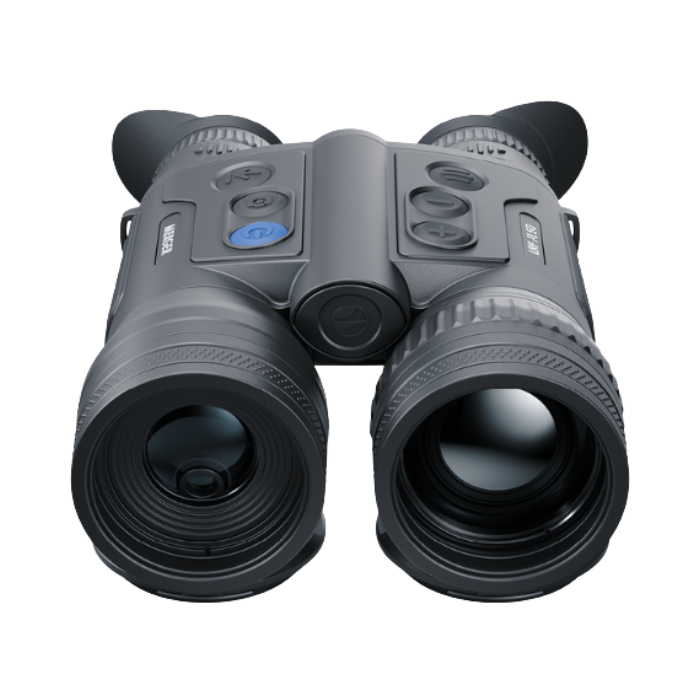

Pulsar Merger LRF XL50 Thermal Imaging Binoculars

PULSAR
SKU: PULSXL50
  • Has a highly sensitive 1024 x 768 resolution sensor, a 12 µm pixel pitch and a < 40 mK NETD rating
  • Features a wide field of view of 14º x 10.5º with a detection range of up to 2300 metres
  • Comes in a durable, lightweight magnesium alloy housing with IPX7 waterproof rating
More Info
Typically ships in 2-3 working days

The Pulsar Merger LRF XL50 Thermal Imaging Binoculars

The Pulsar Merger LRF XL50 Thermal Imaging Binoculars combine state-of-the-art thermal technology with a traditional, ergonomic binocular design that delivers exceptional image quality and user comfort. With features like a dual eyepiece setup and an adjustable interpupillary distance of 62-74mm, the Merger XL50 ensures reduced eye strain and a more natural viewing experience without feeling uncomfortable during long use.

At its core, the Merger XL50 boasts a highly sensitive 1024 x 768 resolution thermal imaging sensor with a 12µm pixel pitch sensor and a NETD of less than 40mK, which detects subtle temperature changes and operates in a range of -25ºC to +50ºC, offering users crisp, detailed thermal images as well as peace of mind when using it in any weather. With a powerful 50mm f/1.0 germanium objective lens and a magnification range from 2.5 to 20x, users can zoom in on subjects without compromising image clarity, and coupled with a wide field of view of 14º x 10.5º, the Merger XL50 offers a detection range of up to 2300 metres, making it ideal for scanning large areas or accurately focusing on distant subjects.

A built-in laser rangefinder allows the Merger XL50 to measure distances of up to 1000 metres with a ±1m precision, making it perfect for wildlife observation, search-and-rescue operations or security teams, or other professions that rely on distance and precision, while the high-contrast AMOLED HD display ensures vivid images that are easy on the eyes in any lighting conditions. Made tough for outdoor use, the Merger XL50 comes with a durable, lightweight magnesium alloy housing and boasts an IPX7 waterproof rating that allows it to withstand immersion in water up to 1 metre deep for 30 minutes. With a dual battery system, comprising an internal 4.0Ah battery and an external 3.2Ah APS3 battery (hot swappable for uninterrupted operation), users can enjoy up to 8 hours of continuous use.

Additional features that enhance the Merger XL50ís functionality include built-in photo and video recording in .mp4 and .jpg formats with 16GB of internal storage, a built-in Wi-Fi module that supports both 2.4GHz and 5GHz frequencies for streaming and remote control via the Stream Vision 2 app, 3 image calibration modes (auto, semi-auto, and manual) to adapt to different environments and 8 adjustable colour palettes to enhance contrast and visibility to suit user needs.

Pulsar part number: PUL-77481

Key Features

  • 1024 x 768 resolution, 12µm, NETD <40mK thermal sensor
  • Wide field of view of 14º x 10.5º
  • Built-in laser rangefinder measuring distance of up to 1000 metres a ±1m accuracy
  • Fast aperture 50mm f/1.0 germanium objective lens with a magnification range from 2.5x to 20x
  • Detection range of 2300 metres
  • 62-74mm interpupillary distance
  • High contrast HD AMOLED display (1024◊768 resolution)
  • 8 colour palettes
  • 3 image calibration modes
  • IPX7 Waterproof rating
  • Operational in temperatures from -25 to +50ºC
  • Rugged magnesium alloy housing
  • Dual battery system: 4.0Ah internal battery and 3.2Ah external APS3 battery (hot swappable)
  • 8 hours battery life
  • Supports both 2.4GHz and 5GHz Wi-Fi frequencies
  • Connects to Stream Vision 2 app
  • Remote viewing and control from Android or iOS devices
  • Built-in video and photo recording with 16GB internal storage
  • Supports .mp4 and .jpg video and image formats

What's In The Box?

  • Merger LRF XL50 Thermal Imaging Binoculars
  • APS3 rechargeable battery pack
  • APS3 battery charger
  • AC power adaptor
  • USB Type-C cable & USB Type-A adaptor
  • USB Type-C to Micro USB Type-B cable
  • Neck strap
  • Tripod adaptor
  • Quick Start Guide
  • Lens cleaning cloth
  • Warranty card
  • Carrying case
Specification
  • Thermal Sensor Type: Uncooled
  • Thermal Sensor: 1024x768, 12µm
  • Sensor NETD: <40mK
  • System NETD: <20mK
  • Frame Rate: 50Hz
  • Objective Lens: 50mm f1.0
  • Magnification: 2.5-20x (x8 digital zoom)
  • FOV (Degrees): 14 x 10.5
  • FOV (m @ 100m): 24.6 x 18.5
  • Interpupillary Distance Adjustment: 62-74mm
  • Eye Relief: 15mm
  • Display: 1024x768 AMOLED HD
  • Rangefinder Max. Measuring Distance: 1000m
  • Rangefinder Measuring Accuracy: ±1m
  • Safety Class for Laser Equipment: 1 (according to IEC 60825-1:2014)
  • Rangefinder Wavelength: 905nm
  • Video Recorder: Built-in
  • Video/Photo Resolution: 1024x768
  • Video/Photo Format:.mp4/.jpg
  • Built-in Memory: 64GB
  • Wireless Protocol: Wi-Fi
  • Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
  • Wi-Fi Frequency: 2.4/5Ghz
  • Environmental Protection: IPX7 (waterproof)
  • Operating Temperature: -25 to +50ºC
  • Compatible Mounts: 1/4" socket
  • Supported Application(s): Stream Vision 2
  • Output Voltage: 3.7V
  • Battery Type: Dual Li-Ion B-Pack Mini Power System: 2 Ah Changeable Battery (external) / 4.9 Ah Battery (internal)
  • Capacity: 3200mAh (external) + 4000mAh (internal)
  • Operating Time: Up to 8 hours (depending on temperature)
  • External Power Supply: 5V; 9V (USB Type-C Power Delivery)
  • Body Material: Magnesium alloy
  • Dimensions: 197 x 140 x 72mm
  • Weight: 950g (including batteries)
