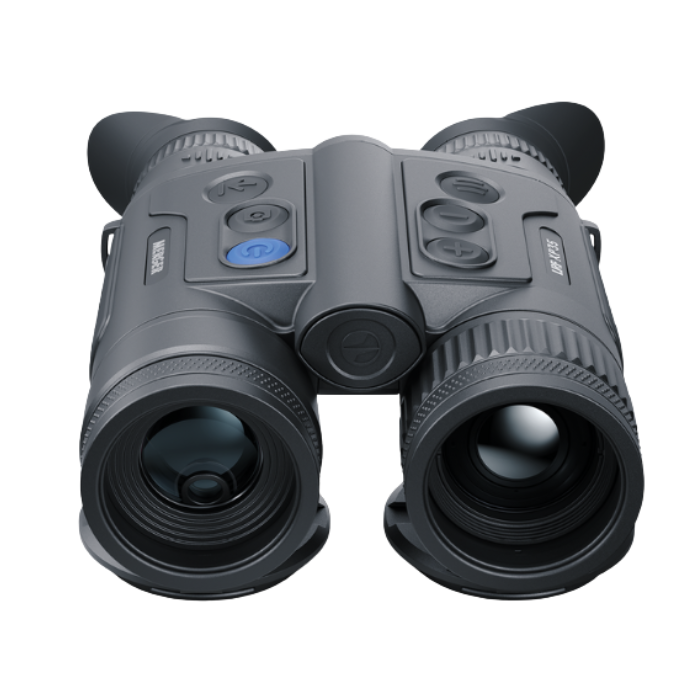

Pulsar Merger LRF XP35 Thermal Imaging Binoculars

PULSAR
SKU: PULSXP35
  • Has a highly sensitive 640 x 480 resolution sensor, 17µm pixel pitch, and <25 mK NETD rating
  • Features a 35mm f/1.0 germanium lens with 2-16x magnification and a 17.8º field of view
  • Boasts a built-in laser rangefinder measuring up to 1000 metres away with ±1 metre accuracy
More Info
Typically ships in 2-3 working days

Pulsar Merger LRF XP35 Thermal Imaging Binoculars

The Pulsar Merger LRF XP35 Thermal Imaging Binoculars are the smallest in the Merger collection, boasting many user-friendly functions such as a 35mm f/1.0 germanium lens, 2 to 16x magnification and a wide-angle 17.8º field of view, all working together to enhance subject tracking while minimising image shake and optimising situational awareness, making it ideal for nature enthusiasts, law enforcement and security, outdoor adventure and navigation and other applications. With a European-made, 640 x 480 resolution thermal sensor, a 17µm pixel pitch sensor, and a NETD of less than 25 mK, the Merger XP35 ensures sharp images in poor weather conditions such as rain, fog and cold.

The Pulsar Merger LRF XP35 comes with a built-in precision laser rangefinder that measures accurate distances of up to 1000 metres with a precision of ±1 metre, allowing users to determine how far a subject is from them. Additionally, the Merger XP35 has a classic ergonomic binocular design that fits easily in hands, with an adjustable 62-74 mm interpupillary distance that allows users to tailor their viewing experience for maximum comfort.

The Merger XP35 works on a dual battery system that consists of a removable 3.2Ah APS3 Li-Ion battery and an internal 4.0Ah battery, providing up to 9 hours of reliable continuous operation. With an IPX7 submersion waterproof rating, the Merger XP35 can withstand being submerged in water up to 1 metre deep for 30 minutes, while also being able to operate reliably in temperatures ranging from -25 ºC to +50ºC.

With dual high-resolution AMOLED HD displays (1024 x 768) to provide sharp and clear visuals in various lighting conditions, users can customise their viewing experience based on environments, thanks to eight selectable colour palettes, which help improve contrast in harsh weather, reduce eye fatigue, and highlight specific details during prolonged use.

Additionally, the Merger XP35 has built-in video and photo recording capabilities, as well as 16 GB of internal memory that supports .mp4 and .jpg formats for field documentation observation and analysis. To improve usability, the Merger XP35 supports Wi-Fi (2.4/5GHz) and connects seamlessly with the Stream Vision 2 app for remote viewing and control on Android and iOS devices.

Pulsar part number: PUL-77484

Key Features

  • 640x480 resolution, 17µm, and <25 mK NETD thermal sensor
  • Wide field of view of 17.8º
  • Built-in laser rangefinder measuring distances up to 1,000 metres with ±1 metre accuracy
  • Long detection range of 1350 metres
  • Wide operating temperature range of -25 to +50ºC
  • 62-74mm interpupillary distance
  • High-contrast Dual HD AMOLED displays (1024x768 resolution)
  • Eight colour palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine Sepia, Red Monochrome, and Violet
  • IPX7 waterproof rating
  • Rugged magnesium alloy housing
  • Removable APS3 3.2Ah Li-Ion battery & an internal 4.0Ah battery
  • 9 hours battery life
  • Supports 2.4/5GHz Wi-Fi
  • Connects to Stream Vision 2 app
  • Remote viewing and control from Android or iOS devices
  • Built-in video and photo recording with 16GB internal storage
  • Supports .mp4 and .jpg video and image formats

What's In The Box?

  • Pulsar Merger LRF XP35 Thermal Imaging Binoculars
  • Removable 3.2 Ah Li-Ion battery
  • APS Battery Charger
  • Power Adaptor
  • USB Type-C cable with USB Type-A adaptor
  • Lens Cleaning Cloth
  • Quick Start Guide
  • Carrying Case
  • Neck Strap
  • Warranty card
  • Tripod Adaptor
Specification
  • Thermal Sensor: 640 x 480, 17µm, <25mK NETD
  • NETD: <25mK
  • sNETD*: <18mK
  • Frame Rate: 50 Hz
  • Objective Lens: 35mm f1.0
  • Magnification: 2-16x
  • FOV: 17.8∞
  • Interpupillary Distance: 63-74mm
  • Eye Relief: 15mm
  • Display: 1024 x 768 AMOLED
  • Detection Range: 1350m
  • Video Recorder: Yes, with audio
  • Video Resolution: 1024 x 768
  • Video Format: .mp4/.jpg
  • Built-In Memory: 16 GB
  • Wireless Protocol: Wi-Fi
  • Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
  • Frequency: 2.4 / 5GHz
  • Degree of Protection: IPX7 (waterproof)
  • Operating Temperature Range: -25 - +50ºC
  • Compatible Mounts: 1/4"
  • Supported Application: Stream Vision 2
  • Output Voltage: 3.7 V
  • Battery Type: Dual Li-Ion power system: APS 3 changeable battery (3.2Ah) and built-in battery pack (4.0Ah)
  • Battery Capacity: 3200mAh (external) + 4000mAh (internal)
  • Operating Time: Up to 9 hours (at T=22ºC)
  • External Power Supply: 5V, 9V (USB Type-C Power Delivery)
  • Body Material: Magnesium alloy
  • Dimensions: 165 x 133 x 68mm
  • Weight: 830g (batteries included)
