Radiodetection 512Hz Submersible DD Antenna with 10m Cable (10/RX-SUBANTENNA-512)

Radiodetection
SKU: RADISUBANTENNA512
  • Remote antenna used for locating underwater cables and pipes
  • This product is available in 512Hz & 640Hz versions
  • Additional cable length is available, per metre
More Info
Typically ships in 3-5 working days

Radiodetection 512Hz Submersible DD Antenna with 10m Cable (10/RX-SUBANTENNA-512)

This remote, submersible double depth antenna is used for locating underwater cables or pipes, and is available in 512Hz & 640Hz. This alternative antenna doubles the effective depth range of locators, and is submersible up to 100m/328ft.

With natural buoyancy and a brass weight for stability, aswell as liquid crystal display locator depth calculation that is performed automatically, this DD antenna is extremely useful for identifying underwater industry.

The product is supplied with 10m/33ft of submersible cable as standard, with the customer able to purchase up to an additional 100m/328ft of cable. Simply click on the 'Optional Accessories' section in the tab above this text, and add the additional cable length, as desired.

Key Features

  • Submersible antenna with double the effective depth range
  • Natural buoyancy with brass weight for stability
  • Supplied with 10m of submersible cable (up to 100m should customer opt for it)
  • Locator depth button pressed as normal for depth measurement
  • Liquid crystal display locator depth calculation performed automatically
  • No batteries required
Specification
  • Submersible to 100m/328ft
  • Supplied with standard 10m/33ft cable
  • Cable can be extended up to 100m

    Accuracy

  • Locate Accuracy = ±5% of depth
  • Depth Accuracy = Line 6m/20ft ±5%, Sonde 15m/50ft ±5%
  • ±5% of actual current
  • Frequency = 512Hz (typical) or 640Hz (typical)
  • Search Antennas = 2 x dual wound symmetrical antennas for peak operation
  • Operating Temperature Range = -20°C to +50°C (-4°F to +122°F)
  • Power Supply = Supplied by locator via accessory socket

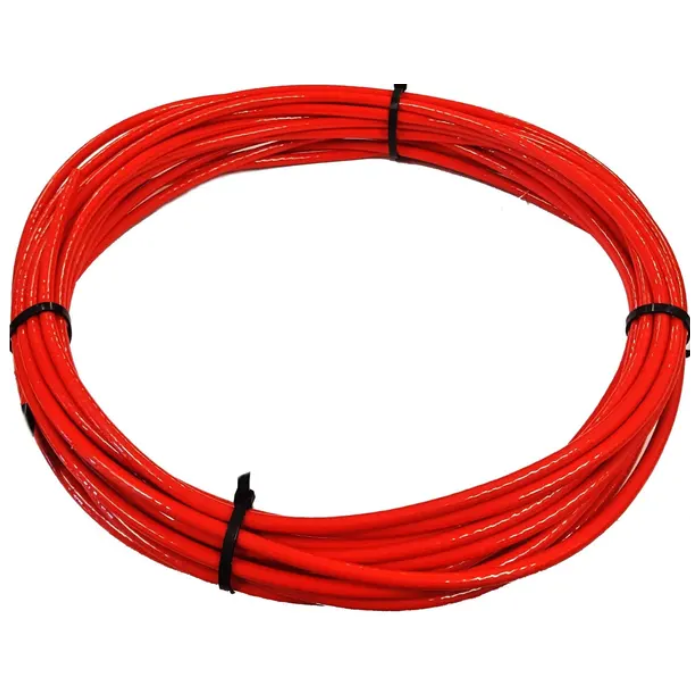

  1. The Radiodetection Logo in Place of an Image
    Radiodetection Additional Submersible Cable Length (Per Metre) SKU: RADISUBANTENNACABLE
    £40.00 (ex VAT)
    £48.00 (inc VAT)

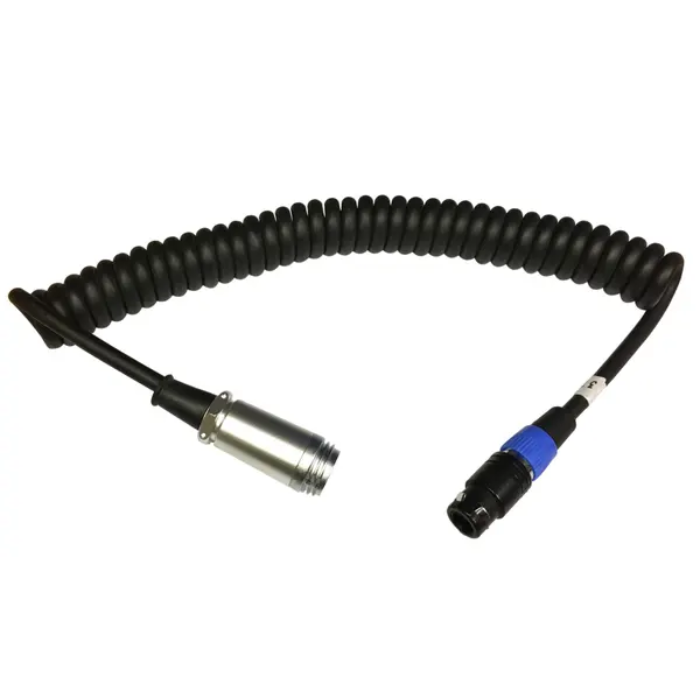

  2. The Radiodetection Logo in Place of an image of the Submersible Antenna Adaptor
    Radiodetection Submersible Antenna Adaptor (10/RX-SUBANTENNA-ADAPTOR) SKU: RADISUBANTENNAADAPTOR
    £205.00 (ex VAT)
    £246.00 (inc VAT)
