SA1200P CO2 Indoor Air Quality Carbon Dioxide Monitor

SA1200P CO2 Indoor Air Quality Carbon Dioxide Monitor with NDIR sensor

The SA1200P Indoor Air Quality Carbon Dioxide Monitor produces real-time simultaneous readings of CO2, temperature and humidity levels. With a data logger built-in, this unit enables analysis of the aforementioned parameters in several specific timed intervals; by week, day, hour or minute. Capable of charting CO2 concentration up to 5000ppm, the easy-to-understand user interface of the SA1200P utilises blocks to represent values, providing operators with a swift and simple visual indication.

The SA1200P is CE marked and with its NDIR (non-disperse infrared) sensor it complies fully to the guidelines as set out by the HSE (Health &  Safety Executive) for CO2 monitors recommended to reduce the risk of COVID-19 aerosol transmission in poorly ventilated areas.

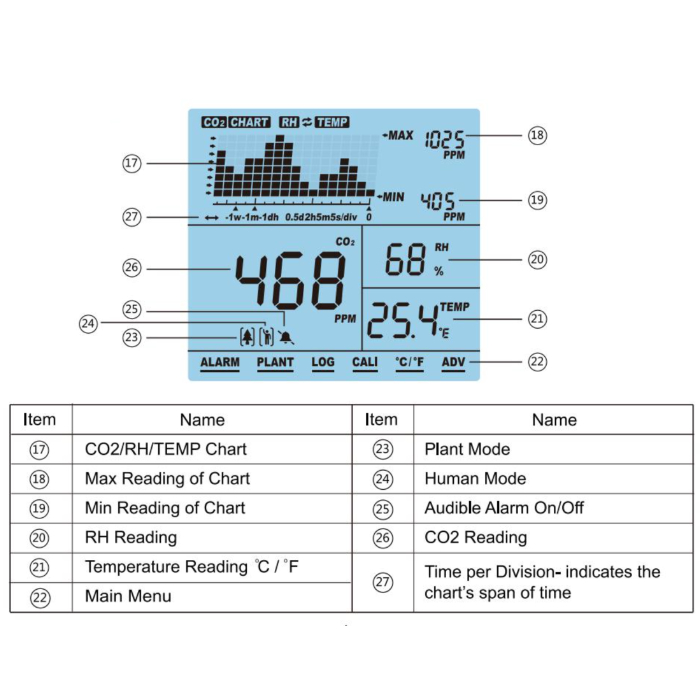

With live time & date on-screen, the SA1200P Indoor Air Quality Monitor displays Min/Max values alongside an intuitive Trend Chart. Various modes are incorporated within this CO2 monitor including a three-level indoor quality system indicating Good, Normal or Poor carbon dioxide concentrations.
In addition, the audible and visual alarms of the SA1200P possess a customisable set point for matching specific user requirements.

NOTE: The SA1200P Air Quality Monitor is supplied with a USB lead for to connect to a power source for continuous operation. If you do not have access to a USB socket and wish to power from a 230V mains supply you can use any standard USB charger or an optional 230V USB charger plug can be added to your order.

Example Applications

• Home
• Office meeting room
• School classroom
• Auditorium
• Hospital
• Hotel
• Library
• Gym
• Brewery
• Laboratory
• Shopping centre
• Cafe
• Workshop
• Warehouse
• Greenhouse

The maintenance free NDIR CO2 Sensor of the SA1200P Carbon Dioxide Monitor can be placed on a flat surface, mounted on a wall or pasted to a wall with a fixate gel pad. The large LCD screen and high-end touch buttons are easy to use, while the unit itself is powered via a USB power source.

Key Features

• CE marked with NDIR (non-disperse infrared) sensor
• Indoor air quality carbon dioxide (CO2) monitor
• Tracks CO2, humidity & temperature simultaneously
• CO2 range up to 5000ppm
• Easy to read trend chart
• Live Min/Max values
• Three level indoor quality system built-in
• Plant/Human mode featured
• Alarm/Mute mode also featured
• Customisable visual & audible alarms
• Various placement or mounting options
• Large bright LCD screen
• Quality touch buttons
• Powered via USB cable (unit is not battery operated)

Part number: SA1200P
