Sauermann Si-CD3 Combustible Gas Detector

Sauermann
SKU: SAUESICD3
  • Quickly and easily detect various combustible gases
  • Detect methane, propane, isobutane, LPG and other hydrocarbons
  • 30cm flexible probe and LCD screen with adjustable backlight
More Info
Typically ships in 3-5 working days

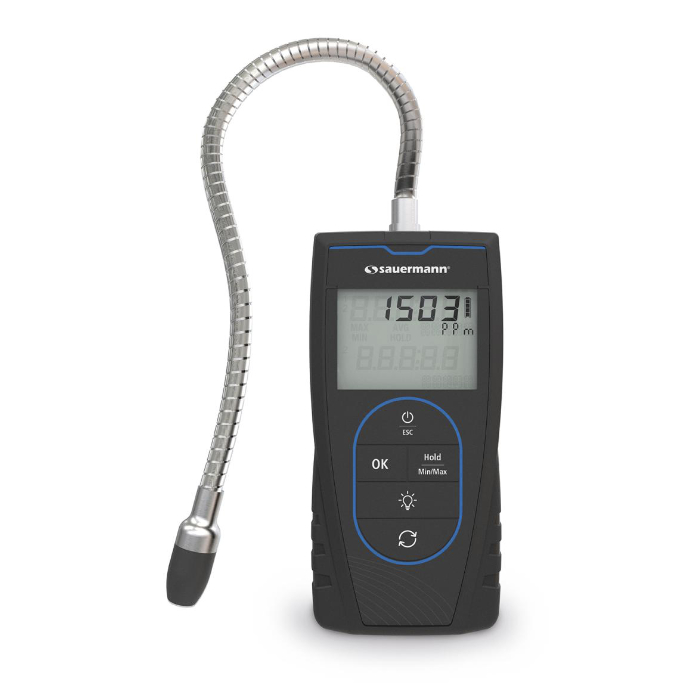

Sauermann Si-CD3 Combustible Gas Detector

The Sauermann Si-CD3 Combustible Gas Detector is the perfect tool to quickly and easily detect various combustible gases including methane, propane, isobutane, LPG and other hydrocarbons. Hold/Min-Max button increase functionality of the Si-CD3 detector.

With a 30cm flexible probe, the Si-CD3 is able to detect gases even in tight environments. The adjustable backlit LCD screen further helps when faced with challenging conditions. The adjustable alarm alerts the user should user defined parameters be detected. Gas leakage indication is provided in ppm, percentage of volume and percentage of LEL.

Battery powered, the Si-CD3 has battery life of up to 20 hours. The battery life is preserved with the adjustable Auto power-off (0 to 2 hours).

Key Features

  • Detect various combustible gases including methane, propane, isobutane, LPG and other hydrocarbons
  • 30cm flexible prob
  • LCD screen with adjustable backlight
  • Gas leakage indication in ppm, %vol or % LEL
  • Audible alarm
  • Hold/Min-Max functions
  • Battery powered with auto power off
  • Up to 20 hour battery life

What's In The Box?

  • Sauermann Si-CD3 Combustible Gas Detector
  • Verification certificate
  • Transport case
  • Quick start guide
Specification

Technical Specifications

  • Accuarcy: 20% of full scale
  • Measurement range in CH4:
    From 0 to 10,000 ppm
    From 0 to 1% vol
    0 to 20% LEL
  • Resolution:
    1ppm
    0.001% vol
    0.001% LEL
  • % LEL: is the limiting concentrations of gas (in air) that is needed for the gas to ignite and explode. Example for CH4 gas: 100% LEL = 5% vol
  • % vol: is the concentrations of gas (in air) expressed in percentage of volume in air. Example for CH4 gas : 1% vol = 10 000 ppm

General features

  • Measurement units: ppm, %vol, %LEL
  • Measuring element: Semiconductor sensor
  • Display:
    4 lines, LCD technology. Dimensions 50 x 36 mm
    2 lines of 5 digits with 7 segments (value)
    2 lines of 5 digits with 16 segments (unit)
  • Probe: Flexible, 300mm
  • Housing: ABS, protection IP54
  • Keypad: 5 keys
  • European directives:
    2014/30/EU EMC; 2014/35/EU Low Voltage;
    RoHS 2011/65/EU (EU)2015/863; 2012/19/EU WEEE
  • Power supply: 4 batteries AAA LR03 1.5V
  • Battery life 20 hours
  • Ambiance: Neutral gas
  • Conditions of use (ºC, %RH,m):
    From 0 to +50 °C. In non condensing conditions
    From 0 to 2000 m.
  • Storage temperature: From -20ºC to 80ºC
  • Auto power-pff: Adjustable from 0 to 120 minutes
  • Weight: 295g (10.4oz)
  • Dimensions: L x W x H: 71.5mm x 34.2mm x 148mm
  • Operating temperature:
    Min: 0ºC
    50ºC
  • Storage temperature:
    -20ºC
    80ºC
Label Type Size Download
pdf Sauermann Si-CD3 Combustible Gas Detector Datasheet pdf 669.5 KB Download
