Sauermann Si-PM3 HVACr Manometer

Sauermann
SKU: SAUESIPM3
  • Handheld digital differential pressure manometer
  • Measure pressure from -150 to 150 hPa (-60 to 60 in H2)
  • Backlit LCD display and compatible with the Sauermann Si-HVACR Measurement MobileApp
More Info
In Stock - Available Next Day

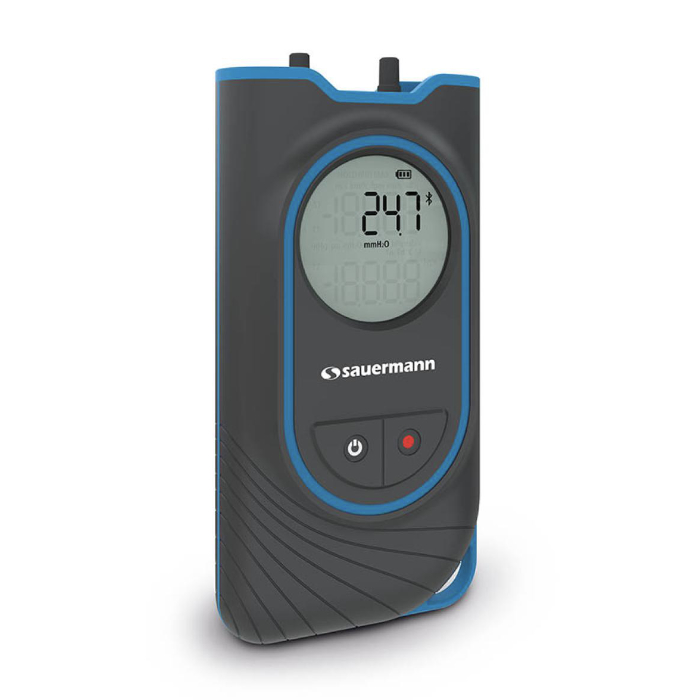

Sauermann Si-PM3 HVACr Manometer

The Sauermann Si-PM3 HVACr Manometer is a hand held device providing measurements for differential pressure and easily measures pressure. With a measuring range of -150 to 150 hPa (-60 to 60 in H20). Results and measurements are shown on the backlit LCD screen with one On/Off and backlight key and one Hold/Min/Max/Live & auto zero keys provide an easy to use and operate device.

Battery powered, the Si-PM3 provides users with a device with up to 170 hours use with a auto-off function further helping to preserve the battery life. The Si-PM3 is IP40 protection rated and with a magnetic backing for easy fixing whilst coming with a carrying bag for protection in transport and storage.

Si-HVACR Measurement MobileApp

The Si-PM3 is compatible with the Sauermann Si-HVACR Measurement Mobile App (free to download on iOS and Android smart devices) allowing users to view and record test measurement in real time. Using the App, the instrument can easily view different parameters and browse saved measurement history and data graphs (average, min & max values). Reports can be created in PDF, CSV or XML formats with up to four images add to results.

Key Features

  • Hand held device for differential pressure and pressure
  • Measuring range of -150 to 150 hPa (-60 to 60 in H20)
  • Backlit LCD display
  • Compatible with the Si-HVACR Measurement MobileApp
  • Magnetic back for easy fixing
  • Carrying bag included
  • 170 hour battery life
  • Auto-off function after ten minutes inactivity

What's In The Box?

  • Sauermann Si-PM3 HVACr Manometer
  • 2x clear tubes Ø4x6 mm, 1 m (39.37’’) length
  • Certificate of conformity
  • Quick start guide
  • 3 x alkaline batteries LR03 AAA 1.5V
  • Carrying bag
Specification

Technical Specifications

  • Pressure
    Measuring unit: hPa, mbar, Pa, mmH2 O, in H2O, in Hg, psi
    Accuracy: ±(1.5% of value +0.2 hPa)/±(1.5% of value +0.09 in H2O)
    Measuring range: from -150 to +150 hPa/from -60 to 60 in H20
    Resolution: 0.01 hPa / 0.001 psi / 0.01 in H20/ 1 Pa / 0.01 mbar / 0.1 mm H2O/ 0.001 in Hg
  • Airflow
    Measuring unit: m3/h, m3/min, m3/s, cfm
    Measuring range: From 0 to 9999 m3/h
    Resolution: 1 m3/h / 0,001 m3/s /0.01 m3/min / 0.1 ft3/min
  • Air Velocity
    Measuring unit: m/s, fpm
    Measuring range: From 0 to 80 m/ 394 to 15748 fpms
    Resolution: 0.1 m/s / 1 fpm

General features

  • Measuring element: Piezoresistive sensor
  • Admissible overpressure: 750 mbar (301 in H20)
  • Connector: Stepped connectors from Ø 5.1 to 6.2 mm
  • Display: Integrated 2-line LCD 7 segment monochrome display with backlight
  • Housing: ABS-PC and TPE, IP40
  • Keypad:
    1 On/Off and backlight key
    1 Hold/Min/Max/Live & auto zero key
  • Standards and directives:
    2011/65/EU RoHS II (EU)2015/863;
    2012/19/EU WEEE; 2014/53/EU RED
  • Power supply: 3 alkaline batteries LR03 AAA 1.5 V
  • Battery life: 170 hours (without backlight and without wireless communication)
  • Wireless communication:
    Range frequency from 2402 MHz to 2480 MHz with a transmit power of 0 dBm
    Range up to 15 m (98 ft), depending on smartphone radio strength
    Minimum required versions: Android 5.0, iOS 12.4, BLE 4.0
  • Ambiance: Air and neutral gas
  • Operating conditions:
    From 0 to +50°C (32 to 140°F). In non condensing conditions
    Altitude: from 0 to 2000 m (6561’)
  • Storage temperature: From -20 to 70ºC (-4 to 158ºF)
  • Auto shut-off: 10 minutes (can be deactivated)
  • Weight (with batteries): 200g (7oz)
Label Type Size Download
pdf Sauermann Si-PM3 HVACr Manometer Datasheet pdf 629.6 KB Download
