Seaward Clare D255 Comprehensive Digital Power Tool & Appliance Safety Tester

SKU: SEAWD255

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

Made to order - Contact for lead time
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 2390 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • Suitable for the Equipment Hire and Service/Repair industry
  • Rugged design with clear & easy-to-read digital display built-in
  • Includes tests such as hipot/flash, earth/ground bond and more

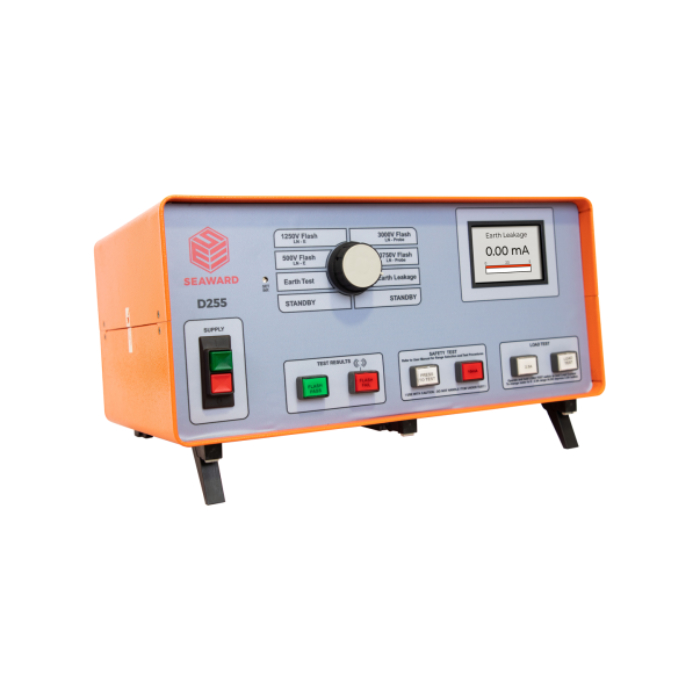

Seaward D255 Comprehensive Digital Power Tool & Appliance Safety Tester

The Seaward D255 Comprehensive Digital Power Tool & Appliance Safety Tester is the ideal test solution for operators working within the Equipment Hire and Service/Repair industries. Providing a large and clear digital readout of test measurements, the D255 not only ensures accurate readings but improves the user experience as a whole by bringing the display into the digital era. A full suite of electrical safety tests are built-in including hipot/flash testing, earth/ground bond, load/run and leakage testing.

Rather than interpreting a reading from one of three different analogue scales, the D255 will display the single value of the test being performed and thus guarantee correct logging. For user convenience, a measurement hold function is also incorporated for when the test ends. The outer casing is designed with hard workshop environments in mind, rugged and durable. All testing of Class I & Class II products is in accordance with the HAE EHA Code of Practice for Electrical Safety Testing in the Hire Industry and international standards, including BS EN 60335 and BS EN 60745.

Key Features

  • Ideal for the Equipment Hire and Service/Repair industry
  • Electrical safety tests built-in
  • Includes hipot/flash testing, earth/ground bond, load/run & leakage testing
  • Digital display of results
  • Only the test being performed is shown
  • Hold function included
  • Hard-wearing design
  • Tests Class I & Class II products
  • Tests performed in accordance with the latest safety standards

Seaward part number: D255

What's In The Box?

  • D255 Test Instrument
  • 240V Power Lead
  • Earth Bond Clip
  • Flash Probe
  • Y250 Fault Simulator
  • Output Box
  • User Manual
Show Trustpilot Reviews
Specification
No

AC Flash / Hipot Test

  • AC Flash / Hipot Test: 500V, 1250V AC 3000V, 3750V AC
  • Selectable Trip Current: 5mA/10mA

Earth and Touch Current Test

  • Trip Current: 0 – 5mA

Features

  • Visual Alarm, Audible Alarm, Digital Display: Default Spec Value

Earth / Ground Bond Test

  • Test Current: 25A, into 0.1Ω, from 8V AC, 0 – 1 .99Ω meter display

Power / Run / Load Test

  • Test Voltage: 230V 0 – 15A, 110V, 0 – 25A

External Connections

  • Beacon (EN50191), Guard Switch: Default Spec Value
Label Type Size Download
pdf Seaward D255 Datasheet pdf 250.7 KB Download
