Seaward PR15D/PH3 Digital Phasing Unit

SKU
SEAWPR15D
Digital Phasing Unit up to 15kV, supplied with PH3 Proving Unit
More Info
inc VAT £2,490.00 ex VAT £2,075.00
Typically ships in 2-4 working days


Product Details

Seaward PR15D/PH3 Digital Phasing Unit

The Seaward PR15D is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring circuits The Seaward PR15D potential indicator and phasing stick is suitable for use on earthed neutral systems up to 15kV.

The LCD display on the digital leg is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a bespoke carrying case.

This robust, highly portable digital potential indicator and phasing stick is supplied with a carrying case for the indicator and accessories. Conforming in design lengths to recommended, creepage and safety standards, the PR series features high grade PVC tubing and incorporates totally encapsulated resistor chains.

Seaward PR15D/PH3 Key Features:

  • Provides a means of phase angle comparison and indication of phase angle voltage at the point of intended paralleling of two circuits on neutral earthed systems.
  • Supplied with a quick reference chart for checking phase angle difference of circuits paralleled.
  • Kit comprises two elements with resistor chains, one with digital indicator and the second a phasing rod
  • Bent adaptors available for use with switch gear
  • Indicator can be used independently as a voltmeter.
What's In The Box?
  • Seaward PR15D Digital Phasing Unit 109A912
  • Seaward PH3 Proving Unit
  • Overhead Line Extensions
  • Battery Charger
  • Bespoke Carry Case
  • Manufacturers Calibration Certificate
More Information
Specification
  • Maximum System voltage: 15kV
  • Maximum Voltage to earth: 8.6kV
  • Threshold voltage: N/A
  • Measuring Range: 0.00kV-8.6kV
  • Resolution: 10V
  • Accuracy: +/- 5%
  • Sensitivity: AC/DC
  • Circuit current (IEC 61234-2): 0.5mA nominal @15kV
  • Dielectric leakage current (IEC 61234-2): 7uA nominal @ 18kV
  • Length (mm): 600
  • Diameter (mm): 25
  • Handle length (mm): 235
  • Hand guard height (mm): 23.5
  • Contact Electrode Type: Domed
Icon Filename Type Size Download
pdf Seaward HV Phasing Units Datasheet pdf 2.3 MB Download

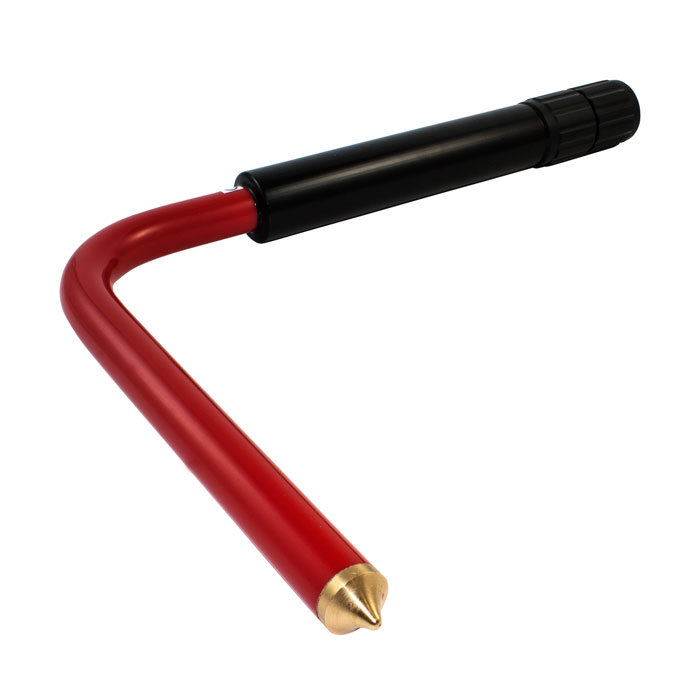

  1. Seaward 90 Degree Bent End Adaptor
    Seaward 90 Degree Bent End Adaptor 15KV
    inc VAT £330.00 ex VAT £275.00
    In Stock - Available Next Day
