Seek Thermal CompactPRO Thermal Camera for Smartphone

SKU
SEEKCOMPACTPRO-CONF
  • Connect and detect with the high quality 320 x 240 pixel thermal sensor
  • 32° field of view with focusable lens and FastFrame technology
  • Boasting a temperature range of -40˚ to 330˚C & four emissivity presets
More Info
As low as inc VAT £466.80 ex VAT £389.00
Select an option to view availability


Product Details

Seek Thermal CompactPRO Thermal Camera for Smartphone

The Seek Thermal CompactPRO Thermal Camera for Smartphone - with 76,800 pixels and more than one million temperature readings processed per second - is an advanced smartphone camera combining affordability with an unprecedented thermal resolution. Built for the top iPhone® and Android™ models, transform your smart device into a professional thermal imaging tool capable of capturing thermal photos, videos, sharing findings and sending them on for further documentation and analysis. Ideal for insulation & HVAC inspection, electrical inspection or roof inspection and engineered to run even when your smartphone is on low power, the CompactPRO does not require batteries or charging.

Isolate and capture the thermal details that matter with the Seek Thermal CompactPRO, the most advanced thermal imaging camera designed for a smartphone. This compact instrument offers a 32˚ wide field of view alongside a -40˚ to 330˚C detection range and 320 x 740 thermal sensor with high sensitivity for an impressive 76,800 temperature pixels and maximum image clarity. When calibrating for reflective surfaces is critical, the CompactPRO offers an adjustable thermal span, level, and emissivity settings which can be manually adjusted. The focusable lens, which can focus up to 550 meters, provides quick identification and the sharpest image over a large area with the level and span controls allowing for even greater isolation and detection.

Combine the Seek Thermal CompactPRO with the power and display of your smartphone by utilising the intuitive and free mobile app available from Google Play and the iTunes App Store. Record and share images or videos of industrial inspections for accurate documentation while still on-site. Stay safe no matter the time of day as the the CompactPRO can quickly evaluate hazardous environments and problem sources at a safe distance, even in total darkness. Pocket sized and highly portable, the connect and detect device comes complete with its own waterproof case.

With the Seek Thermal CompactPRO Thermal Camera for Smartphone, detect energy loss caused by inefficient HVAC systems, missing or damaged insulation, air leaks, electrical faults, and much more. Featuring adjustable level and span controls, four easy to use emissivity presets and engineered with Seek Thermal's FastFrame technology the CompactPRO delivers maximum image clarity and sensitivity in conjunction with an easy to use operating system. Choose between the iPhone®, Android™ Micro USB or Android™ USB-C model from the drop down menu.

Key Features

  • Extremely high quality 320 x 240 thermal Sensor
  • Best in class temperature range of -40˚ to 330˚C (-40° to 626°F)
  • Wide 32° field of view
  • 550 meters Detection Distance
  • Thermal sensitivity of < 70 mK
  • Frame rate of >15 Hz FastFrame
  • Adjustable focus
  • Celsius, Fahrenheit or Kelvin display options
  • Photos & Videos
  • Spot Temperature
  • High-Low Temperature
  • Threshold Mode
  • 9 Color Palettes
  • Auto & Span/Level Control
  • Adjustable Emissivity
  • Compatible with iPhone® / Android™ Micro USB / Android™ USB-C
  • Waterproof Case Included
  • Ideal for use day or night

Seek Thermal part numbers: CQ-EAAX (USB-C), LQ-EAAX (IOS), UQ-EAAX (Micro-USB)

Seek Thermal Compact Models Available

Read more: Compact | CompactXR | CompactPRO

Compact
£189
206 x 156 Thermal Sensor
36° Field of View
< 9 Hz Frame Rate
300 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactXR
£241.50
206 x 156 Thermal Sensor
20° Field of View
< 9 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactPRO
£389.00
320 x 240 Thermal Sensor
32° Field of View
< 15 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto & Span/Level Control
Adjustable Emissivity

Seek Thermal CompactPRO Thermal Camera for Smartphone

The Seek Thermal CompactPRO Thermal Camera for Smartphone - with 76,800 pixels and more than one million temperature readings processed per second - is an advanced smartphone camera combining affordability with an unprecedented thermal resolution. Built for the top iPhone® and Android™ models, transform your smart device into a professional thermal imaging tool capable of capturing thermal photos, videos, sharing findings and sending them on for further documentation and analysis. Ideal for insulation & HVAC inspection, electrical inspection or roof inspection and engineered to run even when your smartphone is on low power, the CompactPRO does not require batteries or charging.

Isolate and capture the thermal details that matter with the Seek Thermal CompactPRO, the most advanced thermal imaging camera designed for a smartphone. This compact instrument offers a 32˚ wide field of view alongside a -40˚ to 330˚C detection range and 320 x 740 thermal sensor with high sensitivity for an impressive 76,800 temperature pixels and maximum image clarity. When calibrating for reflective surfaces is critical, the CompactPRO offers an adjustable thermal span, level, and emissivity settings which can be manually adjusted. The focusable lens, which can focus up to 550 meters, provides quick identification and the sharpest image over a large area with the level and span controls allowing for even greater isolation and detection.

Seek Thermal CompactPRO Thermal Camera for Smartphone In Use 1

Combine the Seek Thermal CompactPRO with the power and display of your smartphone by utilising the intuitive and free mobile app available from Google Play and the iTunes App Store. Record and share images or videos of industrial inspections for accurate documentation while still on-site. Stay safe no matter the time of day as the the CompactPRO can quickly evaluate hazardous environments and problem sources at a safe distance, even in total darkness. Pocket sized and highly portable, the connect and detect device comes complete with its own waterproof case.

With the Seek Thermal CompactPRO Thermal Camera for Smartphone, detect energy loss caused by inefficient HVAC systems, missing or damaged insulation, air leaks, electrical faults, and much more. Featuring adjustable level and span controls, four easy to use emissivity presets and engineered with Seek Thermal's FastFrame technology the CompactPRO delivers maximum image clarity and sensitivity in conjunction with an easy to use operating system. Choose between the iPhone®, Android™ Micro USB or Android™ USB-C model from the drop down menu.

Key Features

  • Extremely high quality 320 x 240 thermal Sensor
  • Best in class temperature range of -40˚ to 330˚C (-40° to 626°F)
  • Wide 32° field of view
  • 550 meters Detection Distance
  • Thermal sensitivity of < 70 mK
  • Frame rate of >15 Hz FastFrame
  • Adjustable focus
  • Celsius, Fahrenheit or Kelvin display options
  • Photos & Videos
  • Spot Temperature
  • High-Low Temperature
  • Threshold Mode
  • 9 Color Palettes
  • Auto & Span/Level Control
  • Adjustable Emissivity
  • Compatible with iPhone® / Android™ Micro USB / Android™ USB-C
  • Waterproof Case Included
  • Ideal for use day or night

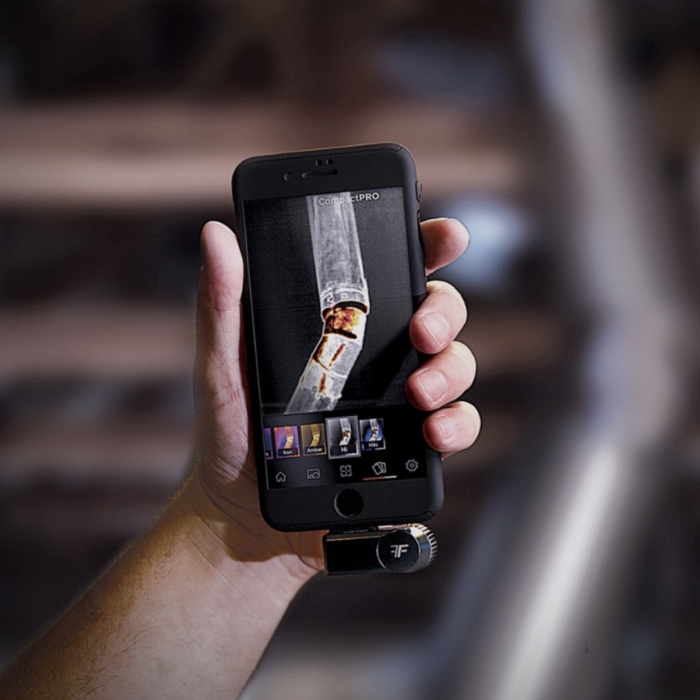

Seek Thermal CompactPRO Thermal Camera for Smartphone In Use 2

Seek Thermal part numbers: CQ-EAAX (USB-C), LQ-EAAX (IOS), UQ-EAAX (Micro-USB)

Seek Thermal Compact Models Available

Read more: Compact | CompactXR | CompactPRO

Compact
£189
206 x 156 Thermal Sensor
36° Field of View
< 9 Hz Frame Rate
300 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactXR
£241.50
206 x 156 Thermal Sensor
20° Field of View
< 9 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactPRO
£389.00
320 x 240 Thermal Sensor
32° Field of View
< 15 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto & Span/Level Control
Adjustable Emissivity
What's In The Box?
  • 1 x Seek Thermal Compact PRO Thermal Camera for Smartphone
  • 1 x Waterproof Carrying Case
More Information
Specification
  • Thermal Sensor: 320 x 240 (76,800 pixels)
  • Detection Distance: 15cm to 550 Meters (600 Yards, 1,800 Feet)
  • Field of View: 32˚ FOV
  • Temperature Range: -40°C to 330°C (-40°F to 626°F)
  • Frame Rate: > 15 Hz FastFrame
  • Focus: Adjustable Focus
  • Lens Material: Chalcogenide
  • Microbolometer: Vanadium Oxide
  • Thermal Sensitivity: < 70 mK
  • Pixel Pitch: 12 Microns
  • Spectral Range: 7.5 – 14 Microns
  • User Interface: Free Seek Thermal Mobile App
  • Temp. Display Scale: Celsius, Fahrenheit or Kelvin
  • Color Palettes: 9 Options
  • Storage Media: Stores Directly to Smartphone
  • Battery: Low power provided by Smartphone (280 mW)
  • Phone Compatibility: iPhone® and Android™
