Seek Thermal CompactXR Thermal Camera for Smartphone

SKU
SEEKCOMPACTXR-CONF
  • 206 x 156 pixel thermal sensor attachable to smartphone or tablet
  • 20° field of view with focusable lens for heat sources up to 550m away
  • Connect and detect with impressive temperature range of -40˚ to 330˚C
More Info
As low as inc VAT £289.80 ex VAT £241.50
Select an option to view availability


Product Details

Seek Thermal CompactXR Thermal Camera for Smartphone

The Seek Thermal CompactXR Thermal Camera for Smartphone utilises the power and convenience of your smartphone or tablet to create a small, yet professional, thermal imaging tool capable of highly accurate long-range imaging. The only long-range thermal imaging camera designed for the top iPhone® and Android™ models, connect and detect energy losses caused by inefficient HVAC systems, missing or damaged insulation, electrical faults, air leaks and so much more. The XR Thermal Camera is an intuitive and easy to use system for taking thermal photos or videos, sharing your findings and sending them for documentation. The CompactXR provides the same thermal performance as the Compact, however by narrowing the field-of-view it almost doubles the viewing distance, perfect for use outdoors.

The powerful thermal imaging of the CompactXR is due to an advanced 206 x 156 thermal sensor, built with military-proven technology. The high-performance sensor measures temperatures anywhere within a range of -40° to 330°C (-40° to 626°F) and the whole device is portable enough to fit right in your pocket. The narrow 20-degree field of view, assisted by a focusable lens for quick identification, allows for detection of heat signatures up to 550 meters (1,800 feet) away. The Seek CompactXR provides advanced infrared technology and lets you see thermal images on your smartphone day or night.

Engineered to work even when the connected smart device is running low on power, negating the need for batteries or charging, the Seek CompactXR comes with its own waterproof carrying case for protection from the elements. Customise, record and share images with the free Seek Thermal app available on Google Play and iTunes App Store. Connect, detect and document discoveries for further analysis, all saved to the smartphone itself.

Stay safer when outside in the dark with the Seek Thermal CompactXR Thermal Camera for Smartphone, using the compact add-on to quickly and accurately scout unknown terrain or easily recover and rescue lost animals. Engage this military-proven technology to safeguard buildings, land or borders as even camouflage fails to adequately hide a heat signature. Boasting unique benefits especially at dawn, dusk, or over long distances where visible light is limited, the CompactXR makes it easier to discover and detect heat spots where lighting might provide unwanted attention. Choose between the iPhone®, Android™ Micro USB or Android™ USB-C model from the drop down menu.

Key Features

  • High quality 206 x 156 thermal sensor
  • Impressive -40° to 330°C detection
  • Narrow 20° field of view for greater range
  • Maximum 550 meter detection distance
  • < 9 Hz Frame Rate
  • Focusable lens
  • Capture accurate photos & videos
  • Spot temperature feature
  • High-Low temperature
  • Threshold mode feature
  • 9 Color Palettes available
  • Auto Mode Only
  • Auto Emissivity
  • Compatible with iPhone® / Android™ Micro USB / Android™ USB-C
  • Waterproof Case included
  • Suitable for any time of day

Seek Thermal part numbers: SEE-CT-AAA (USB-C), SEE-LT-EAA (IOS), SEE-UT-EAA (Micro-USB)

Seek Thermal Compact Models Available

Read more: Compact | CompactXR | CompactPRO

Compact
£189
206 x 156 Thermal Sensor
36° Field of View
< 9 Hz Frame Rate
300 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactXR
£241.50
206 x 156 Thermal Sensor
20° Field of View
< 9 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactPRO
£389.00
320 x 240 Thermal Sensor
32° Field of View
< 15 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto & Span/Level Control
Adjustable Emissivity

Seek Thermal CompactXR Thermal Camera for Smartphone

The Seek Thermal CompactXR Thermal Camera for Smartphone utilises the power and convenience of your smartphone or tablet to create a small, yet professional, thermal imaging tool capable of highly accurate long-range imaging. The only long-range thermal imaging camera designed for the top iPhone® and Android™ models, connect and detect energy losses caused by inefficient HVAC systems, missing or damaged insulation, electrical faults, air leaks and so much more. The XR Thermal Camera is an intuitive and easy to use system for taking thermal photos or videos, sharing your findings and sending them for documentation. The CompactXR provides the same thermal performance as the Compact, however by narrowing the field-of-view it almost doubles the viewing distance, perfect for use outdoors.

The powerful thermal imaging of the CompactXR is due to an advanced 206 x 156 thermal sensor, built with military-proven technology. The high-performance sensor measures temperatures anywhere within a range of -40° to 330°C (-40° to 626°F) and the whole device is portable enough to fit right in your pocket. The narrow 20-degree field of view, assisted by a focusable lens for quick identification, allows for detection of heat signatures up to 550 meters (1,800 feet) away. The Seek CompactXR provides advanced infrared technology and lets you see thermal images on your smartphone day or night.

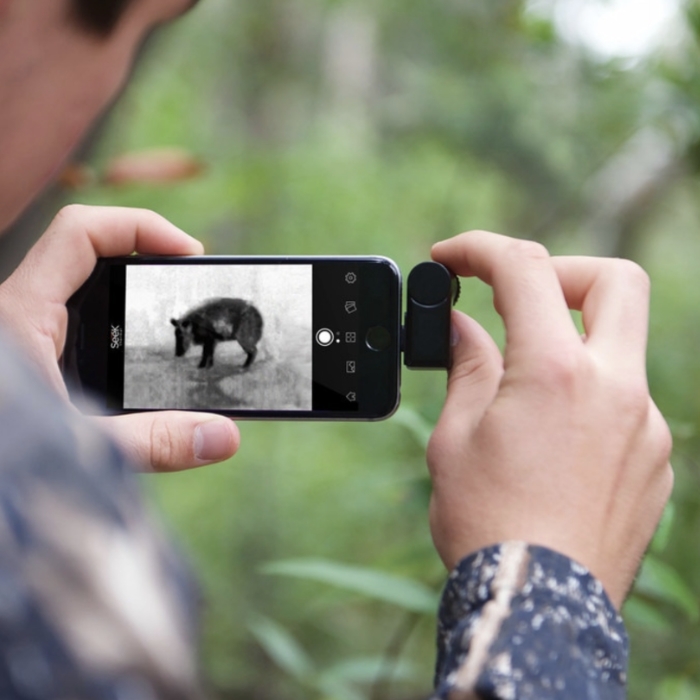

Seek Thermal CompactXR Thermal Camera In Use 1

Engineered to work even when the connected smart device is running low on power, negating the need for batteries or charging, the Seek CompactXR comes with its own waterproof carrying case for protection from the elements. Customise, record and share images with the free Seek Thermal app available on Google Play and iTunes App Store. Connect, detect and document discoveries for further analysis, all saved to the smartphone itself.

Stay safer when outside in the dark with the Seek Thermal CompactXR Thermal Camera for Smartphone, using the compact add-on to quickly and accurately scout unknown terrain or easily recover and rescue lost animals. Engage this military-proven technology to safeguard buildings, land or borders as even camouflage fails to adequately hide a heat signature. Boasting unique benefits especially at dawn, dusk, or over long distances where visible light is limited, the CompactXR makes it easier to discover and detect heat spots where lighting might provide unwanted attention. Choose between the iPhone®, Android™ Micro USB or Android™ USB-C model from the drop down menu.

Key Features

  • High quality 206 x 156 thermal sensor
  • Impressive -40° to 330°C detection
  • Narrow 20° field of view for greater range
  • Maximum 550 meter detection distance
  • < 9 Hz Frame Rate
  • Focusable lens
  • Capture accurate photos & videos
  • Spot temperature feature
  • High-Low temperature
  • Threshold mode feature
  • 9 Color Palettes available
  • Auto Mode Only
  • Auto Emissivity
  • Compatible with iPhone® / Android™ Micro USB / Android™ USB-C
  • Waterproof Case included
  • Suitable for any time of day
Seek Thermal CompactXR Thermal Camera In Use 2

Seek Thermal part numbers: SEE-CT-AAA (USB-C), SEE-LT-EAA (IOS), SEE-UT-EAA (Micro-USB)

Seek Thermal Compact Models Available

Read more: Compact | CompactXR | CompactPRO

Compact
£189
206 x 156 Thermal Sensor
36° Field of View
< 9 Hz Frame Rate
300 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactXR
£241.50
206 x 156 Thermal Sensor
20° Field of View
< 9 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto Mode Only
Auto Emissivity
CompactPRO
£389.00
320 x 240 Thermal Sensor
32° Field of View
< 15 Hz Frame Rate
550 Meters Detection Distance
Focusable Lens
-40° to 330°C Detection
Waterproof Case Included
Photos & Videos
Spot Temperature
High-Low Temperature
Threshold Mode
9 Color Palettes
Auto & Span/Level Control
Adjustable Emissivity
What's In The Box?
  • 1 x Seek Thermal Compact XR Thermal Camera for Smartphone
  • 1 x Waterproof Carrying Case
More Information
Specification
  • Thermal Sensor: 206 x 156
  • Detection Distance: 550 Meters (600 Yards, 1,800 Feet)
  • Field of View: 20 Degree FOV
  • Temperature Range: -40°C to 330°C (-40°F to 626°F)
  • Frame Rate: < 9 Hz
  • Focus: Adjustable Focus
  • Lens Material: Chalcogenide
  • Microbolometer: Vanadium Oxide
  • Pixel Pitch: 12 Microns
  • Spectral Range: 7.5 – 14 Microns
  • User Interface: Free Seek Thermal Mobile App
  • Temp. Display Scale: Fahrenheit or Celsius
  • Color Palettes: 9 Options
  • Storage Media: Stores Directly to Smartphone
  • Battery: Powered by Smartphone. Consumes up to 280 mW
  • Phone Compatibility: iPhone® and Android™
