Sofamel PATL-MC-3 with Automatic Clamps (For Medium Voltage Overhead Lines)

SKU: SOFAPATLMC31616
  • Safety kit for repair operations concerning medium voltage overhead lines
  • Intuitive clamps boasting an automatically activating fastening function
  • Gripper dispenser head and recovery hook incorporated for ease of use
More Info
Typically ships in 14-28 working days

Sofamel PATL-MC-3 with Automatic Clamps (For Medium Voltage Overhead Lines)

The Sofamel PATL-MC-3 with Automatic Clamps is built to keep electrical engineers safe from perilous returning voltages, in a short circuit with a maximum current of 4.0KA/1s (depending on model). Purposefully designed for medium voltage overhead lines, the automatically fastening clamps are compatible with cylindrical conductors with a diameter from 3 to 20mm.

The three clamps of the PATL-MC-3 can be fitted at the same time due to the extremely convenient gripper dispenser head. Conversely, removal of the clamps from the exposed conductor is easy with the included recovery hook. Choose between the three Sofamel models in the PATL-MC-3 range to match the required earthing and short-circuit parameters (see specifications below for more information), each rated according to the IEC 61230 standard.

Sofamel part number: PATL-MC-3/1616, PATL-MC-3/2516, PATL-MC-3/3525

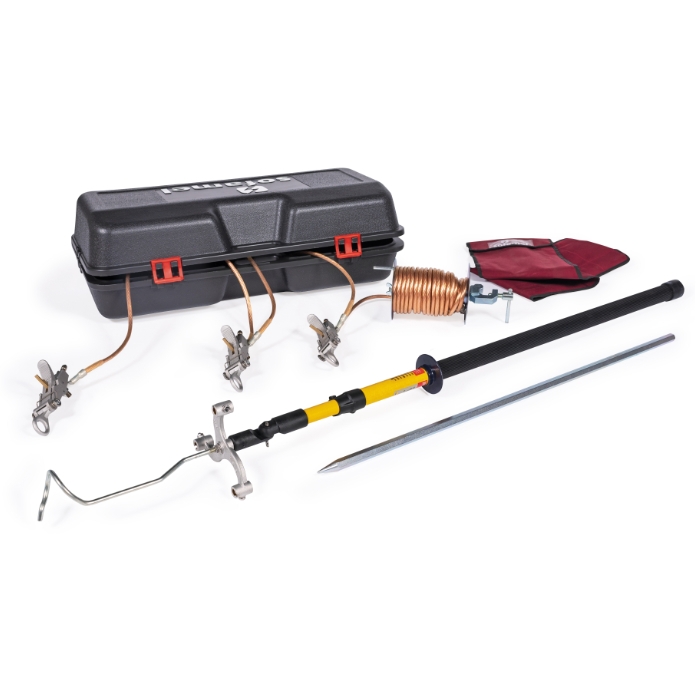

What's In The Box?

  • 1 x PATL-MC-3 Earthing and Short Circuit Equipment
  • 3 x MC aluminium alloy clamps with automatic activation fastening
  • 1 x dispenser head with hook with M-10 thread
  • 2 x Copper cables with PVC insulation of 16/25/35mm² section (depending on model) - 2.5m long
  • 1 x Copper cable with PVC insulation of 16/25mm² section (depending on model) - 15m long
  • 1 x Metallic spool to store the 15m of earthing cable
  • 1 x Telescopic pole (1.10m folded and 2m extended)
  • 1 x Earthing rod
  • 1 x Plastic case for equipment
  • 1 x Bag for pole and earthing rod
Specification

Short Circuit Current Max. ICC

  • PATL-MC-3/1616: 4.0KA/1s
  • PATL-MC-3/2516: 6.9KA/1s
  • PATL-MC-3/3525: 9.0KA/1s
