T&R 5000AL PCU2 Primary Current Injection Output Lead

SKU: TANDR5000AL
A 2m long, primary current injection output lead with a maximum rating of 5000A.
More Info
Available to order - contact for lead time

T&R 5000AL Primary Current Injection Output Lead

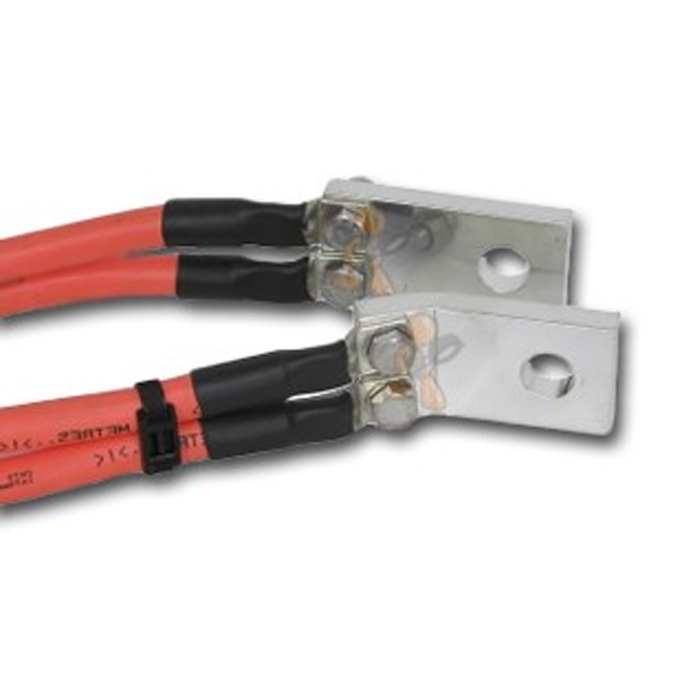

The T&R 5000AL Primary Current Injection Output Lead is a double isolated, low impedance, high current output lead with a maximum rating of 5000A. It is designed for use with the T&R PCU2 mk5 Primary Current Injection Test System. The 5000AL has good flexibility, is fully tropicalised and has a copper bar termination. This primary current injection lead is 2m in length, however other lengths are available with prices on request.

Specification
  • Rating: 5000A
  • Length: 2m
  • CSA: 840mm²
  • Termination; Copper bar
