T&R NLU5000 Primary Current Injection Loading Unit

SKU
TANDRNLU5000
Loading unit for T&R PCU1-SP primary current injection test system. 1500A continuous output, upto 5000A intermittent.
More Info
inc VAT £6,476.40 ex VAT £5,397.00
Available to order - contact for lead time


Product Details

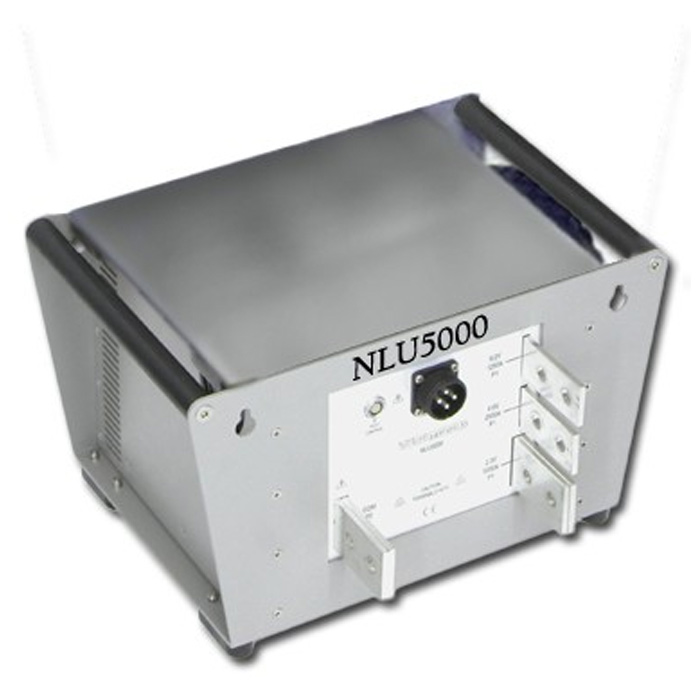

T&R NLU5000 Primary Current Injection Loading Unit

The T&R NLU5000 Primary Current Injection Loading Unit is to be used in conjunction with the T&R PCU1-SP Primary Current Injection System. It is a loading unit that provides the high current for PCI testing. The NLU5000 delivers a maximum intermittent output of 5000A with a 1500A continuous output. It has three output taps to allow for a wide range of load impedance.

More Information
Specification

Current Metering

Range Full scale Resolution Accuracy
10% 500A 0.1A ±0.5%rdg+5d
50% 2500A 1A ±0.5%rdg+5d
100% 5000A 1A ±0.5%rdg+5d
200% 10kA 1A ±1.5%rdg+5d

Intermittent Ratings

Output voltage Continuous 5mins 1mins 40s
2.3V 1500A 3000A 4500A 5000A

4.6V

750A 1500A 2250A 2500A
9.2V 375A 750A 1125A 1250A
  • Dimensions: 450 x 275 x 370mm
  • Weight: 55kg
