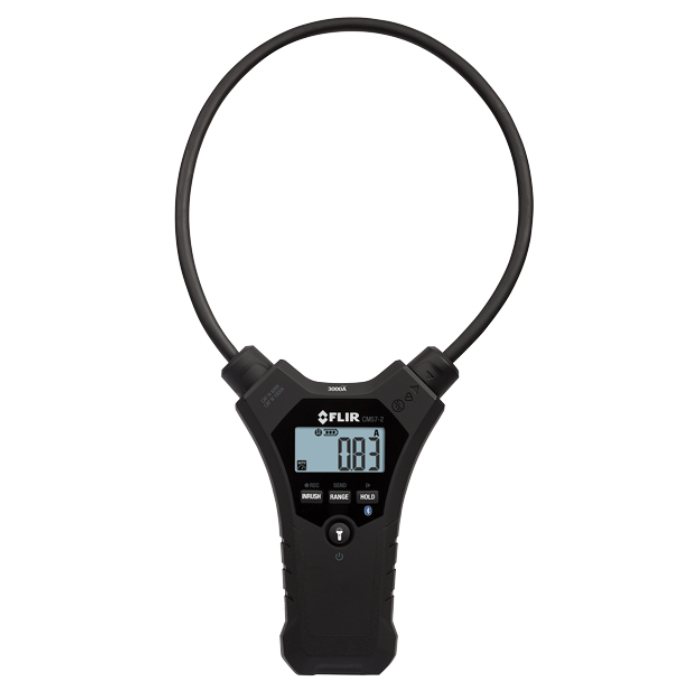

FLIR CM57-2 Flexible Clamp Meter

FLIR
SKU: FLIRCM572
  • 18-inch (45.72cm) flexible coil clamp
  • Connectivity to METERLiNK® App via Bluetooth up to 10m away
  • AC current ranges measured from 30.00A to 3000.0A
More Info
Typically ships in 3-5 working days

FLIR CM57-2 Flexible Clamp Meter

The FLIR CM57-2 Flexible Clamp Meter is designed for use in difficult current measurement readings. The CM57-2 boasts an 18-inch (45.72cm) flexible coil clamp allowing for measurements to be taken in tight environments providing the ideal tool for multiple conductor measurements and double wrap requirements. With built-in dual LED work lights, the CM57-2 can be used even in challenging lighting environments.

AC current ranges can be measured from 30.00A to 3000A with a Bluetooth range of up to 10m and a data record mode of 20,000 points with a. 1-minute sample rate. The CCM57-2 has a 3,000-count LCD display complete with a backlight and multi-function indicators (progressive low battery, over range and hold)

FLIR METERLiNK® App

The FLIR CM57-2 is compatible with the FLIR METERLiNK® App allowing users to connect ups to seven FLIR compatible meters at once to monitor a number of environmental and electrical conditions simultaneously. METERLiNK® allows for images to be captured and monitored safely even in hazardous environments. When using the CM57-2 Clamp and the METERLiNK®, technicians can closely monitor key measurement readings and easily share with colleagues and customers.

The CM57-2 is drop tested to 3m and is IP54 protected, offering protection from water and dust ingress [protection when working in the field]. Battery powered by 2 x AAA alkaline batteries, the CM57-2 has a battery of approximately 100 hours with auto power off after 10 minutes to help preserve battery life.

Key Features

  • 18-inch flexible coil clamp
  • Dual LED work lights for working in poor light
  • Bluetooth connectivity up to 10m
  • METERLink® compatibility
  • Live data streamed in real-time to a smart device
  • AC current ranges from 30.00A to 3000.0A
  • Measure high currents from a safe distance
  • Measure current in hard-to-reach places
  • Perform electrical inspections in poorly lit areas
  • 3,000 display count
  • IP54 rated and 3m drop tested
  • Battery powered up to 100 hours
  • Auto power off after 10 minutes
Specification

Measurement and Analysis

  • AC Current Bandwidth: 45-500Hz (sine wave)
  • AC Current Ranges and Resolution: 30.00A, 300.0A and 3000.0A
  • AC Response: True RMS
  • Basic AC Current accuracy (of reading): ±3.0% + 5 digits
  • Display Rate: 2 times per second
  • Flex Coil Tip diameter: 45cm (18inch)
  • Flex Coil Tip diameter: 13mm (0.5inch)
  • Inrush current: Minimum 0.5A, 100mS
  • Max Conductor Diameter: 12cm (4.7inch)
  • Maximum AC current: 3000A AC
  • Maximum resolution: 0.01A
  • Measurement rate: 1.5 samples per second
  • Positional Error (distance from optimum): 35 mm (1.4 in) ±1.0%, 50 mm (2.0 in) ±1.5%, 60 mm (2.4 in) ±2.0%

Communication and data storage

  • Bluetooth range max: 10m (32ft)
  • Data record mode: 20,000 points, 1 minute sample rate
  • Wireless ID# MAx: Up to 20

User Interface

  • Display: 3000 count LCD with backlight and multi-function indicators

Power

  • Auto Power off: Approximately 10 minutes
  • Battery life: 100 hours with alkaline batteries (calculated)
  • Battery type: 2 x 1.5V AAA

General

  • Coil Bend Radius: 80mm (3.1in)
  • Coil diameter: 7.5mm (0.3in)
  • Display Indications: Progressive low battery, over range, hold
  • Maximum Conductor Diameter: 12cm (4.7in)
  • Size (L xW xH): 330mm x 175mm x 28.45mm (13in x 6.89in x1.12in)
  • Weight: 233g (0.51lb) with batteries
  • Work lights: 2 x LEDS

Environmental and Certifications:

  • Certifications: UL, CE, FCC, IC, UKCA, CSAUS
  • Drop test: 3m (9.8ft)
  • IP Rating: IP54 dust protected and splash resistant
  • Operating altitude: 2000m (6562ft) max
  • Operating Humidity: Maximum 80% up to 35ºC (95ºF) decreasing linearly to 60% at 45ºC (113ºF)
  • Operating temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • Safety Rating: CAT IV 600V, CAT III 1000V
  • Standards:
    Safety (UL):
    IEC 61010-1:2010, IEC 61010-2-032:2012
    EMC (FCC):
    47 CFR Part 15 Subpart B
    EMC (CE):
    EN IEC 61326-1:2021
    EN IEC 61326-2-2:2021
    EN 301 489-1 V2.2.3 (2019-11)
    EN 301 489-17 V3.2.4 (2020-09)
    RF:
    ETSI EN 300 328 V2.2.2
    EN 62479:2010
    EN 50663:2017
