TPI 285 Digital Clamp Meter

TPI
SKU: TPI285
  • Measure AC/DC current, AC/DC voltage, frequency with duty cycle, inrush current and capacitance
  • Temperature measurements up to 1830ºF (999ºC)
  • Compatible with TPI View App
More Info
In Stock - Available Next Day

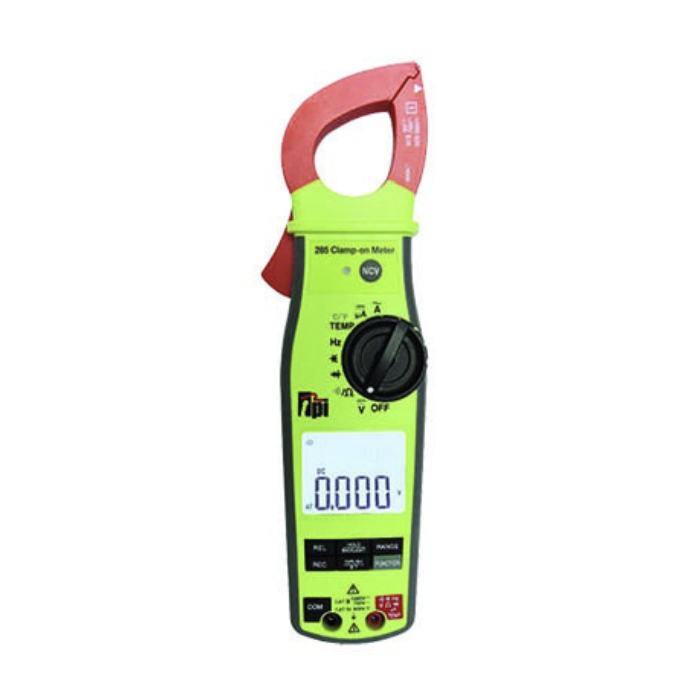

TPI 285 Digital Clamp Meter

The TPI 285 Digital Clamp Meter is a compact, hand held auto ranging digital clamp meter with Bluetooth output allowing for use with the TPI View App. With a backlit display allowing for up to 6000 count dual measurements to be displayed, with minimum, maximum and average recordings shown. Accurately measure without the need to precisely position a wire or cable in the centre of the jaw/clamp.

The TPI 285 allows for Temperature measurements up to 1830ºF (999ºC) with a safety rating of CATIV 600V allowing for measurements to be taken in challenging environments. Frequency with duty cycle and inrush current measurement for motor start up currents, capacitance, DC microamps and non-contact voltage detection all features of the the TPI285. The Clamp meter is IPXO rated per IEC 60529 standards.

Offering True RMS for accurate voltage and amperage measurements, the TPI 285 is ideal for usage in industrial, domestic and commercial environments. Battery powered by 9V alkaline batteries, users will be able to use the clamp meter for approximately 90 hours (no backlight or Bluetooth).

TPI View App

The TPI 285 is compatible with the TPI View App allowing users to store measurements, create and email test reports to customers and colleagues with GPS tagged date and time thanks to Bluetooth LE communication. Using the app allows for remote readings to be taken showing live readings from a safe distance. Using the app also allows for measurements to be printed using the optional A711BT printer.

Key Features

  • AC Amps up to 600A
  • DC Microamps (uses test leads up to 600uA)
  • AC voltage up to 750V
  • DC Voltage up to 750V
  • DC Voltage up to 1000V
  • Resistance up to 60M Ohm
  • Capacitance up to 60mF
  • Frequency up to 6MHz
  • Temperature measurements up to 1830ºF (999ºC)
  • Duty cycle up to 60kHz
  • In-rush current measurements
  • Ability in Record mode to record minimum, maximum and average
  • Relative mode
  • Diode testing
  • Continuity and non-contact voltage
  • Backlit display
  • Bluetooth LE communication
  • Battery life up to 90 hours
  • CATIV rated for safety
  • Can be used with TPI View App
Specification

General Specifications

  • Display: 6000 count dual display LCD with backlight
  • Max voltage between input terminal and ground: 1000VDC/ 750VAC
  • Operating temperature: 32ºF to 113ºF (0ºC to 40ºC)
  • Storage temperature: -4–F to 140ºF (-20ºC to 60–C)
  • Relative humidity: 80% non-condensing
  • Altitude: 6,562 feet maximum (2,000 meters maximum)
  • IP rating: IPX) per IEC 60529
  • Battery type: 9V Alkaline (NEDA 1604)
  • Battery life: Approximately 90 hours (no backlight or Bluetooth)
  • Size: 9.9" x 2.5" x 1.4" (252mm x 64mm x 36mm)
  • Weight: 0.79lb (358g)
  • Bluetooth LE: 4.2

ACV (45Hz- 450Hz)

  • Range 6V/Resolution: 0.001V/ Accuarcy: +/- (1.2% + 3 digits)/ Impedance:10MΩ
  • Range 60V/Resolution: 0.01V/ Accuarcy: +/- (1.2% + 3 digits)/ Impedance:10MΩ
  • Range 600V/Resolution: 0.1V/ Accuarcy: +/- (1.5% + 3 digits)/ Impedance:10MΩ
  • Range 750V/Resolution: 1V/ Accuarcy: +/- (1.5% + 3 digits)/ Impedance:10MΩ

DCV

  • Range 6V/Resolution: 0.001V/ Accuarcy: +/- (0.5% + 2 digits)/ Impedance:10MΩ
  • Range 60V/Resolution: 0.01V/ Accuarcy: +/- (0.5% + 2 digits)/ Impedance:10MΩ
  • Range 600V/Resolution: 0.1V/ Accuarcy: +/- (0.5% + 2 digits)/ Impedance:10MΩ
  • Range 1000V/Resolution: 1V/ Accuarcy: +/- (0.55% + 2 digits)/ Impedance:10MΩ

ACA Measured with clamp (45Hz- 450Hz)

  • Range 60A/Resolution: 0.01A/ Accuarcy: +/- (3% + 10 digits)/ Protection:600A AC Max
  • Range 600A/Resolution: 0.1A/ Accuarcy: +/- (3% + 5 digits)/ Protection:600A AC Max
  • Accuarcy is with conductor centred in jaw within +/- 5% of centre

Resistance (Ω)

  • Range 600Ω/Resolution: 0.1Ω/ Accuarcy: +/- (1.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 6KΩ/Resolution: 0.001Ω/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 60KΩ/Resolution: 0.01kΩ/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 600kΩ/Resolution: 0.1kΩ/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 6MΩ/Resolution: 0.001MΩ/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 60MΩ/Resolution: 0.01Ω/ Accuarcy: +/- (3.0% + 10 digits)/ Protection:600VDC/600VAC Peak

Diode

  • Test voltage: ≈2.6V/ Test current: ≈1mA/ Description: Measures approximate forward bias of diode. Also beeps when shorted/ Protection: 600V Peak

Continuity

  • Threshold to audible beep: Approx <7Ω
  • Protection: 600V Peak

Capacitance

  • Range 6nF/Resolution: 0.001nF/ Accuarcy: +/- (5.0% + 20 digits)/ Protection:600VDC/600VAC Peak
  • Range 60nF/Resolution: 0.01nF/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 600nF/Resolution: 0.1nF/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 6uF/Resolution: 0.001uF/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 60uF/Resolution: 0.01uF/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 600uF/Resolution: 0.1uF/ Accuarcy: +/- (3.0% + 5 digits)/ Protection:600VDC/600VAC Peak
  • Range 6mF/Resolution: 0.001mF/ Accuarcy: +/- (7.0% + 10 digits)/ Protection:600VDC/600VAC Peak
  • Range 60mF/Resolution: 0.01mF/ Accuarcy: +/- (10.0% + 20 digits)/ Protection:600VDC/600VAC Peak

Frequency

  • Range 60Hz/Resolution: 0.01Hz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 600Hz/Resolution: 0.1Hz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 6kHz/Resolution: 0.001kHz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 60kHz/Resolution: 0.01kHz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 600kHz/Resolution: 0.1kHz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 6MHz/Resolution: 0.001MHz/ Accuarcy: +/- (0.5% + 2 digits)/ Protection:600VDC/600VAC Peak

Duty cycle

  • Range 5% to 95% (<600Hz)/Resolution: 0.01%/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 10% to 90% (600H to 6kHz)/Resolution: 0.01%/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak
  • Range 20% to 80% (6kHz to 60Hz)/Resolution: 0.01%/ Accuarcy: +/- (1.0% + 2 digits)/ Protection:600VDC/600VAC Peak

Temperature

  • Range: -49º to -0.1ºC)/Resolution: 0.1ºC/ Accuarcy: +/- (2.0% + 3ºC)/ Protection:600VDC/600VAC Peak
  • Range: 0º to 99.9ºC)/Resolution: 0.1ºC/ Accuarcy: +/- (1.0% + 1ºC)/ Protection:600VDC/600VAC Peak
  • Range: 100º to 999ºC)/Resolution: 1ºC/ Accuarcy: +/- (1.0% + 2ºC)/ Protection:600VDC/600VAC Peak
  • Range: -57.9º to 31.9ºF)/Resolution: 0.1ºF/ Accuarcy: +/- (2.0% + 5.4ºF)/ Protection:600VDC/600VAC Peak
  • Range: 32.0º to 211.9ºF)/Resolution: 0.1ºF/ Accuarcy: +/- (1.0% + 1.8ºF)/ Protection:600VDC/600VAC Peak
  • Range: 212º to 1830ºF)/Resolution: 1ºF/ Accuarcy: +/- (1.0% + 4ºF)/ Protection:600VDC/600VAC Peak

Non-contact voltage

  • Detects AC voltage greater than 50V. Audible and visual indication
Label Type Size Download
pdf TPI 285 Digital Clamp Meter Datasheet pdf 496.3 KB Download
