TPI 343 Dual Input K-Type Thermometer

TPI
SKU: TPI343
  • Accepts all type-K probes with temperature range of -50˚C to 1350˚C
  • Takes two measurements simultaneously, thus allowing differential calculation
  • On-site auto-calibration function ensures accuracy at all times
More Info
In Stock - Available Next Day

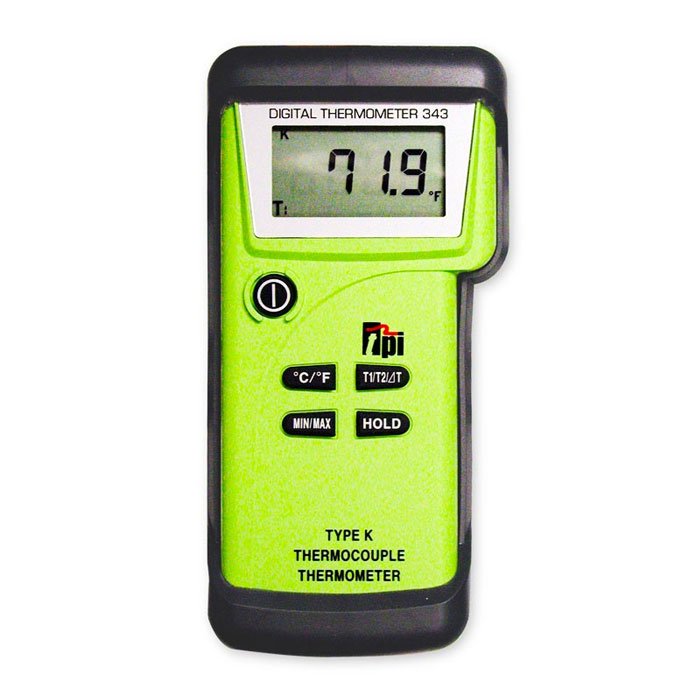

TPI 343 Dual Input K-Type Thermometer

The TPI 343 Dual Input K-Type Thermometer displays readings from two different probes at once and also offers differential temperature measurement between the two values. Depending on the probe, the thermometer can measure air, liquid or surface temperature between -50˚C and 1350˚C. Two GK11M temperature probes come supplied as standard with a measurement range of -50˚C to 204˚C for air, surface and liquid temperatures.

Min/max recording gives a clear picture of temperature outputs and accuracy is safeguarded by a clever auto-calibration function whereby ice-water can be used to calibrate the measurement range. Results are shown on the TPI 343’s backlit digital screen and operation is extremely easy thanks to a simple push-button interface. Data hold allows the reading to be frozen on screen and the user can also toggle between Celsius and Fahrenheit.

The TPI 343 comes supplied with probes, a carry case and a protective rubber boot. The thermometer is covered by a three-year warranty and has a battery life of roughly 200 hours.

TPI part number: 343

Key Features

  • Temperature range: -50˚C to 1350˚C
  • GK13M probes supplied with -50˚C to 204˚C range
  • Differential temperature measurement
  • On-site auto-calibration function
  • Min/max recording
  • Toggles between ˚C and ˚F
  • Data hold
  • 200-hour battery life
  • Three-year warranty
 Standard KitFlow & Return KitLegionnaires’ Kit
TPI 343 Thermometer ✔ ✔ ✔
2 x CK21M Temperature Pipe Clamps   ✔
2 x GK11M Air Temperature Probes ✔ ✔
1 x FK11M Immersion Probe     ✔
1 x CK11M Surface Probe     ✔
2 x GK21M air (Beaded) Probes     ✔
A901 Soft Carry Case ✔ ✔ ✔



TPI 343 Standard Kit Featured Contents

  • TPI 343 Dual Input Thermometer
  • 2 x GK11M temperature probes
  • Soft carry pouch

TPI 343 Flow & Return Kit Featured Contents

  • TPI 343 Dual Input Thermometer
  • 2 x CK21M Temperature Probes
  • 2 x GK11M Air Temperature Probe
  • Soft carry pouch

TPI 343 Legionnaire’s Kit Featured Contents

  • TPI 343 Dual Input Thermometer
  • 1 x FK11M Immersion Probe
  • 1 x CK11M Surface Probe
  • 2 x GK21M Beaded Air Probes
  • Soft carry pouch

What's In The Box?

  • TPI 343 Dual Input Thermometer
  • 2 x GK11M temperature probes
  • Soft carry pouch
  • Instruction manual
  • Protective rubber boot
Specification
  • Input: Dual K-type thermocouple
  • Temperature Range: -50°C to 1,350°C (-58°F to 2,462°F)
  • Resolution: 0.1°C/°F (up to 999.9°C/°F); 1.0°C/°F (above 1,000°C/F)
  • Accuracy: ±1.6°C (±3°F) (from -50°C to 0°C); ±0.3% of rdg +1°C (1.8°F) (from 0°C to 600°C); ±0.4% of rdg +1°C (1.8°F) (from 600°C to 1,350°C)
  • Update Rate: 2.5 times/second
  • Key Buttons: On/Off, T1, T2, T1-T2, °C, °F, HOLD
  • Field Calibration: By key operation
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
  • Battery: 9V
  • Battery Life: 200 hours (Alkaline)
Label Type Size Download
pdf TPI 343 Datasheet pdf 55.7 KB Download
