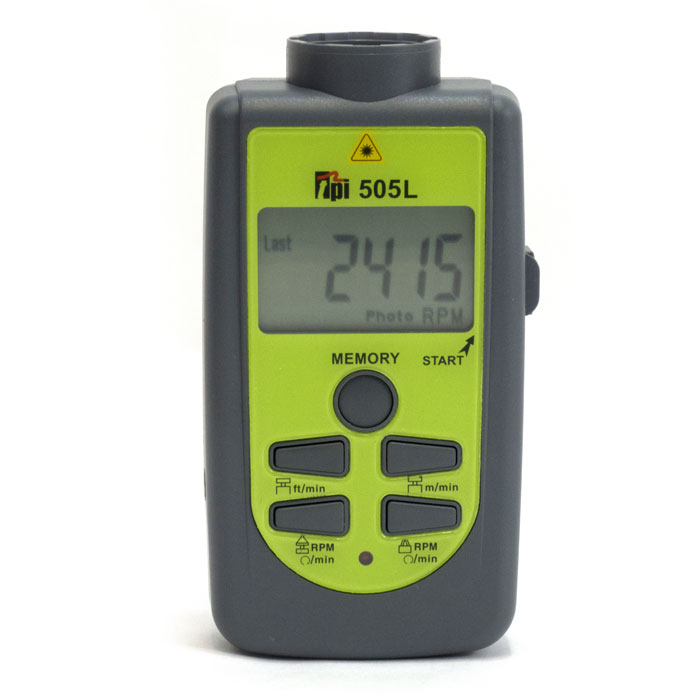

TPI 505L Photo and Contact Hand Tachometer

  • Measurement of surface speed in RPM, m/min, and ft/min
  • Takes non-contact photo measurement and contact measurement
  • Saves minimum, maximum and most recent value for recall
More Info
inc VAT £172.80 ex VAT £144.00
Typically ships in 3-5 working days

Product Details

TPI 505L Digital Hand Tachometer

The TPI 505L Digital Hand Tachometer measures the surface speed on belts and wheels, though a laser photo tachometer sensor (max distance 30m) or a contact tachometer sensor. It measures in both RPM (up to 30,000) and metres (up to 3046m/min) or feet per minute to within an accuracy of ±0.1%. It is also easy to test the 505L by pointing it at a fluorescent light and checking that the display reads 7200 RPM (±5 RPM).

Clearly-labelled push buttons make the TPI 505L very easy to use and readings are clearly displayed on the LCD screen. The tachometer saves the minimum value, maximum value and most recent value to be recalled later so it provides an in depth look at system performance. A tripod connection allows it to stand and observe a system independently without risking errors with movement. The instrument is supplied with a contact cone adaptor, a contact funnel adaptor, a contact wheel adapter, reflective tape and a carry case as well as three-year warranty.

TPI part number: 505L

Key Features

  • Photo tachometer: 30,000 RPM
  • Contact tachometer: 20,000 RPM
  • Contact surface speed: 0.9 - 3046 m/min; 2.0 - 9990 ft/min
  • Push button operation
  • Clear LCD display
  • Three-year warranty
What's In The Box?
  • TPI 505L Photo & Contact Tachometer
  • Reflective Tape
  • Contact RPM Adapter (Screw-On)
  • RPM Adapter (Cone Type)
  • RPM Adapter (Funnel Type)
  • Surface Speed Test Wheel
  • Carrying Case
More Information
  • Display: 5 Digit LCD
  • Operating Temperature: 0° to 50°C
  • Operating Humidity: 80% Max. R.H.
  • Power Supply: AA Alkaline Bat. (2)
  • Maximum Distance from Target (photo mode): 25 feet
  • Detection Type: Laser reflection
  • Laser Output: Class II 635~670nm
  • Signal Output: +5V pulsed
  • Tripod Connection: 1/4 inch
  • Photo Tach: 6 - 30,000 RPM, ± 0.1% of FS + 1 digit
  • Contact Tach: 6 - 20,000 RPM, ± 0.1% of FS + 1 digit
  • Surface Speed: 0.9 - 3,046 m/min ± 0.1% of FS + 1 digit / 2.0 - 9,990 ft/min ± 0.1% of FS + 1 digit
  • Dimensions: 123mm x 62mm x 31mm, 181g
