TPI SP323 Bluetooth Temperature Clamp Probe (Choice of Option)

TPI
SKU: TPISP323
  • Temperature measurement on air conditioning, heating and refrigeration systems
  • Data log up to 10,000 readings, with date and time stamp
  • Bluetooth connectivity to TPI View App
More Info

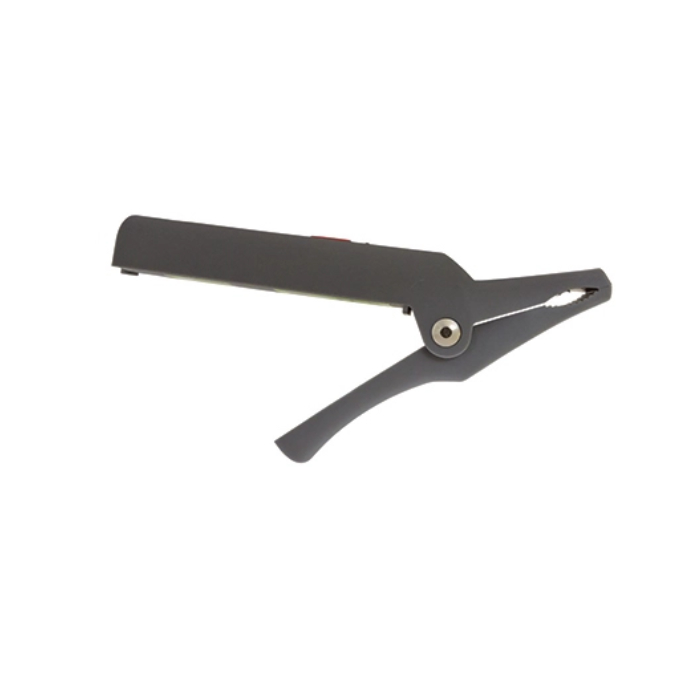

TPI SP323 Bluetooth Temperature Clamp Probe

The TPI SP323 Bluetooth temperature Clamp Probe is used to measure the temperature on air conditioning, heating and refrigeration systems. The clamp probe has a temperature range of -40°F to 185°F (-40°C to 85°C) and a clamp range of 1/4 inch to 1 1/2 inch (6mm to 38mm).

Using a multi-coloured LED indicator, the operational status of the device is clearly given to the user. The SP323 can be used as a data logger for up to 10,000 readings, each with a date and time stamp. The unit has a battery life of approximately 170 hours.

Readings for temperature measurements can be analysed over time with the data logger, allowing users to identify and intermittent problems. Readings can be taken from 1 second to 59 minutes and 59 second intervals. The TPI SP323 allows the user to perform, save, e-mail and/or print differential temperature readings such as Radiator Balancing or Flow & Return on Boilers or Heat Pumps.

An optional second clamp probe is available at a reduced price.

TPI View App

The TPI View App allows users to display real time readings in both numerical and graph format. Users are able to create multiple jobs and attach reports to each job, whilst giving each report a different reference or title. It also connects to a smart device using the TPI View App. Using the App the SP323 can send live measurements and when used in conjunction with the TPI SP 670 Smart pressure Probe can be used to calculate Superheat and Subcooling. Using the App, users are able to remotely data log using multiple devices at the same time. Measurements can also be viewed in real time and reports generated and emailed or printed for clients instantly.

Key Features

  • Temperature Range: -40°F to 185°F (-40°C to 85°C)
  • Clamp Range: 1/4 inch to 1 1/2 inch (6mm to 38mm)
  • Connect to Smart Device and use with the TPI View App
  • Temperature measurement on air conditioning, heating, and refrigeration systems
  • View “LIVE” Temperature Readings and instantly save, e-mail and/or print
  • Save, e-mail and/or Print “Differential” Temperature readings with one or two SP323 probes
  • Perform, save, e-mail and/or print differential temperature readings such as Radiator Balancing or Flow & Return on Boilers or Heat Pumps
  • Remote Data Logging Function with multiple instruments logging at the same time
  • Store ALL GPS tagged Test Results within the TPI View Job Management
  • Use in conjunction with the SP670 High Pressure Smart Probe to perform Superheat and Subcooling measurements
Specification
  • Temperature Range: -40⁰F to 185⁰F (-40⁰C to 85⁰C)
  • Clamp Pipe Size: 1/4 inch to 1 1/2 inch (6mm to 38mm)
  • Resolution: 0.1⁰F / 0.1⁰C
  • Accuracy: 32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C)
  • Data Logging: 10,000 readings in 1 second to 59 minutes 59 second intervals
  • Battery life: Approximately 170 hours
  • Battery: AAA x3 Alkaline
  • Operating Temperature: -4 °F ~ 140 °F (-20 °C ~ 60 °C)
  • Storage Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Humidity: 0-80% RH
  • Weight: 5.64oz (160-g)
  • Bluetooth: 5.0 (350 foot range depending on obstacles)
Label Type Size Download
pdf TPI SP323 Datasheet pdf 404 KB Download
