Tramex Water Damage Restoration Kits

Tramex Water Damage Restoration Kits

All Tramex Water Damage Restoration Kits use Tramex Encounter MEX5 Moisture and Humidity Meter, the Tramex CME5 Digital Concrete Moisture Meter or CMEX5 Concrete Moisture Encounter X5 in conjunction with a ME5 Moisture Encounter Meter to measure moisture levels in concrete and wood. Professionals can accurately investigate the extent of moisture damage and therefore avoid high humidity levels in structures that can lead to serious subsequent problems. The advanced Tramex Water Damage Restoration Inspector and Master Kits also utilise a DL-RHTX Feedback Temperature and Humidity Data Logger for long-term monitoring of air temperature and relative humidity.

The Tramex CME5 Concrete Encounter Moisture Meter is capable of non-destructive moisture measurement in concrete in accordance with ASTM F2659. It has a concrete moisture content range of 0% to 6% with equivalent scales for anhydrite screed (0 to 1.9) and concrete screed (0 to 4).

• Measures concrete moisture content up to 6%
• Non-destructive device
• Carbide Method moisture content equivalent for Concrete 0 to 4
• Carbide Method moisture content equivalent for Anhydrite 0 to 1.9
• 20mm approximate (3/4") depth of penetration

The Tramex CMEX5 Concrete Moisture Encounter X5 with non-destructive measuring system is designed specifically for concrete floors and slabs. Using Gravimetric testing as a baseline, it provides instant and precise quantitive measurements of the moisture content within a range of 0 - 6.9%. For concrete and other such cementitious substrates, the meter provides Carbide Method (CM) equivalent readings alongside comparative readings as per ASTM F2659. The CM measuring range for concrete is 0 - 4.3 while the Gypsum floor screed range is 0 - 12.

• Measures concrete moisture content up to 6.9%
• Non-destructive device
• Moisture counter for wood 5 to 30%
• Comparative moisture content equivalent for Gypsum floor screed 0 to 12
• Carbide Method moisture content equivalent for Anhydrite 0 to 2.7
• Carbide Method moisture content equivalent for Concrete 0 to 4.3
• Relative Humidity range of 0 → 99%
• Humidity accuracy of 0% → 99%RH +/- 2% @ 25°C / 77°F
• 20mm approximate (3/4") depth of penetration

The Tramex ME5 Moisture Encounter Meter is a non-invasive moisture meter that can detect moisture in wood and building materials such as drywall, plaster, tiles and masonry. It uses a non-destructive electrical signal to measure wood moisture content between 5% and 30% and can also produce a 0 to 100 WME comparative reading.

• Measures wood moisture content between 5% and 30%
• 0 to 100 comparative scale for other materials
• Large, clear screen
• Shallow signal up to 10mm (0.40”)
• Deep signal up to 30mm (1.25")

The Tramex DL-RHTX Feedback Temperature and Humidity Data Logger is suitable for long-term monitoring of air temperature and relative humidity through its internal sensors. It has an air temperature measurement range of -40˚C to 125˚C and a relative humidity range of 0 to 100% RH. It is also possible to measure temperature and humidity via an external plug-in sensor as well as contact temperature via another external probe with a range of -30˚C to 80˚C. The large internal memory of the Tramex DL-RHTX has enough space for 100,000 different data points and has Bluetooth wireless connectivity which is capable of communicating with the user’s smartphone over a distance of up to 50m.

• Measures air temperature in a range between -40˚C to 125˚C
• Includes a humidity range of 0 to 100% RH
• Impressive internal memory of 100,000 data points
• Connects to Tramex Feedback DataLogger App

The The Tramex Water Restoration Master X kit comes supplied with a Tramex Encounter MEX5 Moisture and Humidity Meter, that is a dual depth moisture meter that can be used for wood and a number of building materials including drywall, roofing, plaster, tile and masonry.With a built-in hygrometer for ambient conditions and psychrometric values. The MEX5 has an infrared surface thermometer and when used with external in-situ RH probes can provide in-situ equilibrium RH readings. Pin probes for wood, drywall and WME readings are also in built.

The MEX5 moisture meter features duel depth measuring range with a deep depth penetration of up to 1 1/4" (30mm) and a shallow depth penetration up to 3/8" (9mm). The dual depth readings of surface and core moisture can be compared allowing tihe elimination of the subtract when testing coverings. The Pinless moisture functionality of the MEX5 measure moisture content of % of wood from 0-30%. With optional pin probes for wood, wood by products and drywall and relative humidity sensor probes for evaluating ambient conditions. Moisture test results can be visualised and Geotagged within the Tramex Meter App and moisture maps, reports and charts produced to share with colleagues or customers.

Applications

Tramex Water Damage Restoration Kits are ideal for looking at humidity and dampness left by water damage throughout buildings. Failure to properly assess lingering moisture levels can lead to structural issues, mould, rot, insulation degradation and other serious problems so these Kits each contain the meters, probes and accessories needed for competent, accurate assessment.

Featured Accessories (depending on Kit)

Hygro-i2 Relative Humidity probe

Used in conjunction with Tramex non-destructive moisture meters, the Hygro-i2 probe provides measurements of humidity, temperature and dew-point in structural materials such as concrete flooring and walls. With a fast acclimation time, best-in-class accuracy even up to >90% and temperature range of -40°C to 80°C with an accuracy of ±2˚C the Hygro-i2 probe is built for reliability and speed. Perform in-situ & hood type RH testing to comply with international standards BS 8201, 8203, 5325 & ASTM F2170.

RHP-SNWB 127mm (5") Short Narrow RH Probe

With its 4mm diameter is fully capable of capturing Relative Humidity (RH) readings in small or difficult to access crevices, this probe also measures Temperature, Dew Point temperature and grains per ground (grams per kilo) humidity ratio. It has a temperature range of -40°C to 80°C, relative humidity range of 0 to 100% and temperature accuracy of ± 0ºC to 90.ºC

RHP-NWB 260mm (10") Narrow Relative Humidity Probe

For evaluating the moisture conditions of wall and cavity structures within the building envelope or between tiles, this 4mm diameter probe boasts a best in class accuracy and reliability even at Relative Humidity (RH) above 90%. In addition to measuring RH levels, the RHP-NW can also measure Temperature, Dew Point temperature and grains per ground (grams per kilo) humidity ratio. The RHP-NW has a Relative Humidity range of 0 to 100%, temperature range of -40°C to 80°C and temperature accuracy of ± 0ºC to 90.ºC

App available for Android and iOS

Bluetooth connectivity to the Tramex Meters App allows for visualisation of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

Heavy-duty pin-type wood probe

This hammer probe allows the user to carry out destructive moisture measurement on wood using the Tramex CME5 Concrete Moisture Meter.

200mm (7.8") insulated pins for in-depth penetration

These penetrative pins help assess moisture levels deep within a range of materials, thus providing a more comprehensive picture of water damage.

Hygro-i2 Probe Hole liners

In order to make the Hygro-i2 RH Probe fit into drilled holes, a hole liner must be inserted. These can be capped for re-use at a later point.

Calibration Check Salts

These salts are supplied to calibrate the Hygro-i2 RH Probe by providing a constant 75% RH in the chamber.

IRT2 Infrared Thermometer

The IRT2 is a handheld, dual laser, non-contact Infrared Thermometer with 12:1 distance to spot ratio and audible and visible high/low set point alarms. It is used to measure and display surface temperatures within the range of -50°C to 650°C (-58ºF to 1202ºF) and has an accuracy of approximately 1 to 1.5%

E5-HBS Extension Handle

Designed for use with the Tramex ME5 and CME5 moisture meters, use this accessory to perform tasks in high places, or even low to the ground as the extendable handle also reduces the need for crouching or kneeling. The handle has a minimum length of 30cm before extending up to 80cm.

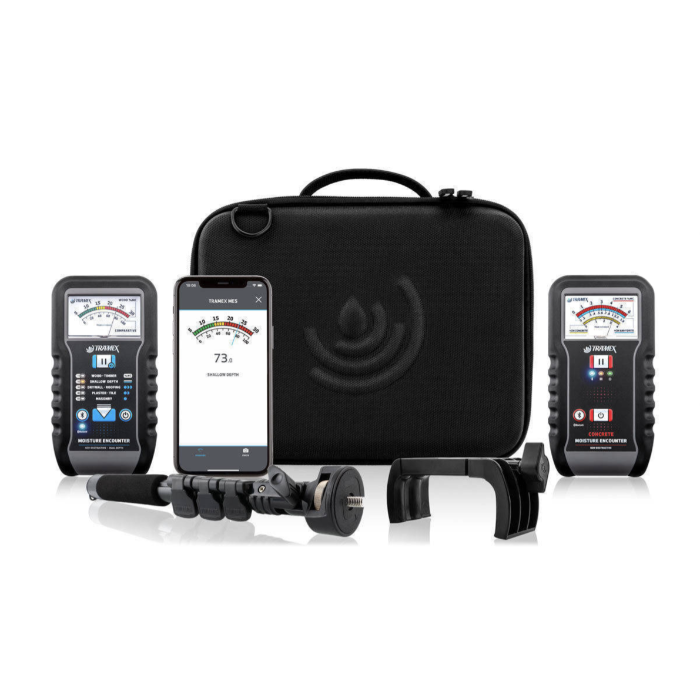

Tramex Water Damage Restoration Tech Kit Includes:

• ME5 Moisture Encounter 5
• CME5 Concrete Moisture Encounter 5
• Free App available for Android and iOS
• Extension Handle

Part number: WDTK

Tramex Water Damage Restoration Inspector Kit Includes:

• CMEX5 Concrete Moisture Encounter X5
• ME5 Moisture Encounter 5
• DL-RHTX Feedback Datalogger
• Free App available for Android and iOS
• Heavy-duty pin-type wood probe
• 200mm (7.8") insulated pins for in-depth penetration
• RHP-SNWB 127mm (5") Short narrow Relative Humidity probe
• Calibration Check Salts.
• IRT2 Infrared Thermometer
• E5-HBS Extension Handle

Part number: WDIK

Tramex Water Damage Restoration Master Kit Includes:

• CMEX5 Concrete Moisture Encounter X5
• ME5 Moisture Encounter 5
• DL-RHTX Feedback Datalogger
• Free App available for Android and iOS
• Heavy-duty pin-type wood probe
• 200mm (7.8") insulated pins for in-depth penetration.
• RHP-NWB 260mm (10") Narrow Relative Humidity Probe
• 1 x Hygro-i2 Relative Humidity probe.
• Hole liners
• Calibration Check Salts
• IRT2 Infrared Thermometer
• E5-HBS Extension Handle

Part number: WDMK

Tramex Water Damage Restoration Master X Kit Includes:

• Tramex CMEX5 Concrete Moisture Encounter X5
• Tramex Encounter MEX5 Moisture and Humidity Meter
• DL-RHTX Feedback Datalogger
• Free App available for Android and iOS
• Heavy-duty pin-type wood probe
• 200mm (7.8") insulated pins for in-depth penetration.
• RHP-NWB 260mm (10") Narrow Relative Humidity Probe
• 1 x Hygro-i2 Relative Humidity probe.
• Hole liners
• Calibration Check Salts
• IRT2 Infrared Thermometer
• E5-HBS Extension Handle

Part number: WDMK-X
