Trend SignalTEK QT Pro 10G Copper & Fibre Qualification Tester - R166001

Trend Networks
SKU: TRENDR166001
  • Qualify links from 10Mb/s to 10Gb/s (copper) and up to 100Gb/s (fibre) using multimode and single-mode SFP+ modules
  • Features built-in VFL with universal 2.5mm and FC Adapter
  • Compatible with Trend AnyWARE Cloud Management System
More Info
In Stock - Available Next Day

Simply register your new device on TREND AnyWARE Cloud, sync your dashboard, and your free kickstand will be shipped directly to you!
(exclusive to registered users in the UK, EU and North America.)

Visit trend-networks.com/dependonusrewards to claim your FREE Depend On Us Rewards!
– Limited Time Only: from 1st October 2025 to 31st January 2026 –

TRADE-IN OFFERS AVAILABLE:
SignalTEK NT, CT, and 10G owners can benefit from a discount on a new SignalTEK QT 10G or QT Pro 10G. Please contact us for more information.



Trend SignalTEK QT Pro 10G Copper & Fibre Qualification Tester (R166001)

The Trend SignalTEK QT Pro 10G Copper & Fibre Qualification Tester is an all-in-one 10G network tester designed for IT professionals, network installers, and engineers who work with LAN infrastructure. It enables fast and accurate qualification of copper, fibre, and Wi-Fi networks. Built to meet today’s evolving high-speed data demands, the SignalTEK QT Pro ensures that structured cabling can support Ethernet speeds ranging from 10Mb/s up to 10Gb/s on copper and up to 100Gb/s on fibre.

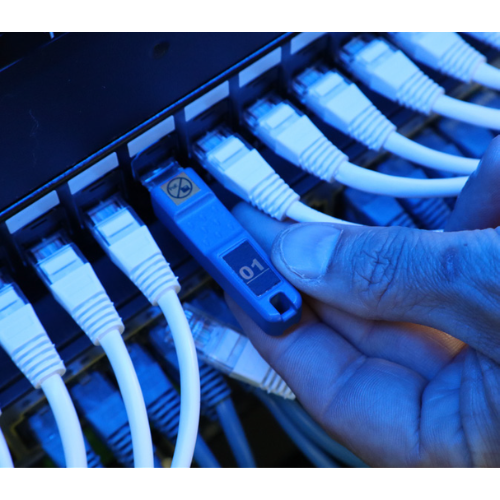

Copper Qualification

The SignalTEK QT Pro qualifies copper links with speeds ranging from 10Mb/s up to full 10Gb/s speeds, including Multi-Gig options like 2.5Gb/s and 5Gb/s. It performs key diagnostics such as NEXT, Return Loss, and Insertion Loss, with intuitive pass/fail results displayed on a large touchscreen interface. The built-in TDR provides accurate fault location and distance-to-fault measurement, while the Live Wiremap function provides instant visual confirmation of wiring issues before running full autotests.

Fibre Qualification

For fibre optic testing, the SignalTEK QT Pro supports link qualification up to 100Gb/s as per the IEEE 802.3 standards. It makes use of high-stability multimode and single-mode SFP+ modules to measure insertion loss and fibre length. The SignalTEK QT Pro boasts a built-in VFL with 2.5mm and 1.25mm (LC) connectors to identify breaks and bends. The optional support for a fibre inspection microscope allows automated Pass/Fail grading of connectors to IEC 61300-3-35 standards.

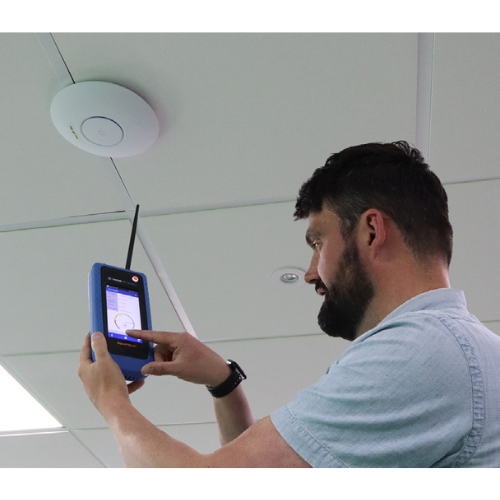

Wi-Fi Qualification

For Wi-Fi diagnostics, the SignalTEK QT Pro uses both internal and external antenna support, identifies access points, evaluates channel usage, checks for interference, and locates hidden APs using directional antennas. The signal strength indicators and access point scan results allow users to optimise Wi-Fi layouts for better performance and coverage. Additionally, users can conduct standard network diagnostics such as ping, traceroute, and device discovery across Wi-Fi, copper, or fibre connections.

Other features include PoE testing up to 90W (802.3 af/at/bt), VLAN identification, switch port info retrieval, an intuitive user interface, a high-capacity battery that offers up to 10 hours of operation, and internal storage for up to 2,500 test results.

TREND AnyWARE Cloud Management System

TREND AnyWARE Cloud is a powerful cloud-based management platform designed to support the SignalTEK QT series and other TREND Network tools like LanTEK, FiberTEK IV, SignalTEK 10G, PoE PRO, and VDV II. It enables seamless collaboration, documentation, and project management across teams, no matter where they are located. The TREND AnyWARE Cloud is compatible with PCs, Macs, Android and iOS devices. With it, project managers are able to pre-reconfigure test jobs, view real-time test data, and assist technicians in the field via TeamViewer, resulting in faster troubleshooting and fewer call-backs.

Test results are automatically synced to the Microsoft Azure cloud, where teams create professional PDF reports, share links (instead of bulky email attachments), and attach project files such as cable layouts, photos, and videos. With both local and cloud storage for up to 2,500 results, teams are able to maintain full traceability for quality assurance, customer records, and warranty claims.

The Cloud Management Software also boasts a fleet management dashboard that shows which testers are in use, by whom, when they were last synced, and whether firmware updates are available. Software updates are installed directly from TREND AnyWARE Cloud using Wi-Fi or wired Ethernet, allowing for testers to be updated even when in the field without the need for a PC or special software.

Difference between SignalTEK QT and SignalTEK QT Pro

Features SignalTEX QT Pro (R166001) SignalTEX QT (R166002)
Copper cable length and TDR fault location with support for up to 12 remotes ✔ ✔
Fibre cable length ✔
Copper qualification -10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s ✔ ✔
Fibre attenuation (dB loss) ✔
Integrated visual fault locator (VFL) with 2.5mm connector and 1.25mm (LC) adapter. Steady and flashing operating modes ✔
Fibre optic connector inspection microscope Pass/Fail testing to IEC 61300-3-35 Optional
Switch port info: speed, name, port number, address Copper, Fibre Copper
Wi-Fi AP scan with conflict check and Wi-Fi signal strength ✔ ✔
Wi-Fi site scan with AP information, channel map, Tx/Rx rates, channel utilization, AP location with external antenna ✔
Live Wiremap ✔ ✔
Network diagnostics: ping, traceroute, device discovery, switch port info, number, port utilisation history Copper, Fibre, Wi-Fi Copper
Identify top VLAN IDs (levels 1-3) ✔
PoE load test: 802.3 af/at/bt up to 90 watts ✔ ✔
Interface ports

RJ45 test port, ext. Wi-Fi antenna, SFP+, VFL, wired Ethernet, 2 x USB A, USB C

 RJ45 test port, wired Ethernet, 2 x USB A, USB C
Touchscreen ✔ ✔
Internal storage for 2,500 test results ✔ ✔
Project management, test pre-configuration, results storage and upload/download, PDF reporting Trend AnyWARE Cloud Trend AnyWARE Cloud
TeamViewer® and VNC remote control ✔ ✔
Bundles offering and trade-in options ✔ ✔

Trend Network part number: R166001

Key Features

  • Qualify links from 10Mb/s to 10Gb/s (copper) and up to 100Gb/s (fibre) using multimode and single-mode SFP+ modules
  • TDR and Livewire map functions before autotests
  • PoE tests up to 90W (802.3 af/at/bt) with pass/fail indication
  • Includes ping, traceroute, VLAN ID identification, switch port info, and IP conflict detection
  • 2.5mm Built-in fault locator and 1.25mm LC support
  • Large, intuitive touchscreen interface
  • Internal and external Wi-Fi antenna
  • Up to 10 hours of operation with 54Wh Li-ion battery
  • Onboard storage for 2,500 results
  • Integrated TREND AnyWARE cloud

What's In The Box?

  • Trend SignalTEK QT Pro 10G Copper & Fibre Qualification Tester with Wi-Fi (internal and external antennas)
  • Soft carry case
  • 1 x plug (male) copper remote – ID #1
  • 1 x socket(female) copper remote – ID #1
  • 1m Cat 6A shielded patch cord
  • 1 x 850nm MM high stability SFP module
  • 1 x LC-LC and 1 x LC-SC OM3 MM duplex patch cords
  • 1 x LC and 1 x SC multimode fibre loopback remotes
  • 2.5 & 1.25mm fibre cleaning pen
  • USB-C charger with changeable plugs
Specification
For comprehensive specifications, see the attached datasheet.
