Trend Tone & Probe Kit - R180000

Trend Networks
SKU: TRENDR180000
  • Capable of cable tracing for Data, COAX and telephone line testing
  • Suitable for identifying specific wire pairs in multi-pair cables
  • Troubleshoot cabling faults and identify breaks or poor cables
More Info
In Stock - Available Next Day

Save up to 30% on TREND Networks products: Tone & Probe, VDV II, VDV II Plus, VDV II Pro, PoE Pro and FiberMASTER Mini OTDR.
Discounts are already applied to the price displayed. Promotion ends on 30th April 2024.

Trend Tone & Probe Kit - R180000

The Trend Tone & Probe Kit (R180000) is a purpose built instrument set ideal for tracing all types of copper cables. Utilising a highly sensitive probe and high-level power output, this kit provides cable tracing you can depend on whatever the distance. Rapidly locate weak signals with both audible & visual indication and solve issues with power supply for external talk sets.

Example Applications

  • Cable tracing for Data, Telephone and COAX
  • Identify specific pairs of wires in a multi-pair cable
  • Troubleshoot cabling faults to identify breaks & poor cables
  • Telephone Line Testing

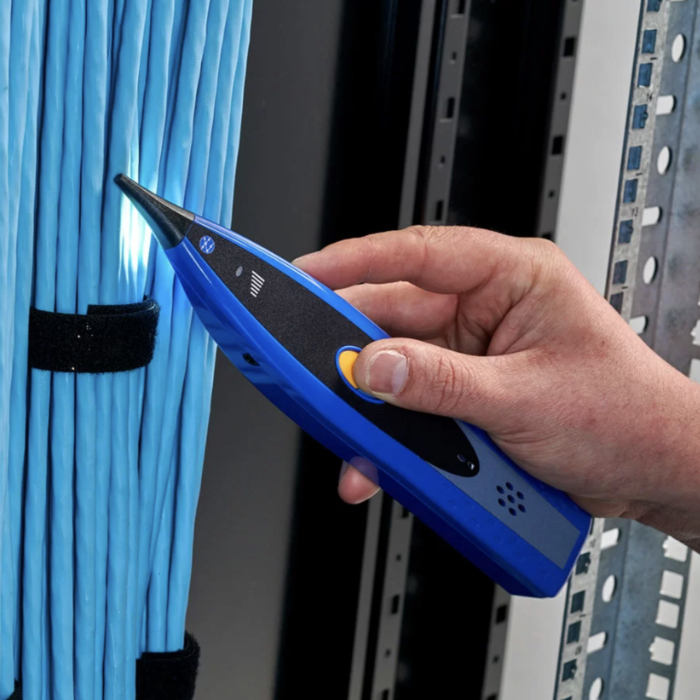

Trend Amplifier Probe

The Trend Amplifier Probe features a visual signal strength LED scale and high output speaker with customisable volume & sensitivity control. A built-in headphone jack is ideal for noisy environments whilst the included LED torch provides light in dimly lit areas. The replaceable tip of the Trend Probe ensures ongoing accuracy and low battery indication alerts the user to a necessary battery replacement. Find cabling fast using this powerful visual signal indicator and speaker combination.

Trend Tone Generator

Equipped with comprehensive line testing features for troubleshooting and service verification, the Trend Tone Generator can swiftly perform polarity and continuity tests. Simple to use and requiring no training, large Test Mode Selection and Tone Pattern Selection Buttons are combined with clear Tone Pattern Indicator, Low Battery Indication & Line Status LEDs.

The Tone and Probe Kit creates the perfect team to accurately identify data cable pairing via its multiple tone pattern feature. Tone & Probe is compatible with the following TREND Networks series of products:

  • LanTEK IV, III & II
  • LanXPLORER Pro
  • SignalTEK
  • NaviTEK
  • PoE PRO
  • VDV II

Key Features

  • Highly sensitive probe
  • Locate cables even over long distance
  • Visual indication given through intuitive LED scale
  • Audible indication provided via speaker
  • Built-in headphone jack
  • Incorporated LED head light
  • Power output for tracing longer cables
  • Power supply for external talk sets
  • Polarity test
  • Continuity test
  • Tone Pattern Indicator LED
  • Line Status LED
  • Tactile interface
  • Portable, compact design
  • Replaceable tip
  • Carry strap tether
  • Battery powered
  • Low battery indication LED

Trend part number: R180000

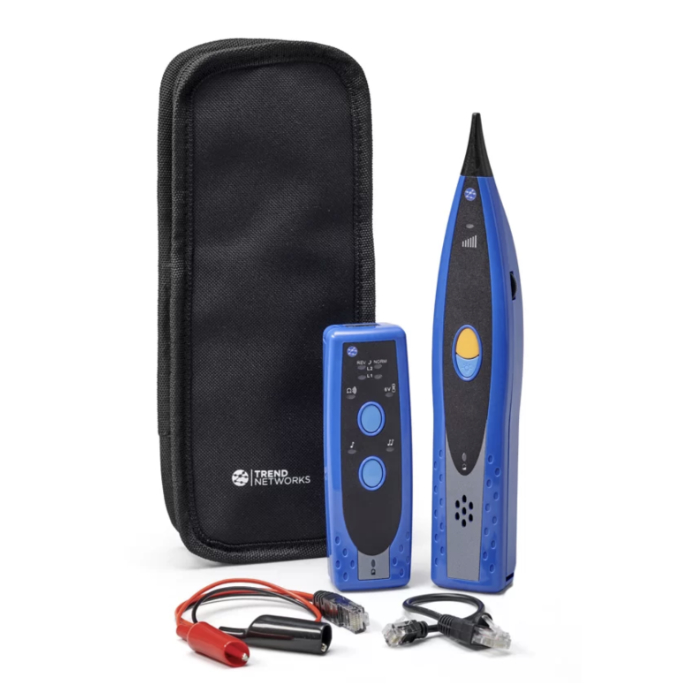

What's In The Box?

  • Trend Amplifier Probe
  • Trend Tone Generator
  • RJ45 to RJ11 Cable
  • Crocodile to RJ45 Patch Cord
  • Carry Case
  • 2 x Carry Strap
  • Probe User Guide
  • Tone Generator User Guide
Specification

Probe Specifications

  • Operating temperature: -20 °C to +60 °C
  • Storage temperature: -40 °C to +70 °C
  • Humidity: 5 % to 95 % non-condensing
  • Weight: 123g
  • Dimensions: 128(L) x 43(W) x 30(H)
  • Safety: IEC 61010-1, Category none, 30 V rms max
  • Battery: 9V alkaline
  • Operation time: 50 hours typical

Tone Generator Specifications

  • Port: RJ45 socket (pin 4&5 Line 1, Pin 3&6 Line 2)
  • Functions: Tone, Continuity, battery supply, line status (polarity, DC & Ringing Voltage)
  • Tone frequency: Alternating f1= 982.5 Hz, f2 =1312.5 Hz
  • Output Power: ≥ +10dBm @ 600 Ω
  • Output Voltage on continuity mode: 6-8 V DC
  • Talk battery power supply: 6.0 V DC
  • Battery: 9 V alkaline
  • Auto power off: 3 hours
  • Operation time: 70 hours typical
  • Operating Temperature: -20 °C to +60 °C
  • Storage Temperature: -40 °C to +70 °C
